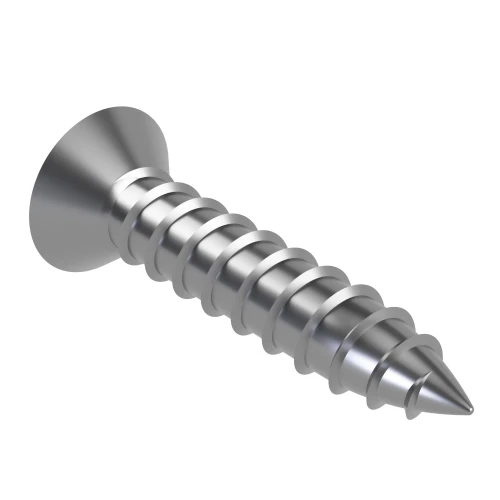

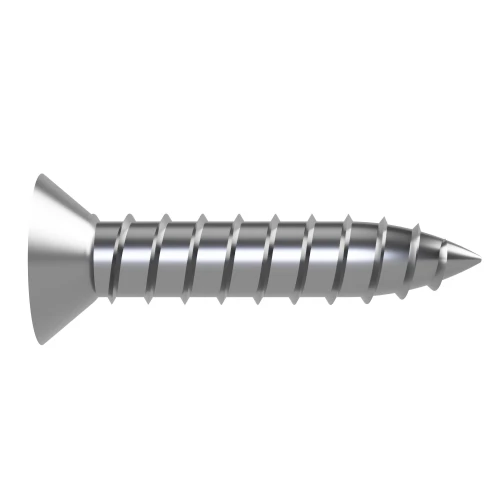

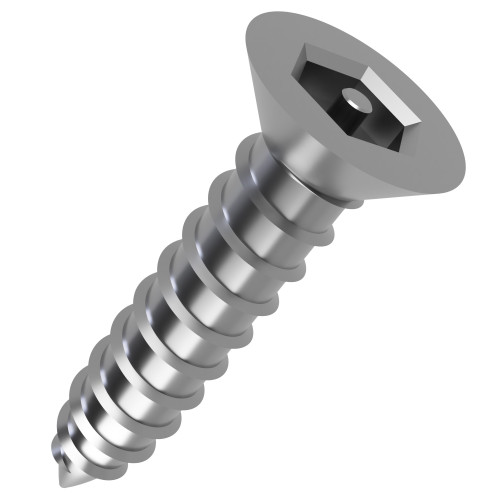

4.8mm x 16mm Pin Hex Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.09 |
| 100 - 499 | £0.06 | £0.07 |
| 500 - 999 | £0.05 | £0.06 |
| 1000 + | £0.03 | £0.03 |
£0.09 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Length | 16.0mm |
| Head Diameter | 9.3mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Pin Hex |
| Drive | Security HM3 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.8mm x 16mm Pin Hex Countersunk AB Self Tapping Screw | A2 Stainless Steel
Manufactured for signage use, this 4.8mm x 16mm countersunk panel screw gives a practical self tapping option for securing control cabinet fittings without a separate nut.
The Pin Hex drive supports positive tool engagement while the non-standard security countersunk geometry helps the head sit cleanly after tightening. A2 stainless steel supports corrosion resistance and consistent performance in signage work where controlled tightening is required.
Common Applications
- Building fabricated assemblies
- Fixing metal back plates
- Fastening machine guards
- Fixing folded sheet parts

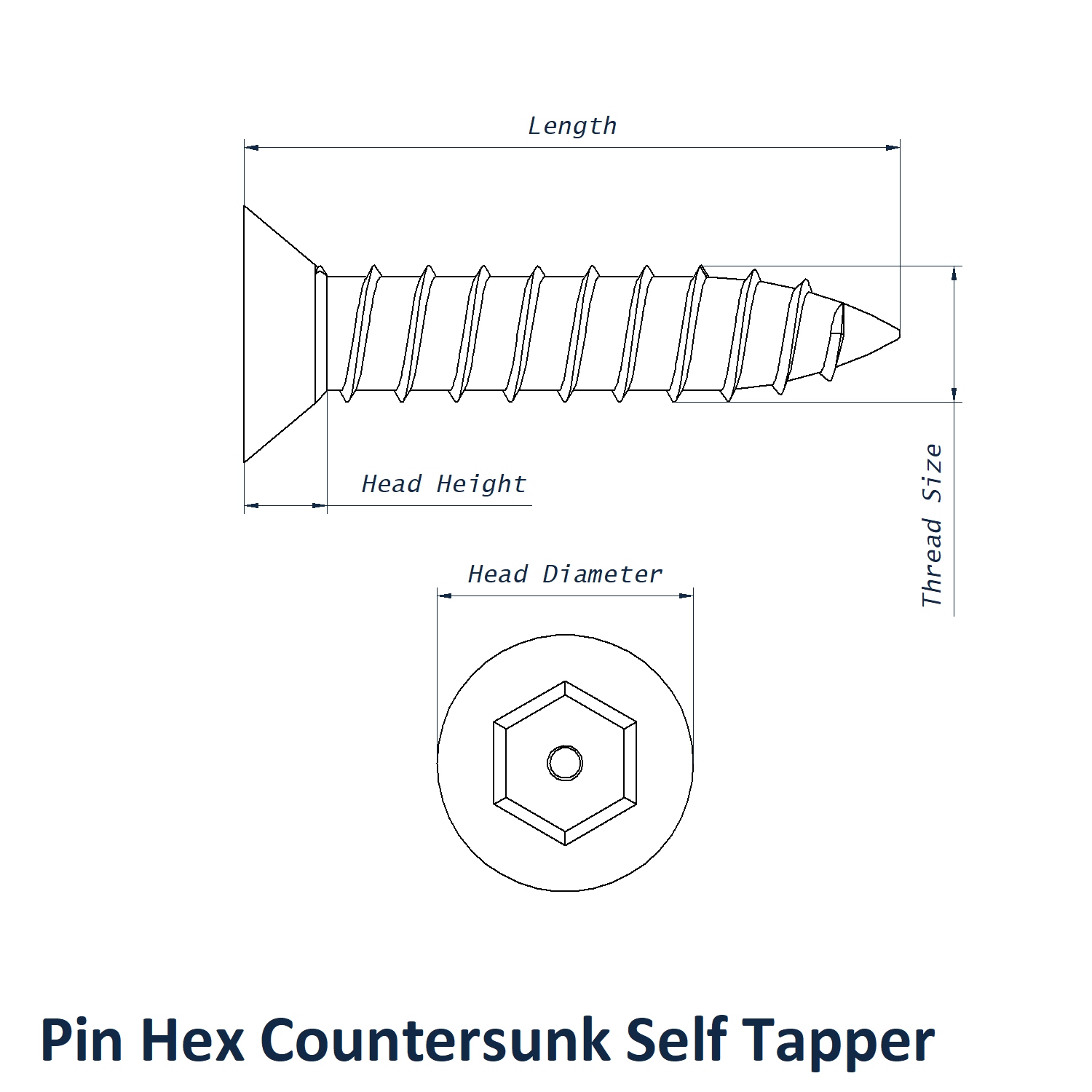

4.8mm x 16mm Pin Hex Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 16mm
- Head Diameter: 9.3mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security HM3
- Drive Type: Pin Hex
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
