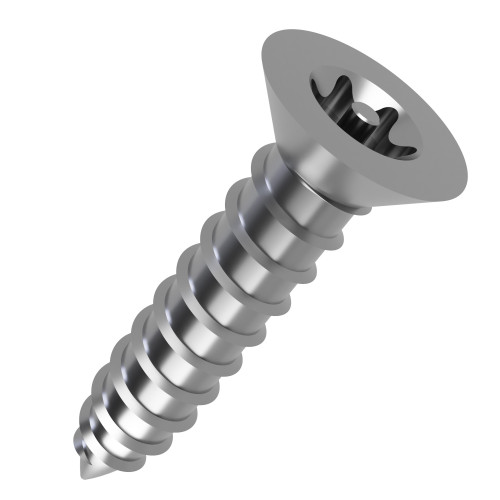

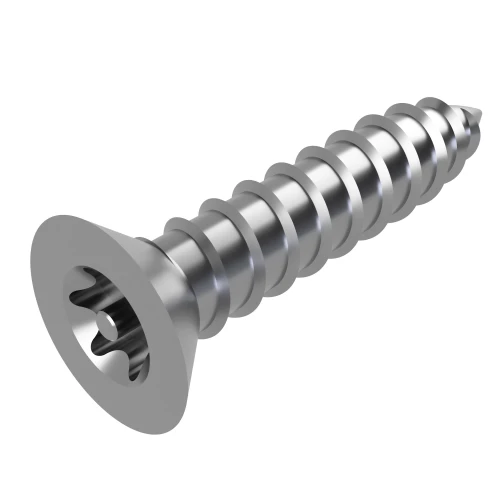

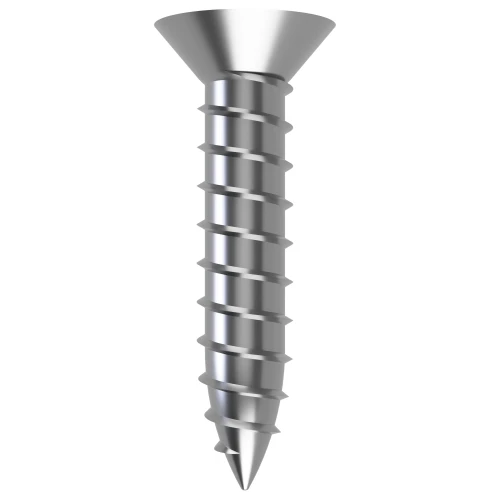

4.8mm x 75mm Pin Torx Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.93 | £1.11 |
| 100 - 499 | £0.89 | £1.07 |
| 500 - 999 | £0.78 | £0.93 |
| 1000 + | £0.38 | £0.45 |
Product Specification
| Thread Size | 4.8mm |
| Length | 75.0mm |
| Head Diameter | 9.3mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Pin Torx |
| Drive | Security T25 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
4.8mm x 60mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
Total Price: £0.00
4.8mm x 75mm Pin Torx Countersunk AB Self Tapping Screw | A2 Stainless Steel
A useful screw for marine equipment, this 4.8mm x 75mm equipment cover screw assists with mounting steel blanking plates while keeping the head profile low.
A countersunk profile reduces surface protrusion and the AB point helps create a secure thread path in suitable pilot holes. A2 stainless steel supports corrosion resistance and consistent performance in marine equipment work where positive drive engagement is required.
Common Applications
- Joining aluminium sections
- Securing service access plates
- Fixing metal back plates
- Attaching panel stiffeners

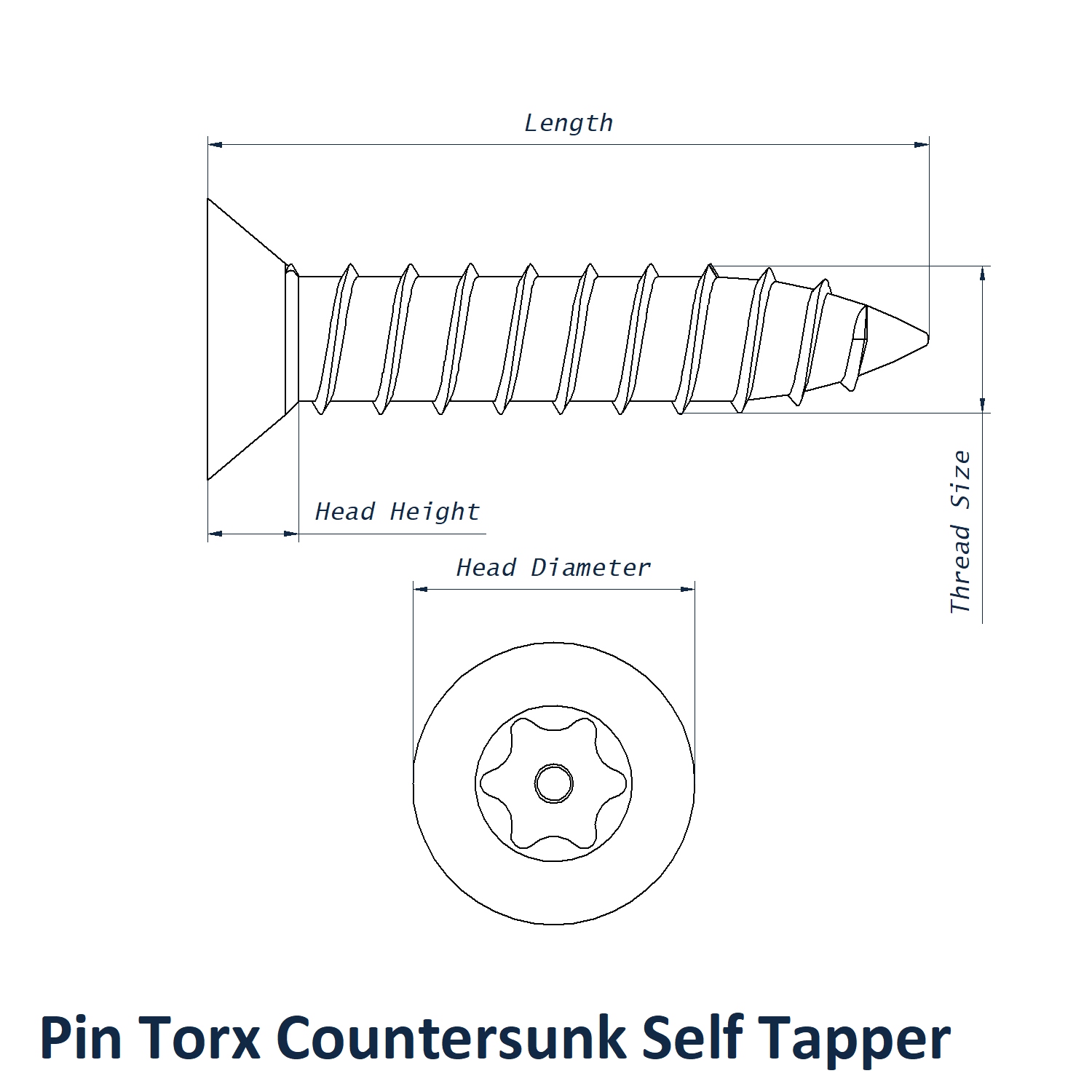

4.8mm x 75mm Pin Torx Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 75mm
- Head Diameter: 9.3mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security T25
- Drive Type: Pin Torx
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
