M10 (13.0mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

Product code: SHOU923-M10-16-A1
View All Specifications
M10 (13.0mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M10 (13.0mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M10 (13.0mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M10 (13.0mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M10 (13.0mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M10 (13.0mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 24 £4.12 £4.94
25 - 49 £3.52 £4.23
50 - 99 £2.94 £3.53
100 - 499 £2.35 £2.82
500 - 999 £2.12 £2.54
1000 + £1.98 £2.37

£4.94 / each


Up to 225 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
225 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10
Thread Pitch 1.50mm
Shoulder Diameter 13.0mm
Shoulder Length 16.0mm
Thread Length 13.5mm
Head Diameter 20.0mm
Head Height 4.8mm
Drive Slotted
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 13mm Shoulder, 16mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

Designed with a cylindrical shoulder between the head and machine thread, this A1 Stainless Steel DIN 923 bolt provides a 16.0mm shoulder at 13.0mm diameter. Its M10 threaded end fixes the part in place and the shoulder can support a suitable pivoting or spacing component. Its 20.0mm pan head has a 4.8mm head height.

What Are Slotted Pan Head Shoulder Bolts?

Also referred to as shoulder screws, DIN 923 fasteners use a smooth cylindrical section to position a connected item independently of the threaded engagement. For this version, the working shoulder is 13.0mm in diameter and 16.0mm long with a M10 thread. For replacement work, match both shoulder measurements as well as the machine thread.

Common Applications

  • Control mechanisms: Locating levers or small linkages on the unthreaded section.
  • Machinery brackets: Attaching components with a separate thread and smooth bearing section.
  • Alignment fixtures: Positioning parts against a specified shoulder diameter in a purpose-made assembly.
  • Repair work: Replacing a stepped shoulder fixing with matching thread and head geometry.

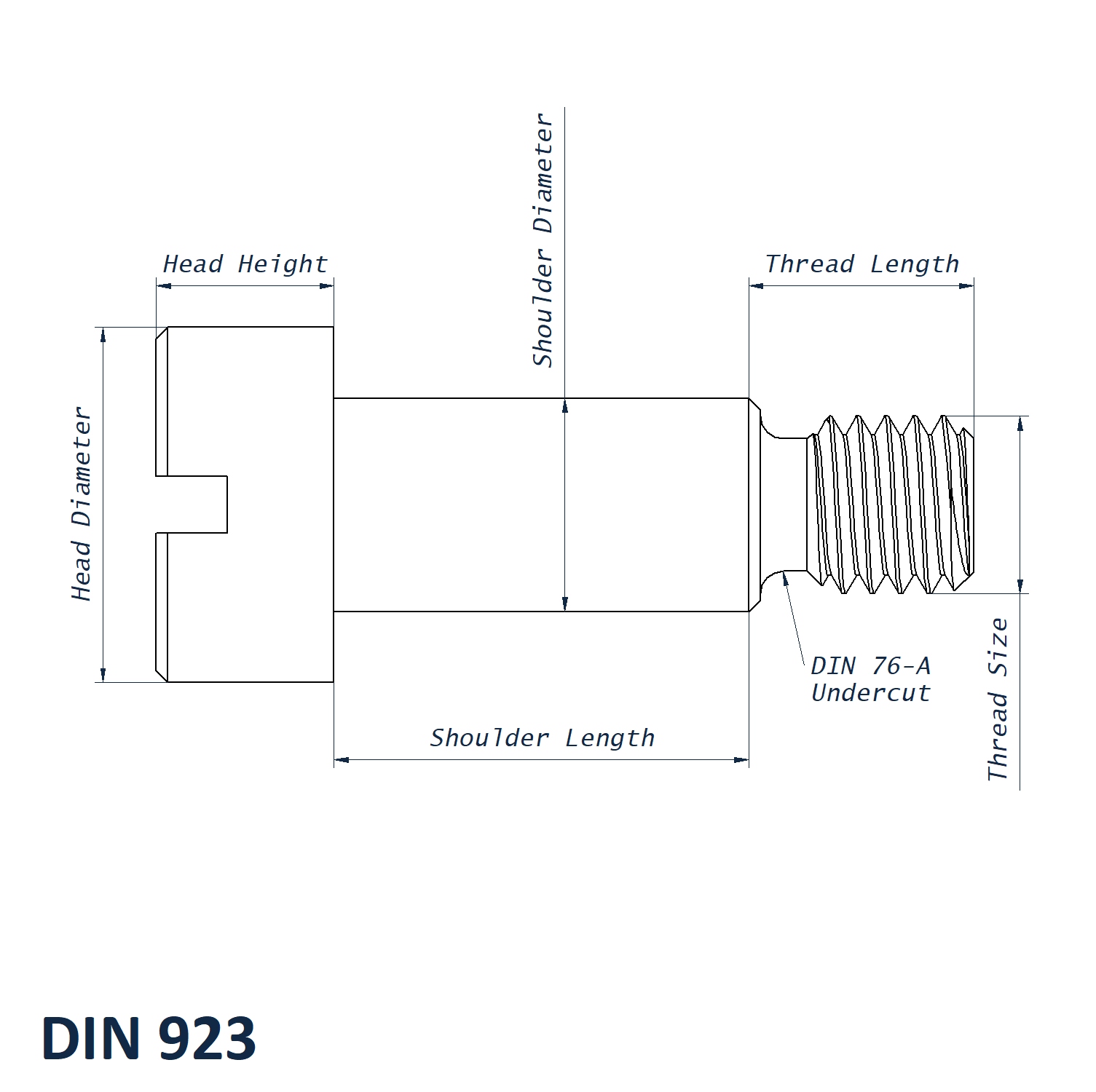

M10 x 13mm Shoulder, 16mm Slotted Shoulder Bolt Dimensions

  • Thread Size: M10
  • Thread Pitch: 1.50mm
  • Shoulder Diameter: 13.0mm
  • Shoulder Length: 16.0mm
  • Thread Length: 13.5mm
  • Head Diameter: 20.0mm
  • Head Height: 4.8mm
  • Drive: Slotted
  • Material: A1 Stainless Steel

Key Benefits

  • Plain cylindrical section is suited to locating matching pivot or guide components.
  • Slotted drive allows assembly and removal with a flat-blade tool.
  • The M10 threaded section can secure the shoulder bolt independently of the locating section.
  • Specified 13.0mm by 16.0mm shoulder dimensions support accurate component selection.

Compare more DIN 923 stepped shoulder bolts for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.

Please call for any enquiries!
