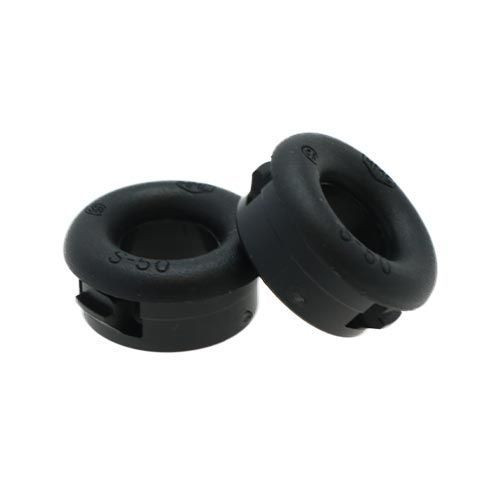

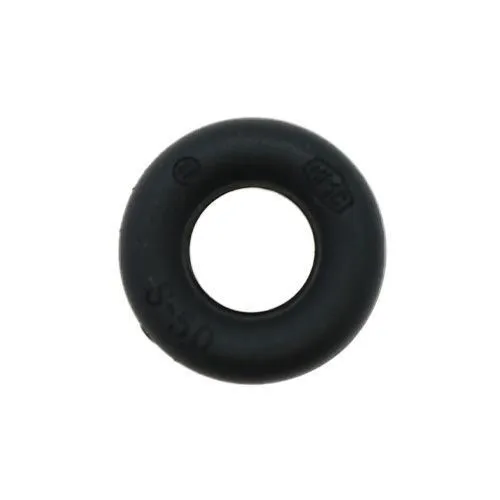

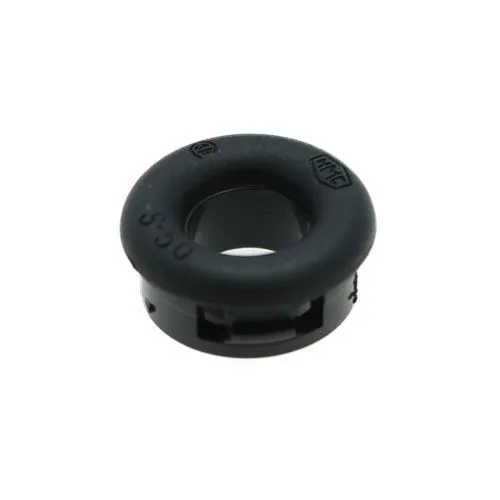

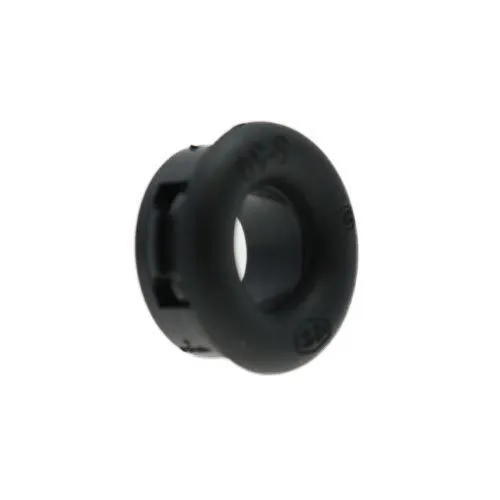

27.8mm Smooth Bore Bushing (Snap Fit) - 16mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.66 | £0.79 |
| 250 - 499 | £0.55 | £0.66 |
| 500 - 999 | £0.45 | £0.54 |
| 1000 - 2499 | £0.34 | £0.41 |
| 2500 - 4999 | £0.29 | £0.35 |
| 5000 + | £0.23 | £0.28 |
Product Specification
| To Fit Hole Diameter | 27.8mm |
| Max Panel Thickness | 3.2mm |
| Internal Diameter | 16mm |
| Material | Nylon |
| Head Diameter | 30.7mm |
| Length | 13.1mm |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
27.8mm Smooth Bore Bushing | 16mm Internal Diameter | Black Nylon
This large smooth bore cable bushing provides a smooth, rounded entry point for larger panel openings, fitting a 27.8mm hole with a 16mm cable or shaft clearance.
The larger head diameter helps mask the panel edge, while the black Nylon material gives a consistent finish for electrical, mechanical and OEM assemblies.
What Are Smooth Bore Bushings?
Smooth bore bushings are snap-fit panel bushes used to line a drilled or punched hole so cables, wiring, tubing or suitable rotating shafts can pass through more safely. The smooth internal bore reduces direct contact with exposed panel edges, while the locking fingers hold the bush in place after installation.
Common Applications
- OEM electrical builds with larger cable runs
- Wide cable pass-throughs in sheet metal
- Panel edge protection for assemblies
- Smooth bush protection for light rotating shafts

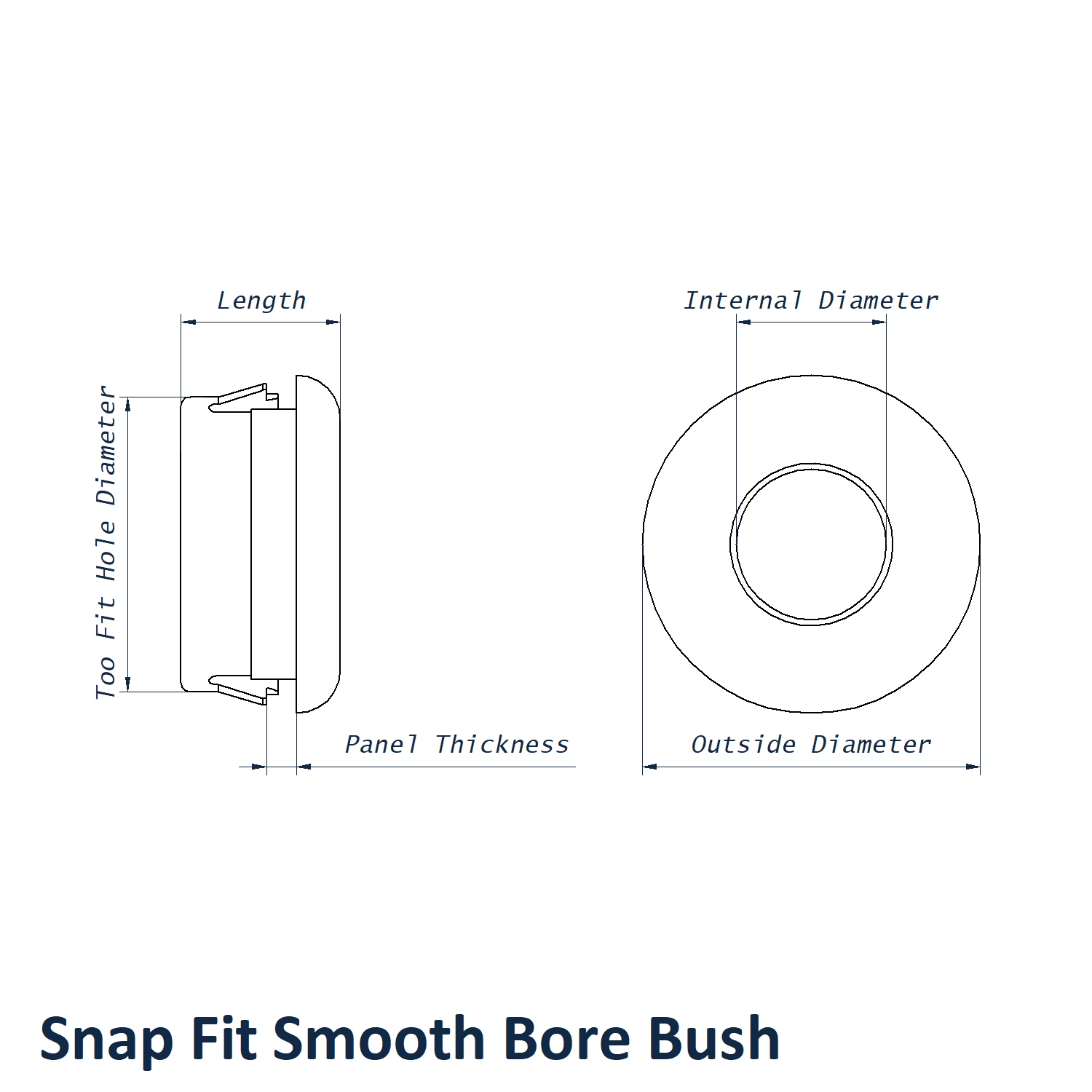

27.8mm x 16mm Smooth Bore Bushing Dimensions
- To Fit Hole Diameter: 27.8mm
- Max Panel Thickness: 3.2mm
- Internal Diameter: 16mm
- Head Diameter: 30.7mm
- Length: 13.1mm
- Material: Nylon
- Colour: Black
Smooth Bore Cable Protection
The wide bore and 30.7mm head diameter make this option suitable for larger cable exits where a clean finish and edge protection are both required.
These smooth bore cable bushings are manufactured from UL94V-2 rated Nylon 6/6 and are designed for snap-in panel installation. They are commonly chosen for cable insulation, abrasion reduction, anti-vibration support and applications where a smooth central bore is preferred over a split or toothed bush.
View our full Smooth Bore Bushings range.
Product Support and Trade Orders
For help checking hole size, cable clearance, panel thickness or bulk order suitability, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade requirements for production or maintenance use.
Fri 8.30 am - 3.30 pm
