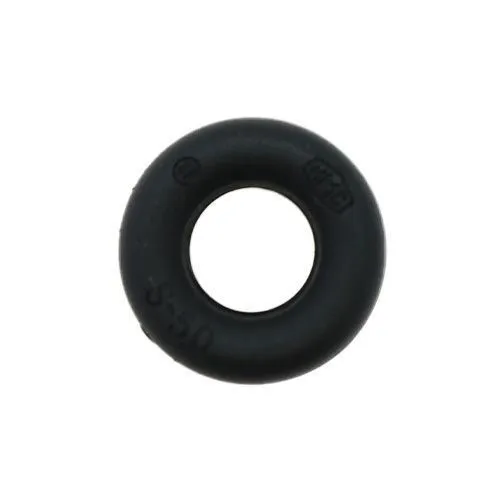

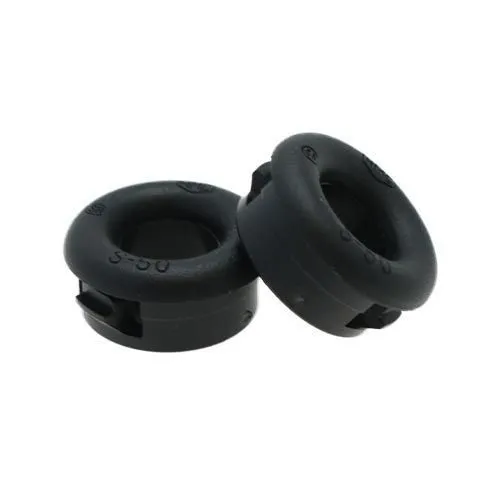

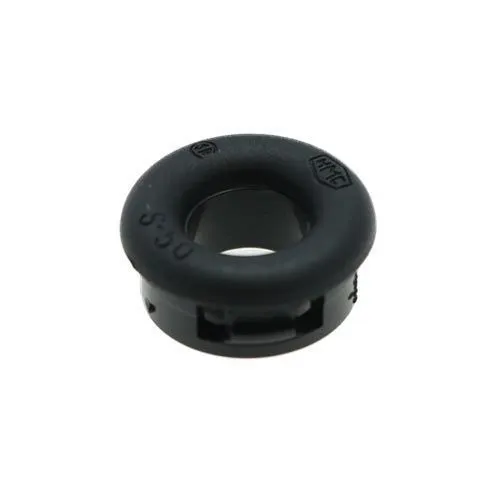

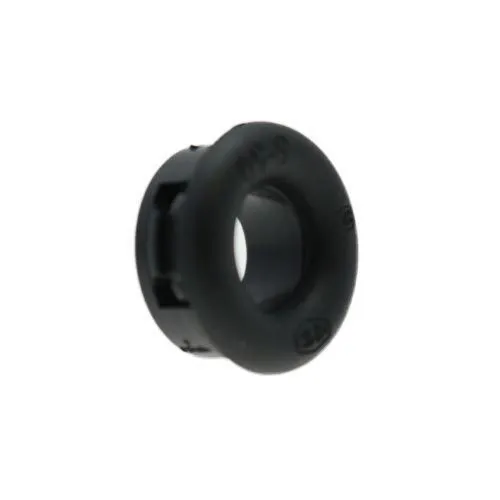

19.1mm Smooth Bore Bushing (Snap Fit) - 9.1mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.51 | £0.61 |
| 250 - 499 | £0.42 | £0.51 |
| 500 - 999 | £0.35 | £0.42 |
| 1000 - 2499 | £0.27 | £0.32 |
| 2500 - 4999 | £0.23 | £0.27 |
| 5000 + | £0.18 | £0.22 |
Product Specification
| To Fit Hole Diameter | 19.1mm |
| Max Panel Thickness | 3.2mm |
| Internal Diameter | 9.1mm |
| Material | Nylon |
| Head Diameter | 23.1mm |
| Length | 11.2mm |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
19.1mm Smooth Bore Bushing | 9.1mm Internal Diameter | Black Nylon
For punched or drilled panels requiring tidy edge protection, this smooth bore cable protector suits a 19.1mm hole and gives a 9.1mm smooth central opening.
Because the bore is smooth rather than split or toothed, this style is suitable for applications where cable movement, sleeve protection or rotating shaft clearance is important.
What Are Smooth Bore Bushings?
Smooth bore bushings are snap-fit panel bushes used to line a drilled or punched hole so cables, wiring, tubing or suitable rotating shafts can pass through more safely. The smooth internal bore reduces direct contact with exposed panel edges, while the locking fingers hold the bush in place after installation.
Common Applications
- HVAC control box openings
- Punched aluminium or steel panels
- Fabricated assembly cable exits
- Protecting wires from sharp rectangular cabinet cut-outs

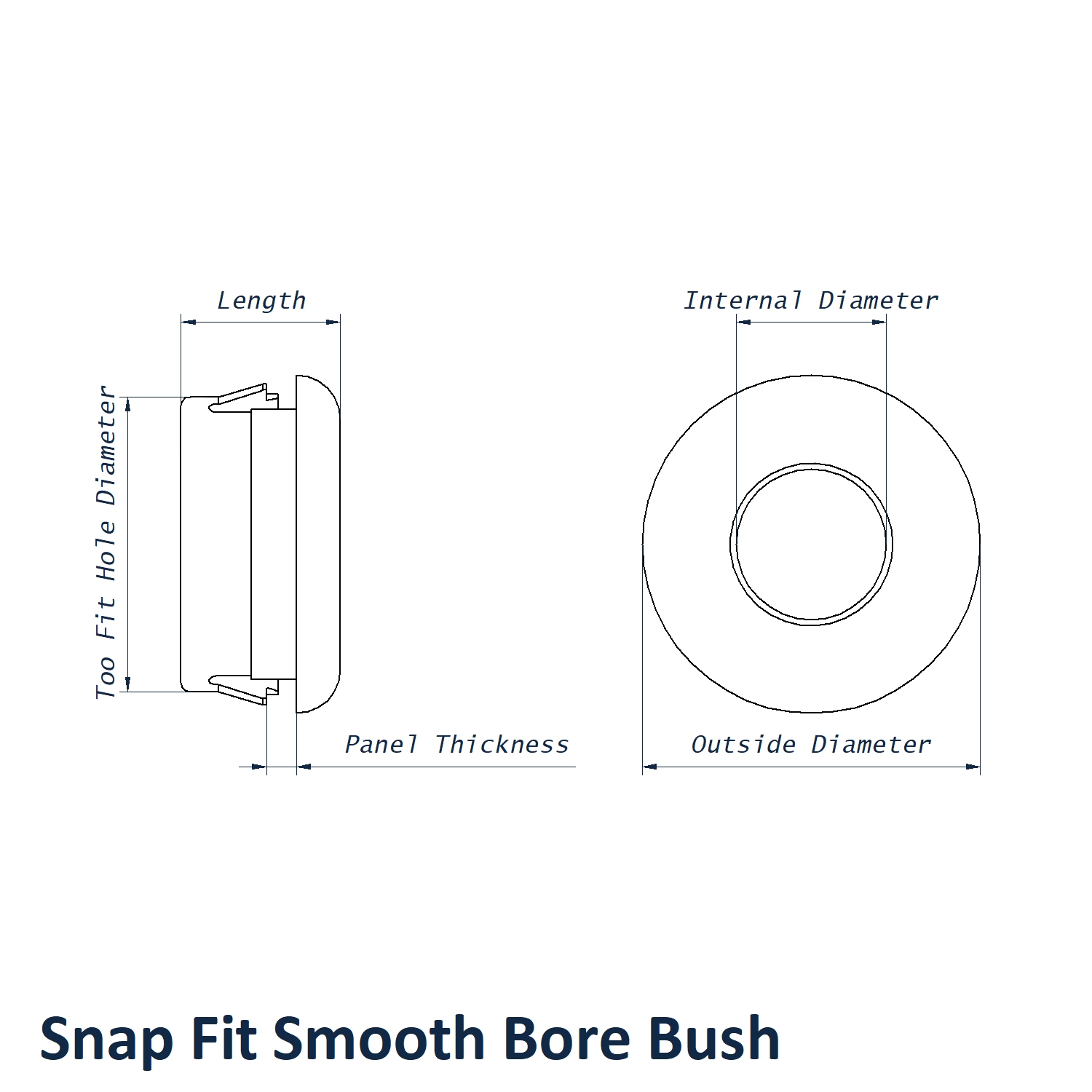

19.1mm x 9.1mm Smooth Bore Bushing Dimensions
- To Fit Hole Diameter: 19.1mm
- Max Panel Thickness: 3.2mm
- Internal Diameter: 9.1mm
- Head Diameter: 23.1mm
- Length: 11.2mm
- Material: Nylon
- Colour: Black
Smooth Bore Cable Protection
Its smooth bore profile is useful where wiring or small shafts may move through the opening, reducing the risk of snagging against unfinished panel material.
These smooth bore cable bushings are manufactured from UL94V-2 rated Nylon 6/6 and are designed for snap-in panel installation. They are commonly chosen for cable insulation, abrasion reduction, anti-vibration support and applications where a smooth central bore is preferred over a split or toothed bush.
View our full Smooth Bore Bushings range.
Product Support and Trade Orders
For help checking hole size, cable clearance, panel thickness or bulk order suitability, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade requirements for production or maintenance use.
