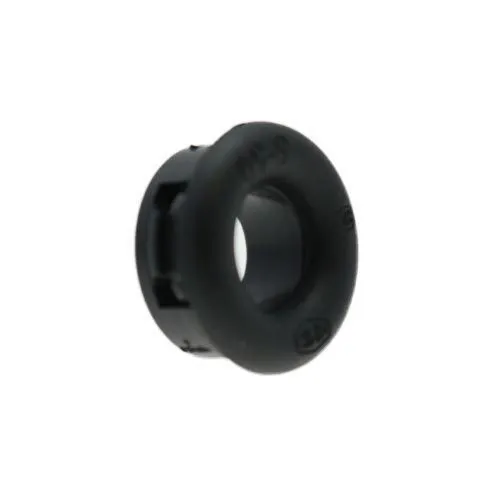

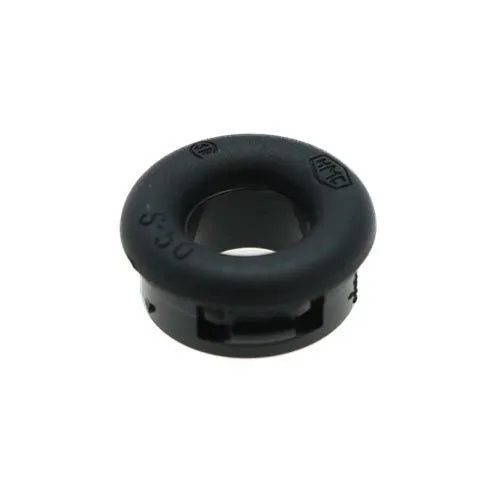

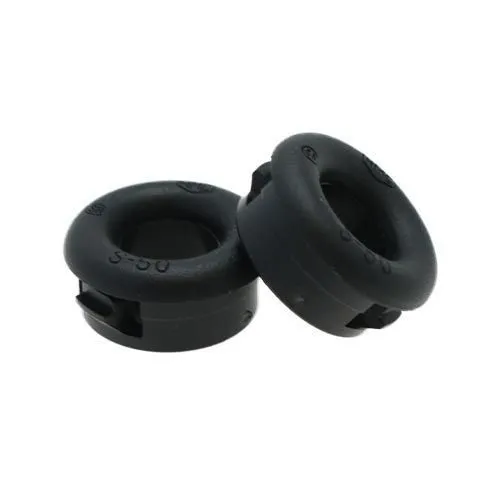

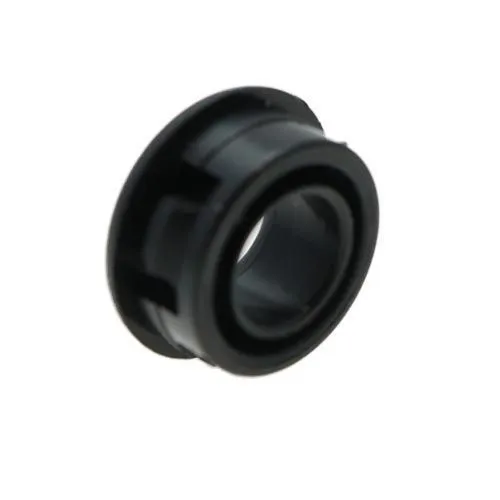

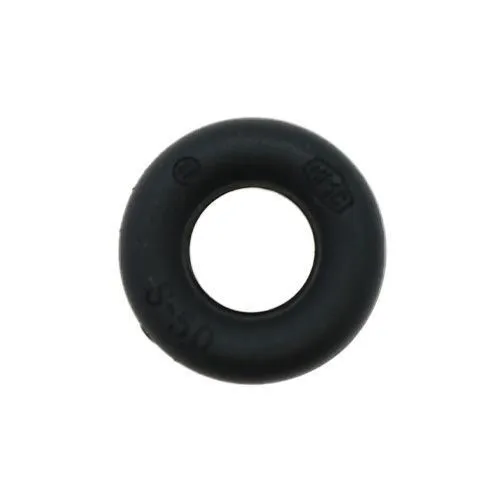

22.3mm Smooth Bore Bushing (Snap Fit) - 14.2mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.50 | £0.60 |
| 250 - 499 | £0.42 | £0.51 |
| 500 - 999 | £0.34 | £0.41 |
| 1000 - 2499 | £0.26 | £0.31 |
| 2500 - 4999 | £0.23 | £0.27 |
| 5000 + | £0.18 | £0.22 |
Product Specification
| To Fit Hole Diameter | 22.3mm |
| Max Panel Thickness | 3.2mm |
| Internal Diameter | 14.2mm |
| Material | Nylon |
| Head Diameter | 24.6mm |
| Length | 13.1mm |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
22.3mm Smooth Bore Bushing | 14.2mm Internal Diameter | Black Nylon
Offering a larger bore than smaller cable bushes, this black snap in panel bushing fits a 22.3mm aperture and supports a 14.2mm internal pass-through.
The raised head covers the panel opening neatly and the Nylon body helps provide insulation, anti-vibration support and protection against abrasion.
What Are Smooth Bore Bushings?
Smooth bore bushings are snap-fit panel bushes used to line a drilled or punched hole so cables, wiring, tubing or suitable rotating shafts can pass through more safely. The smooth internal bore reduces direct contact with exposed panel edges, while the locking fingers hold the bush in place after installation.
Common Applications
- Industrial machinery cable routes
- Rotating shaft clearance through light panels
- Large wire bundle protection
- Service panels on production equipment

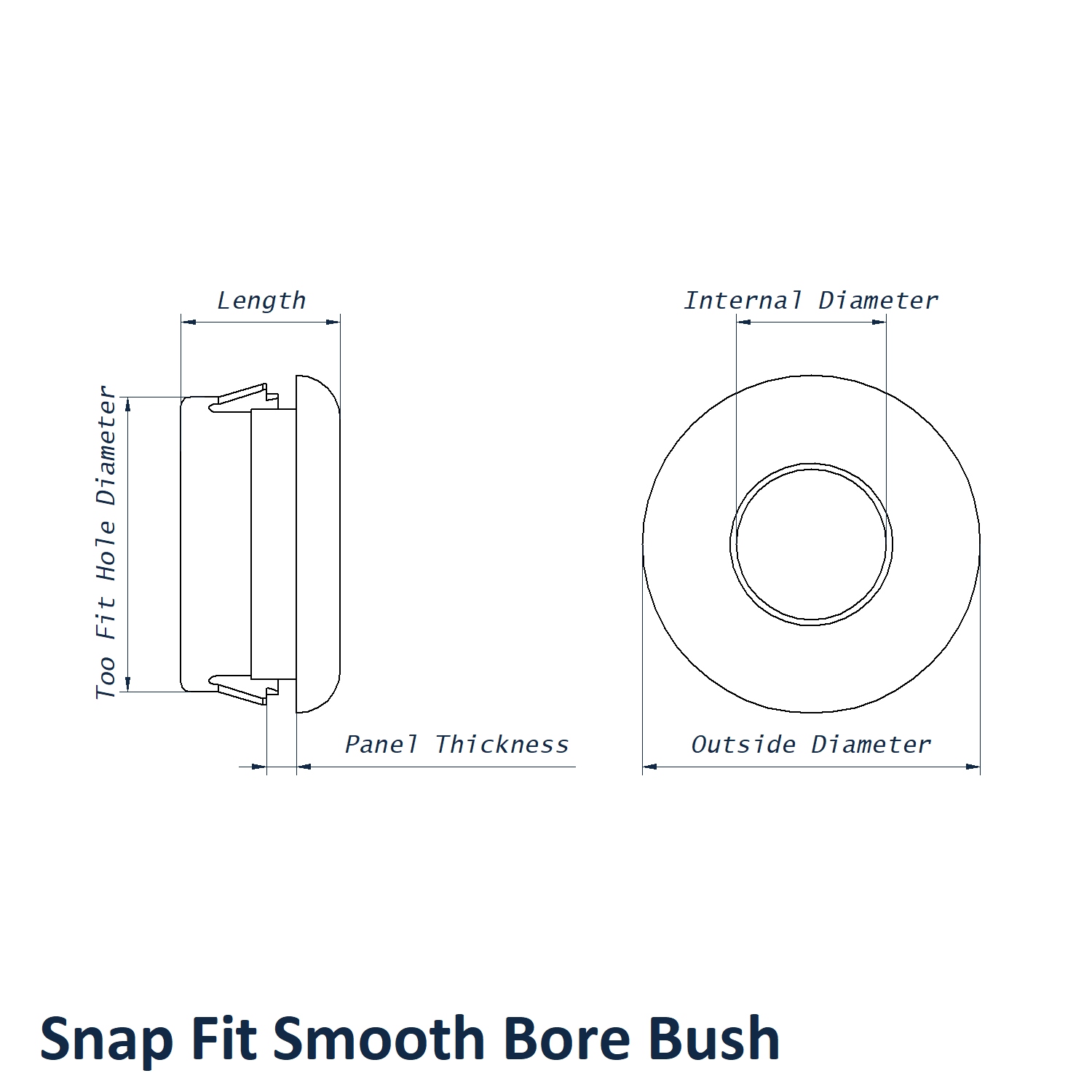

22.3mm x 14.2mm Smooth Bore Bushing Dimensions
- To Fit Hole Diameter: 22.3mm
- Max Panel Thickness: 3.2mm
- Internal Diameter: 14.2mm
- Head Diameter: 24.6mm
- Length: 13.1mm
- Material: Nylon
- Colour: Black
Smooth Bore Cable Protection
This larger snap-in bushing gives assembly teams a practical way to protect bigger cable groups while keeping the fixing simple and tool-free.
These smooth bore cable bushings are manufactured from UL94V-2 rated Nylon 6/6 and are designed for snap-in panel installation. They are commonly chosen for cable insulation, abrasion reduction, anti-vibration support and applications where a smooth central bore is preferred over a split or toothed bush.
View our full Smooth Bore Bushings range.
Product Support and Trade Orders
For help checking hole size, cable clearance, panel thickness or bulk order suitability, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade requirements for production or maintenance use.
