15.9mm Smooth Bore Bushing (Snap Fit) - 6.4mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.36 | £0.43 |
| 250 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.24 | £0.29 |
| 1000 - 2499 | £0.18 | £0.22 |
| 2500 - 4999 | £0.16 | £0.19 |
| 5000 + | £0.12 | £0.15 |
Product Specification
| To Fit Hole Diameter | 15.9mm |
| Max Panel Thickness | 3.2mm |
| Internal Diameter | 6.4mm |
| Material | Nylon |
| Head Diameter | 18.3mm |
| Length | 11.2mm |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
15.9mm Smooth Bore Bushing | 6.4mm Internal Diameter | Black Nylon
This black black nylon cable bushing is specified where a 15.9mm panel hole needs a clean, insulated pass-through for wires, cables or light rotating parts.
The locking finger design allows the bushing to be pushed into position without secondary fasteners, helping speed up panel preparation on repeated assembly work.
What Are Smooth Bore Bushings?
Smooth bore bushings are snap-fit panel bushes used to line a drilled or punched hole so cables, wiring, tubing or suitable rotating shafts can pass through more safely. The smooth internal bore reduces direct contact with exposed panel edges, while the locking fingers hold the bush in place after installation.
Common Applications
- Machine guard cable pass-throughs
- Workshop fabrication panels
- Automation equipment wiring routes
- Protection for cables through 3.2mm sheet

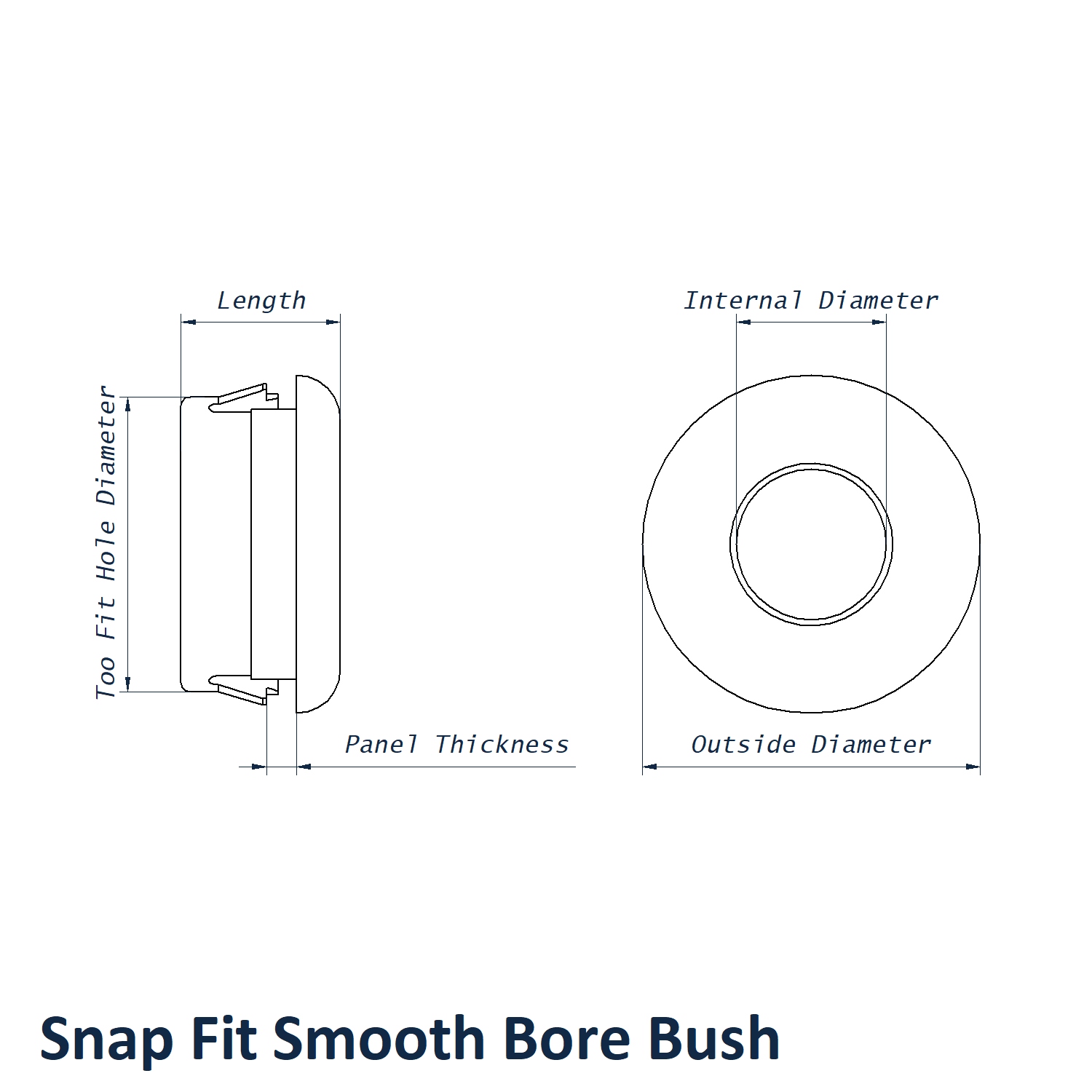

15.9mm x 6.4mm Smooth Bore Bushing Dimensions
- To Fit Hole Diameter: 15.9mm
- Max Panel Thickness: 3.2mm
- Internal Diameter: 6.4mm
- Head Diameter: 18.3mm
- Length: 11.2mm
- Material: Nylon
- Colour: Black
Smooth Bore Cable Protection
The combination of 11.2mm body length and 6.4mm bore makes this bush useful for cable insulation around cut edges without adding a sharp metal contact point to the cable route.
These smooth bore cable bushings are manufactured from UL94V-2 rated Nylon 6/6 and are designed for snap-in panel installation. They are commonly chosen for cable insulation, abrasion reduction, anti-vibration support and applications where a smooth central bore is preferred over a split or toothed bush.
View our full Smooth Bore Bushings range.
Product Support and Trade Orders
For help checking hole size, cable clearance, panel thickness or bulk order suitability, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade requirements for production or maintenance use.
