M4 x 14mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.02 | £0.02 |
Product Specification
| Thread Size | M4 |
| Length | 14mm |
| Threaded Length | Fully Threaded |
| Pitch | 0.70mm |
| Head Diameter | 7.0mm |
| Head Height | 4.0mm |
| Drive | H3 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M4 x 14mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Designed for marine equipment, this M4 x 14mm replacement cap screw combines a H3 hex socket with a 7mm cap head for controlled tightening into threaded components.
The A2 stainless steel equivalent to 304 construction supports controlled tightening in compact areas, while the M4 thread and 14mm length make it suitable for mounting electrical hardware. A2 stainless steel is a practical option for general industrial, equipment and indoor fabrication use. It can also be specified as a maintenance fixing where Dimensions are required.
Common Applications
- Fabrication workshop projects
- Removable guarding systems
- Automation bracket mounting
- Industrial frame construction

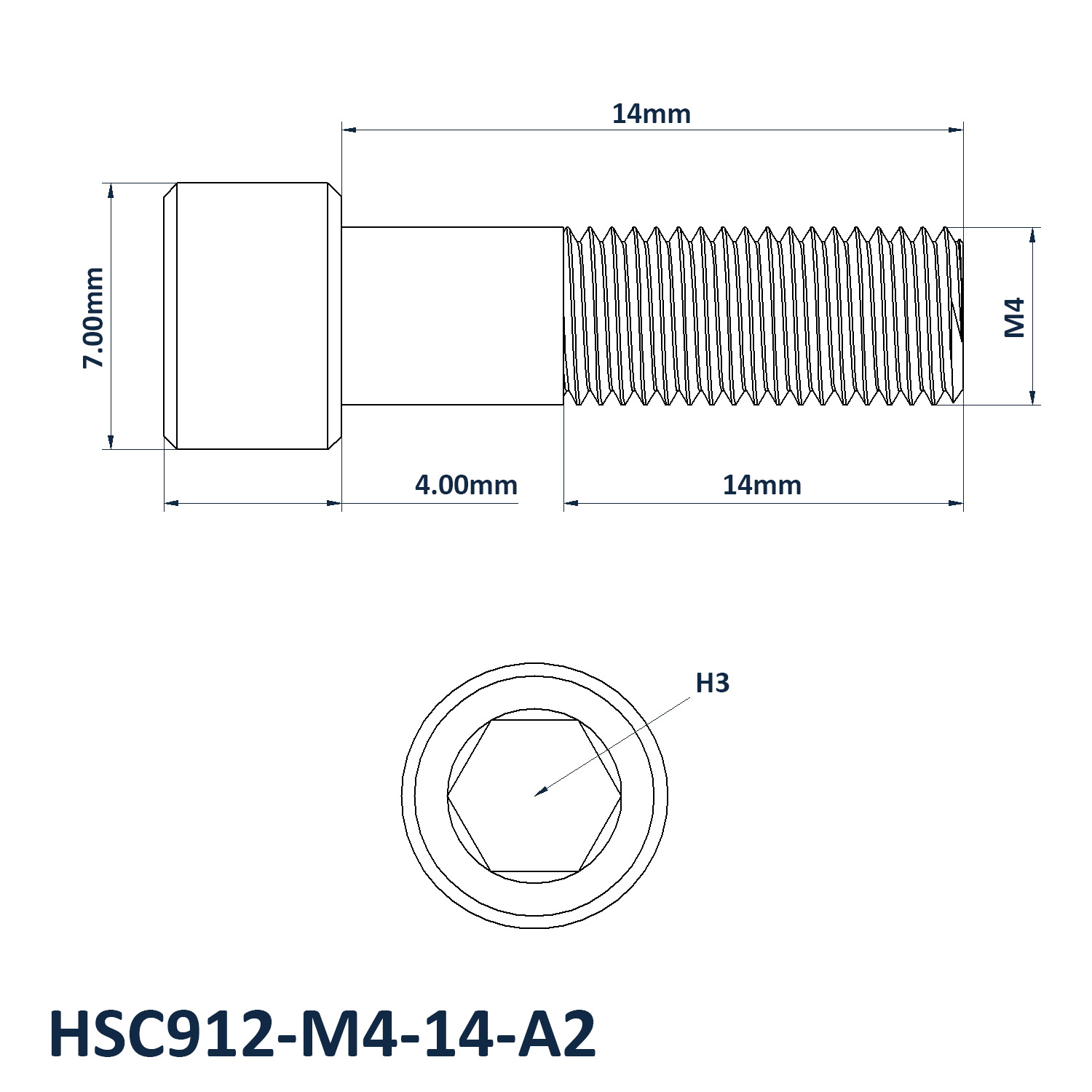

M4 x 14mm Socket Cap Screw Dimensions
- Thread Size: M4
- Length: 14mm
- Threaded Length: Fully Threaded
- Pitch: 0.70mm
- Head Diameter: 7mm
- Head Height: 4mm
- Drive: H3
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
