M4 x 16mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Product code:
HSC912-M4-16-A4
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.02 | £0.02 |
£0.04
/ each
Quantity:
Product Specification
| Thread Size | M4 |
| Length | 16mm |
| Threaded Length | Fully Threaded |
| Pitch | 0.70mm |
| Head Diameter | 7.0mm |
| Head Height | 4.0mm |
| Drive | H3 |
| Head Style | Cap Head |
| Material | A4 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M4 x 16mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Commonly used across jig and fixture builds, this M4 x 16mm A4 machinery cap screw offers a dependable fixing choice where high clamp load and neat head presentation matter.
When fitted into a correctly prepared tapped hole, this cap screw helps achieve consistent tightening torque in building production equipment.
Common Applications
- Display equipment hardware
- Counterbored machine joints
- Fabricated steel assemblies
- Actuator and sensor brackets

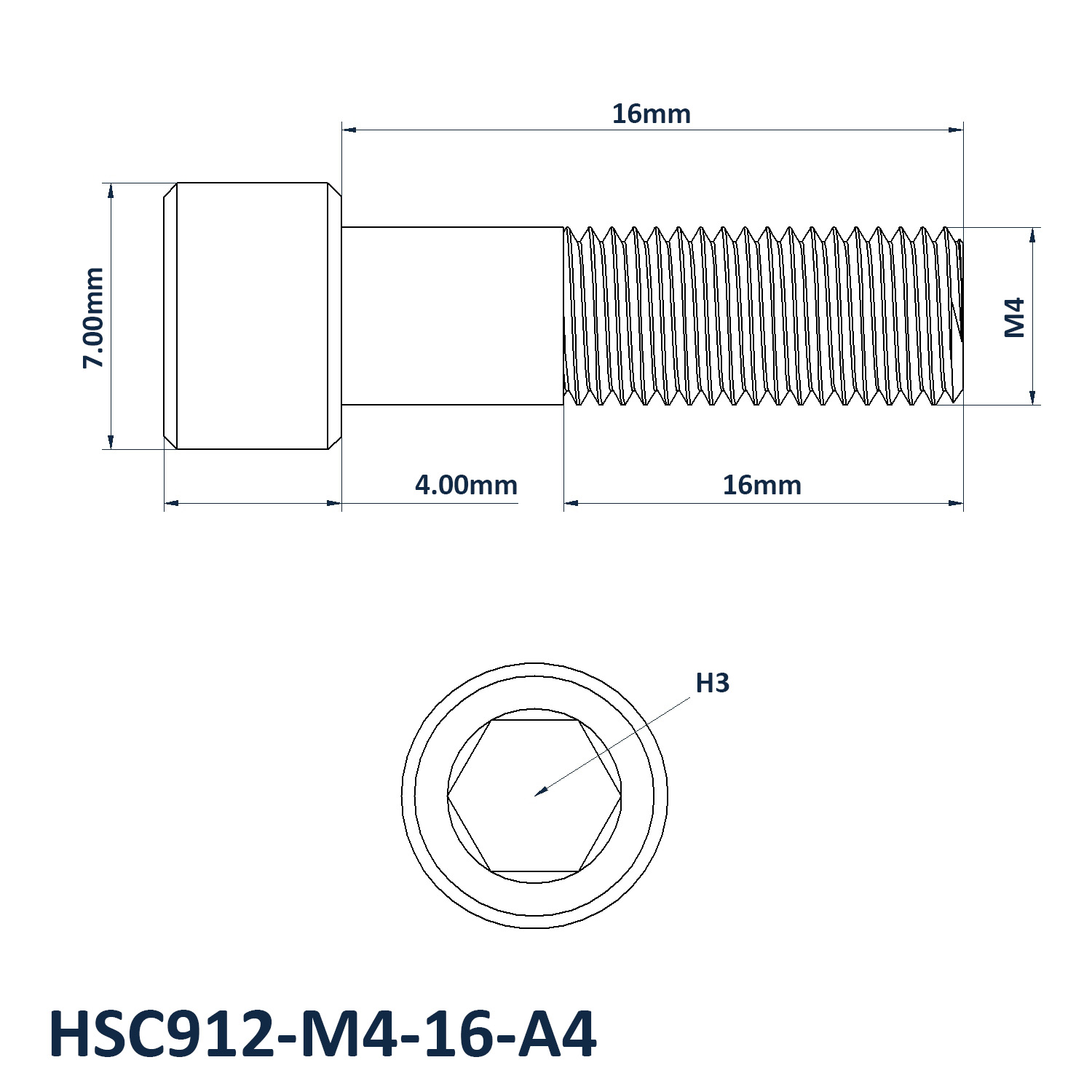

M4 x 16mm Socket Cap Screw Dimensions
- Thread Size: M4
- Length: 16mm
- Threaded Length: Fully Threaded
- Pitch: 0.70mm
- Head Diameter: 7mm
- Head Height: 4mm
- Drive: H3
- Material: A4 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
These screws are often selected for counterbored holes where the cap head can sit neatly within the component surface.
View our full Socket Cap Screws DIN 912 Range.
