M4 x 40mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Product code:
HSC912-M4-40-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.04 | £0.05 |
| 1000 - 4999 | £0.03 | £0.04 |
| 5000 + | £0.03 | £0.03 |
£0.05
/ each
Quantity:
Product Specification
| Thread Size | M4 |
| Length | 40mm |
| Threaded Length | 20mm |
| Pitch | 0.70mm |
| Head Diameter | 7.0mm |
| Head Height | 4.0mm |
| Drive | H3 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M4 x 40mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Suitable for sheet metal fabrication, this M4 x 40mm counterbore cap screw is a DIN 912 cap screw used where access, torque control and repeatable fixing are important.
With A2 stainless steel and a H3 drive, the screw is suited to fixing tooling plates where installers need good load transfer under the cap head without using an external spanner.
Common Applications
- Removable guarding systems
- Production equipment builds
- Workshop machinery servicing
- Laboratory fixture builds

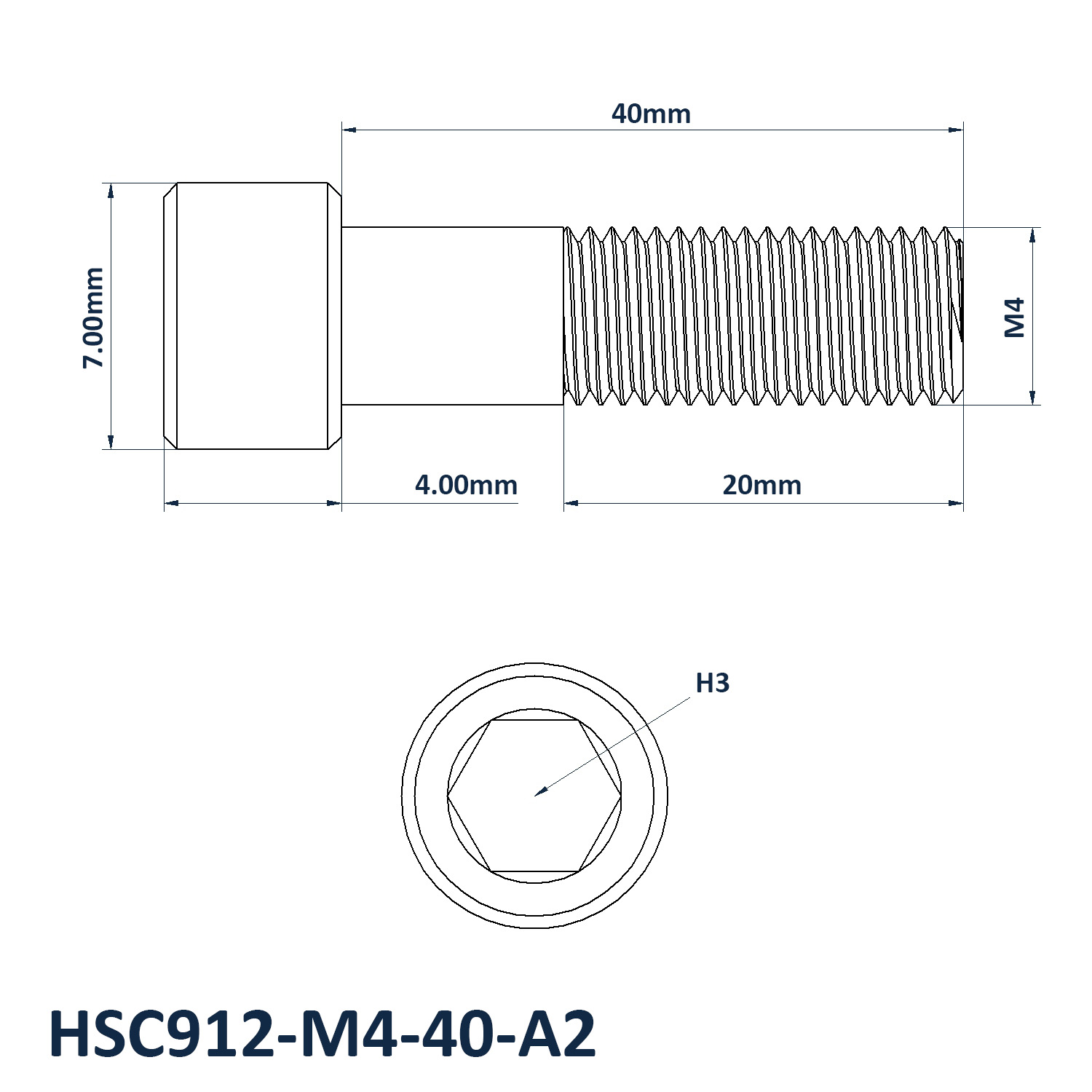

M4 x 40mm Socket Cap Screw Dimensions
- Thread Size: M4
- Length: 40mm
- Threaded Length: 20mm
- Pitch: 0.70mm
- Head Diameter: 7mm
- Head Height: 4mm
- Drive: H3
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
For best results, check the thread size, pitch, length and available thread engagement against the tapped component before installation.
View our full Socket Cap Screws DIN 912 Range.
