M2.5 x 10mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M2.5 |
| Length | 10.0mm |
| Pitch | 0.45mm |
| End Type | Flat |
| Drive | H1.3 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2.5 x 10mm Flat Point Socket Grub Screw | H1.3 Drive | A2 Stainless Steel
When a flush fastening is needed for automotive restoration, this M2.5 x 10mm flat point set screw provides a tidy DIN 913 solution. The A2 Stainless Steel material and H1.3 drive make it suitable for controlled assembly work in UK engineering environments. Engineers often select this metric grub screw when helps secure small components while maintaining a flush appearance in linkages, knobs, collars and mechanical refurbishment jobs.
The A2 stainless grade is a strong choice where a clean self-colour finish and reliable corrosion resistance are required for regular industrial use. The combination of a flat point, metric thread and socket drive gives a controlled fixing for assemblies that need repeatable setting and removal. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Linkages, knobs, collars and mechanical refurbishment jobs using a M2.5 x 10mm flat point set screw
- Access panel hardware and small mechanical linkages
- OEM equipment builds using metric tapped holes
- Machine guarding fixtures with limited clearance
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

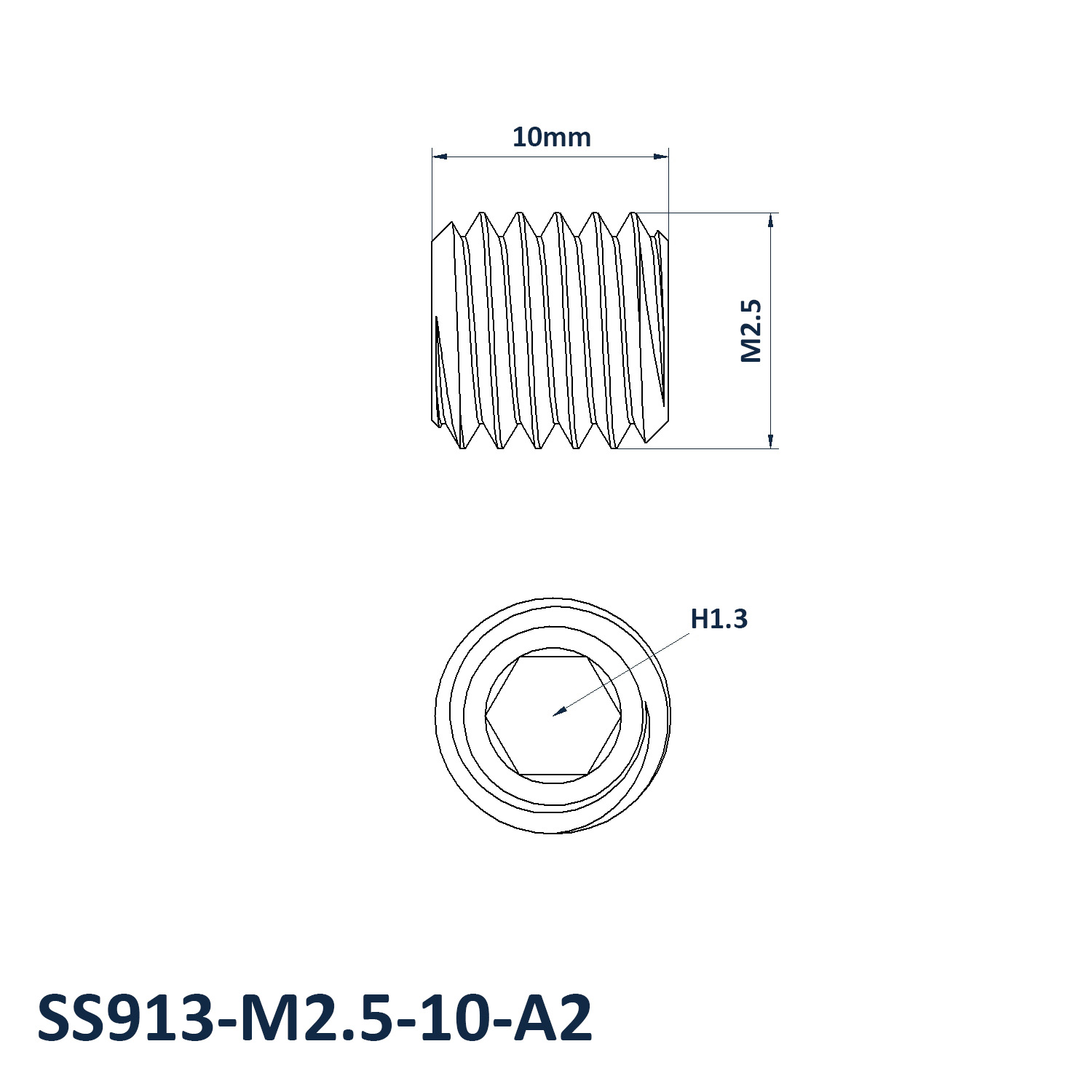

M2.5 x 10mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2.5
- Length: 10mm
- Pitch: 0.45mm
- End Type: Flat
- Drive: H1.3
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
