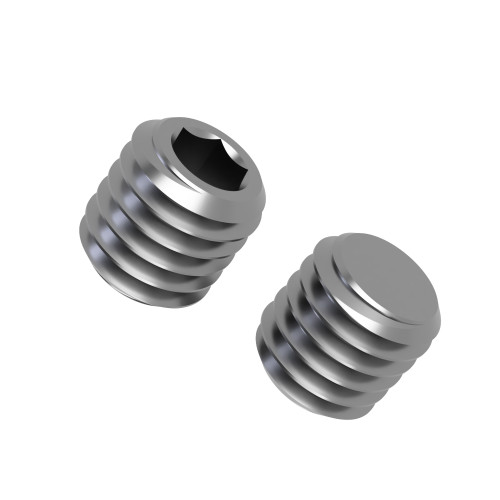

M6 x 16mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.09 | £0.11 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 - 9999 | £0.06 | £0.07 |
| 10000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M6 |
| Length | 16.0mm |
| Pitch | 1.00mm |
| End Type | Flat |
| Drive | H3 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M6 x 16mm Flat Point Socket Grub Screw | H3 Drive | Class 45H Steel BZP
The M6 x 16mm socket grub screw with flat point is intended for laboratory equipment and similar precision assemblies. A 1.00mm thread pitch gives consistent engagement while the flat point supports contact on shafts, collars and machined faces. As a flush grub screw, it is well suited to benchtop frames, instrument mounts and calibration fixtures because it allows controlled adjustment without bulky external heads.
Manufactured from Class 45H steel BZP, this DIN 913 grub screw suits dry environments where strong thread engagement and a practical plated finish are required. Its DIN 913 form is often chosen for collars, hubs and adjustment points where a cup point would be too aggressive for the surface being retained. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Benchtop frames, instrument mounts and calibration fixtures using a M6 x 16mm flat point set screw
- Locking pulleys and gear hubs on compatible shafts
- Holding stop blocks inside jigs and fixtures
- Flush fastening in machined assemblies
Key Features and Benefits
- Broad flat end is suited to components that may be reset during servicing
- Metric thread and 1.00mm pitch provide predictable engagement in matching tapped holes
- Class 45H Steel BZP construction supports the selected environment and application duty
- Compact grub screw format avoids the clearance issues created by headed fasteners

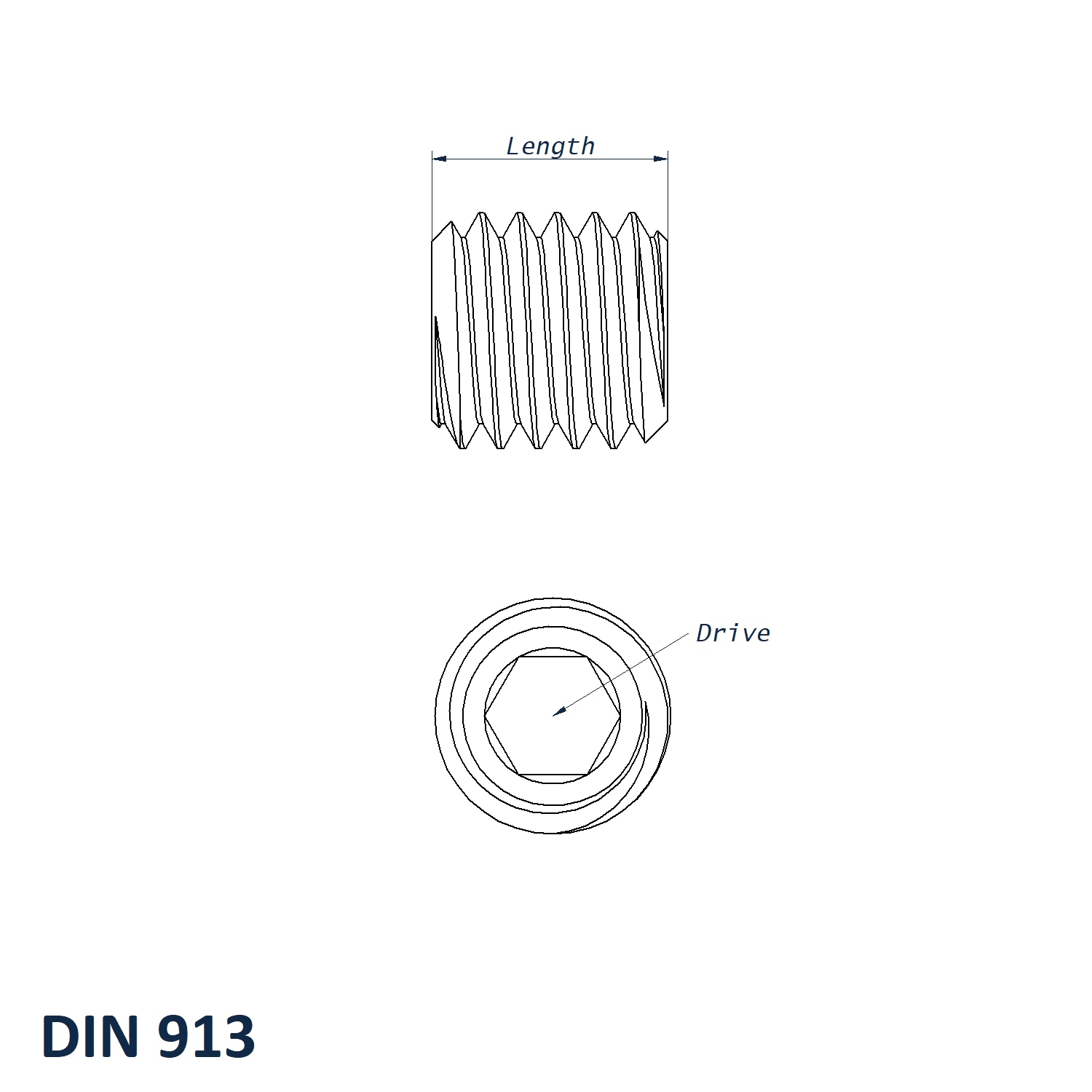

M6 x 16mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M6
- Length: 16mm
- Pitch: 1.00mm
- End Type: Flat
- Drive: H3
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
