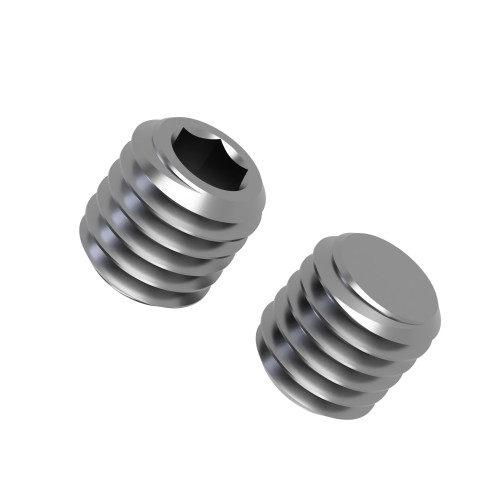

M8 x 10mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 - 9999 | £0.05 | £0.06 |
| 10000 + | £0.04 | £0.05 |
Product Specification
| Thread Size | M8 |
| Length | 10.0mm |
| Pitch | 1.25mm |
| End Type | Flat |
| Drive | H4 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M8 x 10mm Flat Point Socket Grub Screw | H4 Drive | Class 45H Steel BZP
For textile machinery, the M8 x 10mm flat tip grub screw provides positive location without the space taken by a traditional headed bolt. Its H4 internal socket allows access through a small clearance point during installation or servicing. This makes it useful as a shaft collar grub screw in rollers, hubs and alignment collars where keeps rotating equipment settings stable during routine use.
Class 45H steel BZP is well matched to machinery spares, production jigs and non-stainless assemblies that need a robust flat point set screw. The internal hex drive provides good tool access in narrow spaces and helps maintenance teams make small adjustments without dismantling surrounding parts. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Rollers, hubs and alignment collars using a M8 x 10mm flat point set screw
- Inspection gauges and calibration fixtures
- Furniture or display hardware requiring concealed fixing
- Light engineering assemblies with removable set points
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H4 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

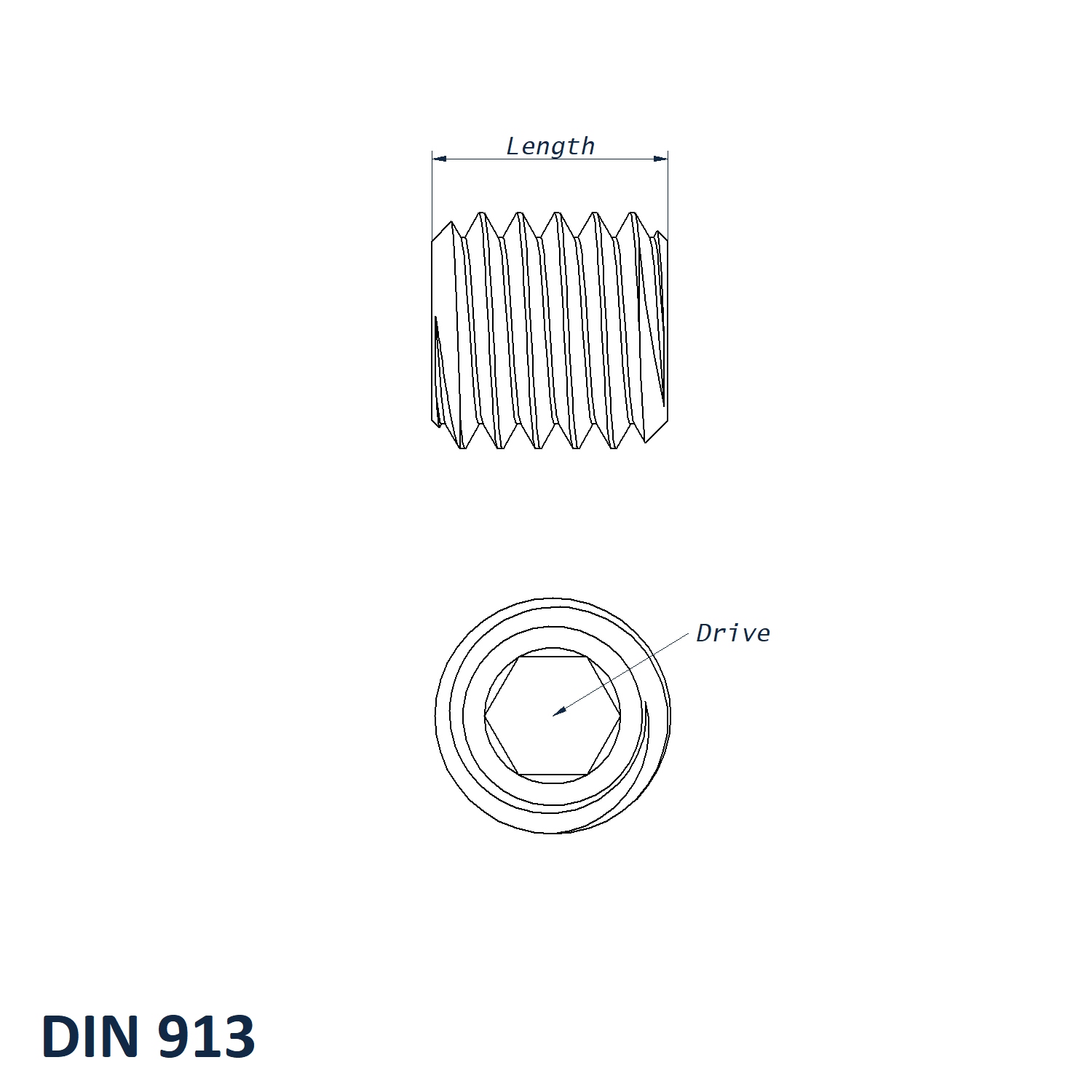

M8 x 10mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M8
- Length: 10mm
- Pitch: 1.25mm
- End Type: Flat
- Drive: H4
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
