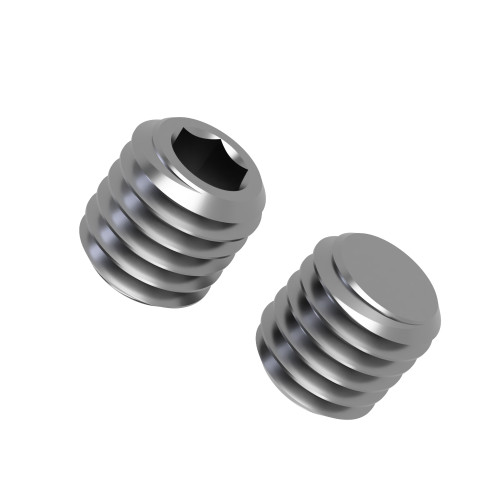

M10 x 16mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.23 | £0.27 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.18 | £0.22 |
| 1000 - 4999 | £0.15 | £0.18 |
| 5000 - 9999 | £0.13 | £0.16 |
| 10000 + | £0.12 | £0.15 |
Product Specification
| Thread Size | M10 |
| Length | 16.0mm |
| Pitch | 1.50.0mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M10 x 16mm Flat Point Socket Grub Screw | H5 Drive | Class 45H Steel BZP
When a flush fastening is needed for jig and fixture manufacture, this M10 x 16mm flat point set screw provides a tidy DIN 913 solution. The Class 45H Steel BZP material and H5 drive make it suitable for controlled assembly work in UK engineering environments. This makes it useful as a flat point grub screw in jigs, fixture plates and setting blocks where provides repeatable location where components need to be reworked or replaced.
Class 45H steel BZP is well matched to machinery spares, production jigs and non-stainless assemblies that need a robust flat point set screw. The combination of a flat point, metric thread and socket drive gives a controlled fixing for assemblies that need repeatable setting and removal. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Jigs, fixture plates and setting blocks using a M10 x 16mm flat point set screw
- Packaging machinery change parts and format tooling
- Workshop repair of brackets, hubs and levers
- General DIN 913 set screw replacement
Key Features and Benefits
- Designed for flush fastening in machined housings and adjustable mechanisms
- Simple hex key operation makes removal and repositioning straightforward
- DIN 913 / ISO 4026 standard helps match existing technical drawings and parts lists
- Material selection helps buyers choose between stainless corrosion resistance and BZP value

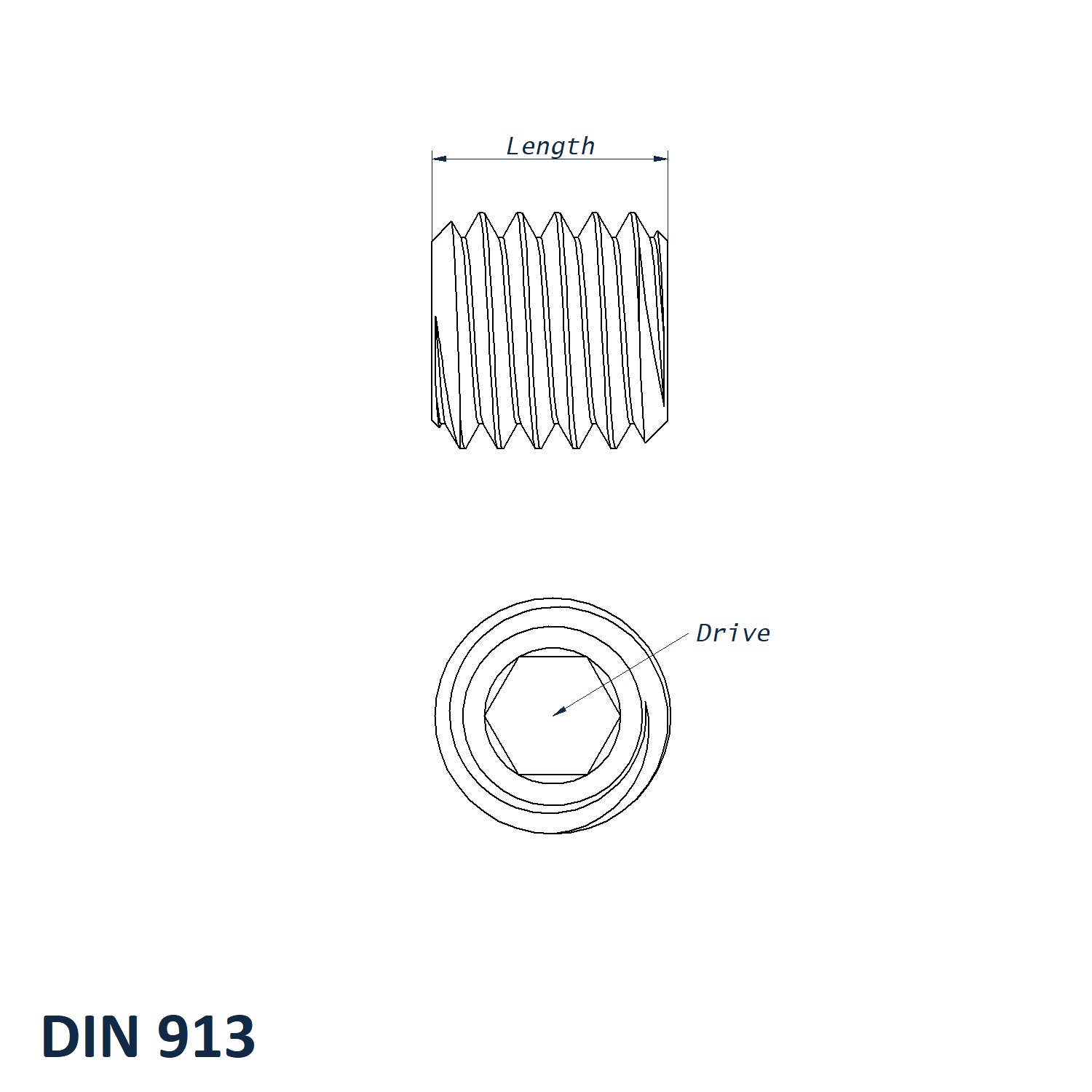

M10 x 16mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 16mm
- Pitch: 1.50.0mm
- End Type: Flat
- Drive: H5
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
