89mm x 44mm Stainless Steel Butterfly Latch with Catch Plate - Lockable
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £9.13 | £10.96 |
| 10 - 24 | £8.38 | £10.05 |
| 25 - 49 | £7.62 | £9.14 |
| 50 - 99 | £6.85 | £8.22 |
| 100 + | £6.39 | £7.67 |
£10.96 / each
Product Specification
| Length | 89mm |
| Height | 22mm |
| Width | 44mm |
| Material | A2 Stainless Steel |
| Catch Plate Length | 32mm |
| Hole Size | 3.4mm |
| Lockable | Yes |
| Colour | Self-colour |
Frequently Bought Together
- Colour Self-colour & Black
- Height 12.5mm
- Width 41.5mm
- Length 94.5mm
- Hole Size 5mm
- Mount Material A2 Stainless Steel
- Handle Material Polypropylene
- Material A2 Stainless Steel
- Height 82mm
- Width 92mm
- Thickness 20mm
- Vertical Hole Distance 45mm
- Horizontal Hole Distance 60mm
- Square Bore 6mm
- Axial Load 750N
- Radial Load 400N
- Thread Size M5
- Material A2 Stainless Steel
- Head Diameter 9.3mm
- Length 16mm
- Drive Pin H3
- Standard None
- Pitch 0.80mm
- Head Height 2.7mm
- Head Style Button Head
Total Price: £0.00

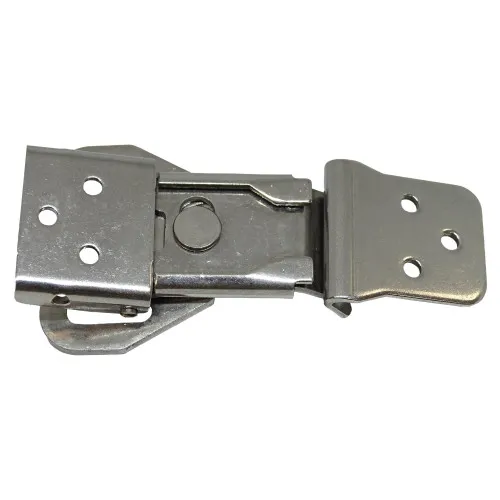

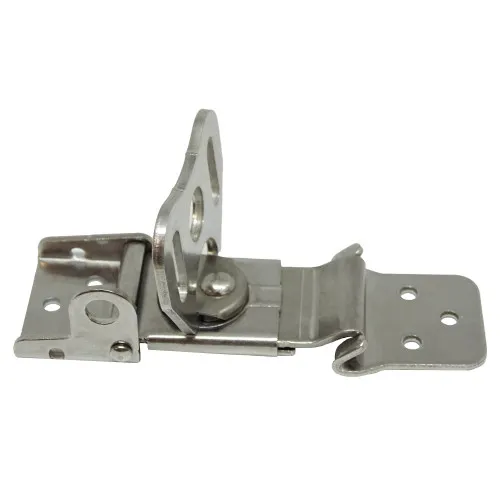

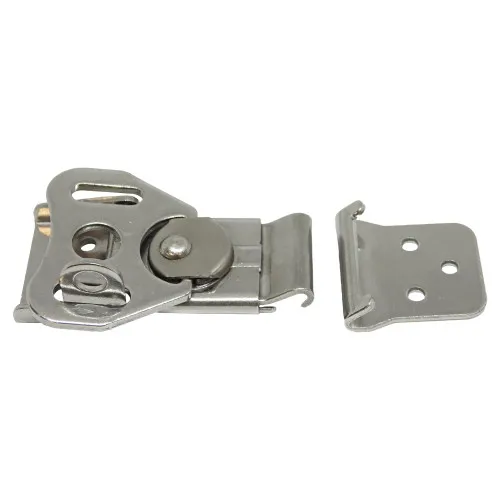

89mm x 44mm Stainless Steel Butterfly Latch with Catch Plate - Lockable - LAT101
This Butterfly Latch with Catch Plate is manufactured from self-colour A2 stainless steel for excellent corrosion resistance and long-term durability. Designed as a secure fastening solution for flight and road cases, it provides a strong and reliable closure for demanding transport and storage applications.
What are Butterfly Latches with Catch Plate?
Butterfly latches with catch plates are mechanical fasteners used to securely close lids, panels and case openings. Commonly fitted to flight cases, road cases and protective storage boxes, they work by engaging the latch onto the catch plate to hold the case firmly shut during transport and handling. Their robust design makes them ideal for repeated use in demanding environments.
Key Features
- Standard: General purpose latch fastening for case and enclosure applications
- Material / Strength: Made from A2 stainless steel for strength and corrosion resistance
- Finish: Self-colour finish for a clean and durable appearance
- Design: Butterfly latch with matching catch plate and padlock compatibility for added security
Key Applications and Industries
These butterfly latches are widely used on flight cases, road cases, equipment boxes and protective storage units. They are particularly popular within the aviation, music, events and transport industries where equipment needs to be secured safely during movement, loading and storage. Their padlock-compatible design also makes them suitable for applications where extra security is required.

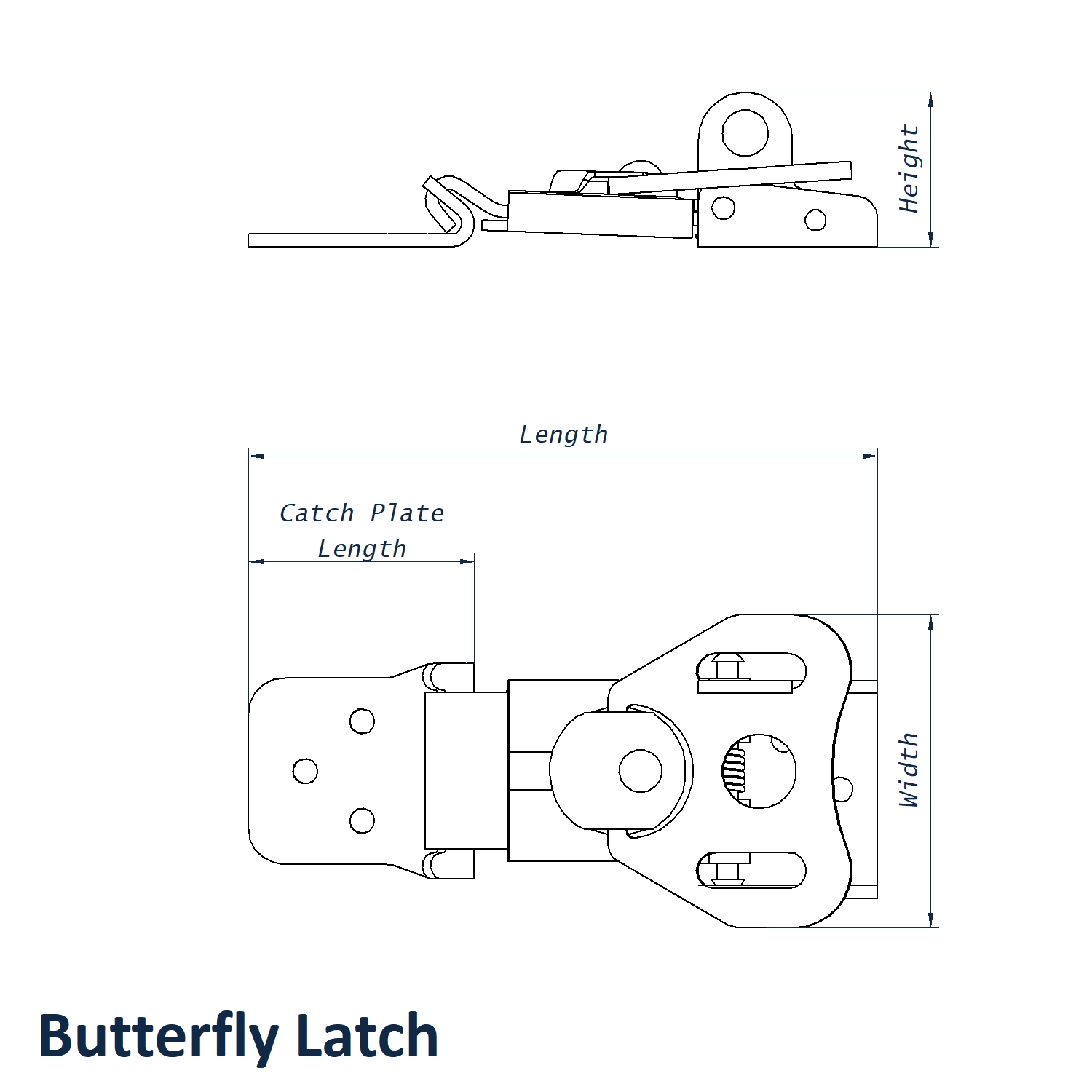

Technical Specifications
- Length: 89mm
- Width: 44mm
- Height: 22mm
- Catch Plate Length: 32mm
- Hole Size: 3.4mm
- Standard: Case latch fastening
- Material: A2 Stainless Steel
- Finish: Self-colour
- Locking Option: Suitable for securing with a padlock
Quality and Selection Notes
- Check the overall latch and catch plate dimensions to ensure correct fitment on your case or enclosure
- A2 stainless steel is a strong choice for indoor use and general external environments where corrosion resistance is needed
- Choose this latch where secure closing and optional padlock use are important for equipment protection
Installation Notes
- Position the latch and catch plate carefully before drilling to ensure proper alignment and closure
- Use fixings suited to the case material and hole size for a secure installation
- Test the latch action after fitting to confirm smooth engagement and reliable holding strength
If you need assistance selecting the right size butterfly latch with catch plate or would like to discuss custom options , contact our expert team at 01233 713581.
| Code | Material | Colour | Height | Width | Length | Hole Size | Catch Plate Length | Lockable | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| LAT102 | A2 Stainless Steel | Self-colour | 11mm | 48mm | 104mm | 3.4mm | 40mm | No |
Checking...
|
|
| LAT103 | A2 Stainless Steel | Self-colour | 23mm | 48mm | 104mm | 3.4mm | 40mm | Yes |
Checking...
|
|
| LAT100 | A2 Stainless Steel | Self-colour | 12mm | 44mm | 88mm | 3.4mm | 32mm | No |
Checking...
|
|
| LAT101 | A2 Stainless Steel | Self-colour | 22mm | 44mm | 89mm | 3.4mm | 32mm | Yes |
Checking...
|
|
