104mm x 48mm Stainless Steel Butterfly Latch with Catch Plate - Lockable
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £9.89 | £11.87 |
| 10 - 24 | £9.07 | £10.88 |
| 25 - 49 | £8.24 | £9.89 |
| 50 - 99 | £7.42 | £8.90 |
| 100 + | £6.92 | £8.31 |
£11.87 / each

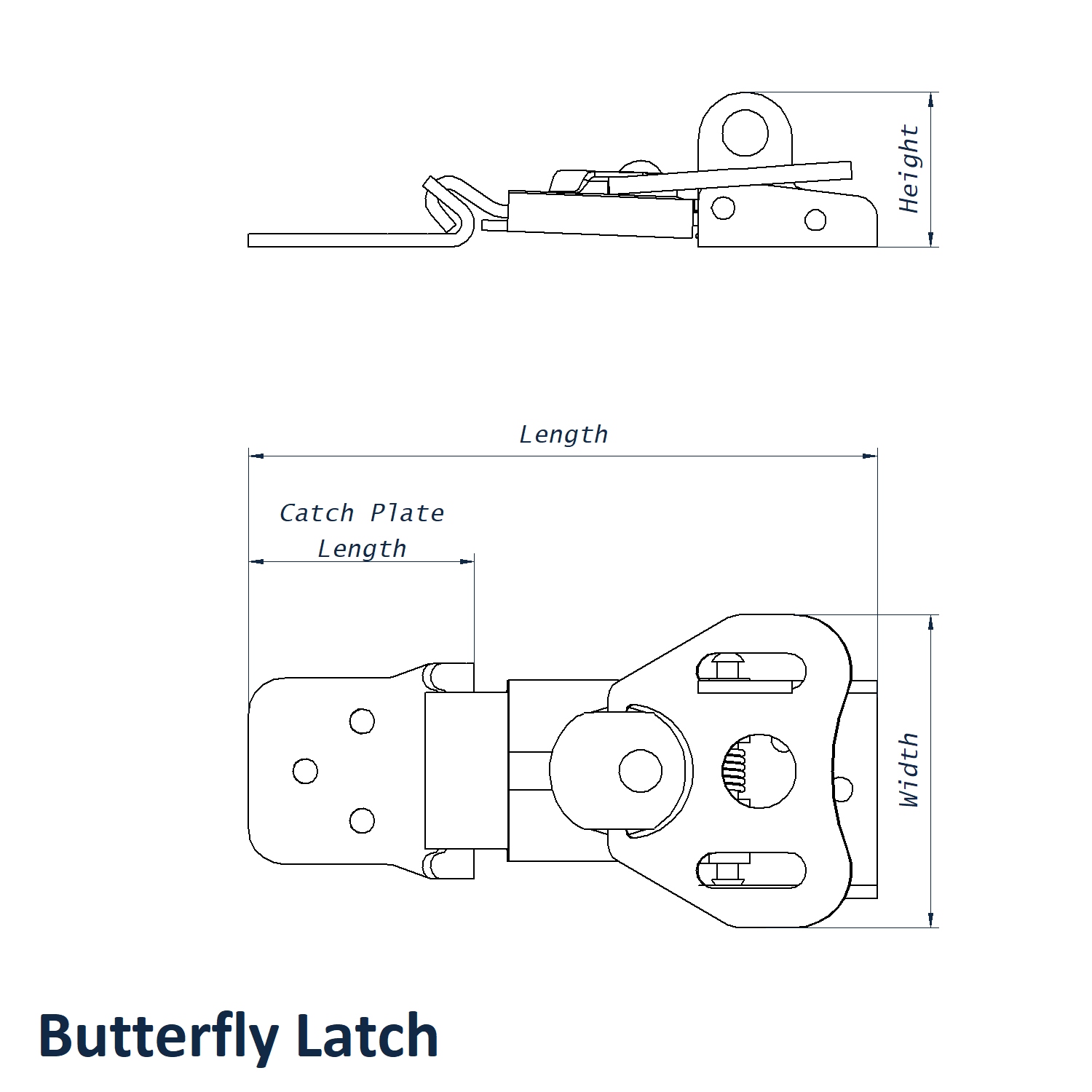

Product Specification
| Length | 104mm |
| Height | 23mm |
| Width | 48mm |
| Material | A2 Stainless Steel |
| Catch Plate Length | 40mm |
| Hole Size | 3.4mm |
| Lockable | Yes |
| Colour | Self-colour |
Frequently Bought Together
- Colour Self-colour & Black
- Height 14.5mm
- Width 50mm
- Length 119mm
- Hole Size 5.2mm
- Mount Material A2 Stainless Steel
- Handle Material Rubber
- Material A2 Stainless Steel
- Height 82mm
- Width 184mm
- Thickness 20mm
- Vertical Hole Distance 45mm
- Open Horizontal Hole Distance 60mm
- Horizontal Hole Distance 92mm
- Square Bore 6mm
- Axial Load 750N
- Radial Load 400N
- Thread Size M5
- Material A2 Stainless Steel
- Head Diameter 9.3mm
- Length 16mm
- Drive Pin H3
- Standard None
- Pitch 0.80mm
- Head Height 2.7mm
- Head Style Button Head
Total Price: £0.00

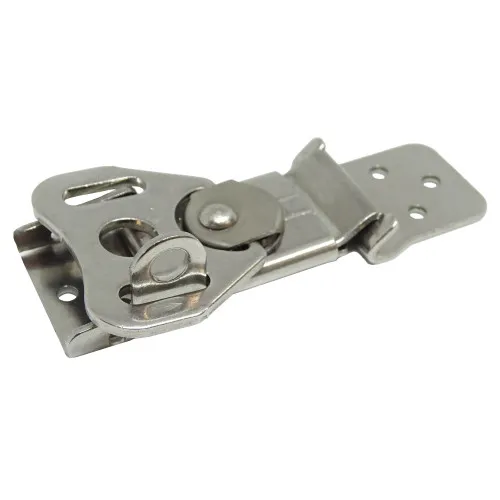

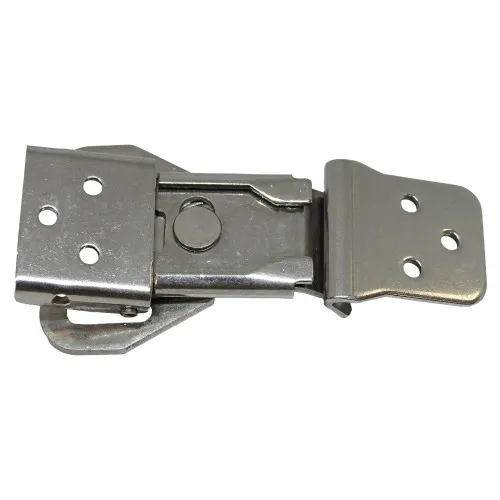

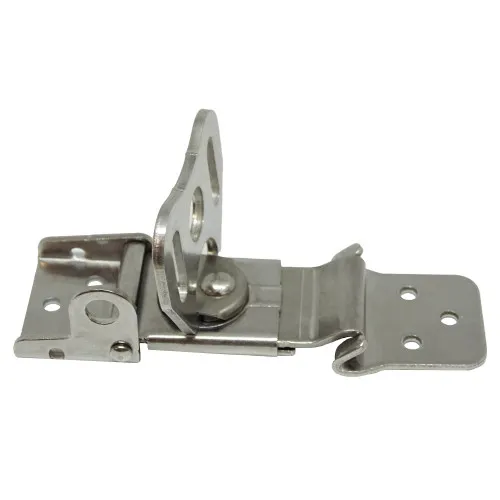

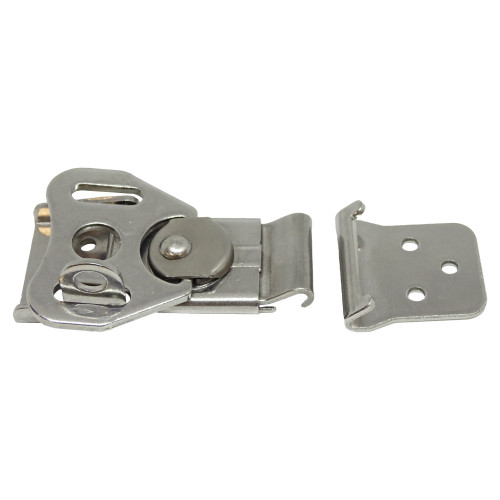

104mm x 48mm Stainless Steel Butterfly Latch with Catch Plate - Lockable - LAT103
This Butterfly Latch with Catch Plate is manufactured from self-colour A2 stainless steel for excellent corrosion resistance and dependable long-term performance. Designed for securely fastening flight and road cases, it provides a robust closure solution for transport, storage and protective equipment applications.
What are Butterfly Latches with Catch Plate?
Butterfly latches with catch plates are fastening components used to close and secure lids, access panels and case openings. They work by pulling the latch into position against the catch plate to create a firm hold, helping to keep equipment protected during transport and storage. These ss latches are commonly chosen for cases and enclosures that require a neat, reliable and repeatable closure.
Key Features
- Standard: General purpose latch fastening for case and enclosure applications
- Material / Strength: Made from A2 stainless steel for good strength and corrosion resistance
- Finish: Self-colour finish for a clean and durable appearance
- Design: Butterfly latch with matching catch plate and padlock compatibility for added security
Key Applications and Industries
These butterfly latches are widely used on flight cases, road cases, equipment boxes and protective storage cases. They are especially suitable for the aviation, music, events and transport industries where durable fastenings are needed to keep contents secure during movement and handling. Their compact and robust construction makes them ideal for regular opening and closing in demanding working environments.
Technical Specifications
- Length: 104mm
- Width: 48mm
- Height: 23mm
- Catch Plate Length: 40mm
- Hole Size: 3.4mm
- Standard: Case latch fastening
- Material: A2 Stainless Steel
- Finish: Self-colour
- Locking Option: Suitable for securing with a padlock
Quality and Selection Notes
- Check the latch dimensions and catch plate size to ensure correct fitment on your case or enclosure
- A2 stainless steel offers reliable resistance to wear and corrosion in general indoor and light external environments
- Choose this version where a strong case closure and optional padlock security are both required
Installation Notes
- Align the latch and catch plate carefully before fixing to ensure smooth closing and reliable engagement
- Use suitable mounting fixings matched to the case material and 3.4mm hole size
- Test the latch after installation to confirm secure fastening and consistent opening and closing action
If you need assistance selecting the right size butterfly latch with catch plate or would like to discuss custom options , contact our expert team at 01233 713581.
| Code | Material | Colour | Height | Width | Length | Hole Size | Catch Plate Length | Lockable | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| LAT102 | A2 Stainless Steel | Self-colour | 11mm | 48mm | 104mm | 3.4mm | 40mm | No |
Checking...
|
|
| LAT103 | A2 Stainless Steel | Self-colour | 23mm | 48mm | 104mm | 3.4mm | 40mm | Yes |
Checking...
|
|
| LAT100 | A2 Stainless Steel | Self-colour | 12mm | 44mm | 88mm | 3.4mm | 32mm | No |
Checking...
|
|
| LAT101 | A2 Stainless Steel | Self-colour | 22mm | 44mm | 89mm | 3.4mm | 32mm | Yes |
Checking...
|
|
