PG 7 Threaded Brass Cable Gland (IP69) 3 - 6.5mm Cable | Nickel Plated
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.52 | £3.03 |
| 10 - 49 | £2.27 | £2.73 |
| 50 - 99 | £2.02 | £2.42 |
| 100 + | £1.72 | £2.06 |
£3.03 / each
Product Specification
| Thread Size | PG 7 |
| Cable Diameter | 3.0 - 6.5mm |
| Thread Length | 6.0mm |
| Total Length | 20 - 24mm |
| Style | Straight-through |
| Material | Brass |
| Colour/Finish | Nickel Plated |
| IP Rating | IP69 |
Frequently Bought Together
13mm Self Sealing Grommet IP67 – Conical – 3-5mm Cable (0.5-2mm Panel) | Light Grey EPDM
Total Price: £0.00
PG 7 Nickel Plated Brass Threaded Cable Gland – 3 - 6.5mm Cable (IP69)
Designed for cable entry through commercial wiring enclosures, this PG 7 nickel-plated brass cable gland is suitable for cables measuring 3 - 6.5mm. The nickel plated finish and 6mm threaded section distinguish this option from other threaded cable fittings. Its stated ingress classification is IP69.
What Are Threaded Brass Cable Glands?
Threaded Brass Cable Glands are cable entry fittings positioned in a matching threaded opening. A cable passes through the gland and the compression mechanism grips the outer cable sheath to help secure the entry. This version is made from Brass with a Nickel Plated finish and uses the PG 7 thread format.
Common Applications
- Control panels: Guide cables with a 3 - 6.5mm outer diameter into electrical control panels using a compatible PG 7 entry.
- Machine enclosures: Provide a defined straight-through cable entry on machinery with a matching PG mounting thread.
- Electrical cabinets: Organise cable entry points in distribution or automation cabinets while selecting the stated IP69 gland.
- Instrumentation: Route instrument or sensor leads through a correctly sized cable entry in an equipment housing.

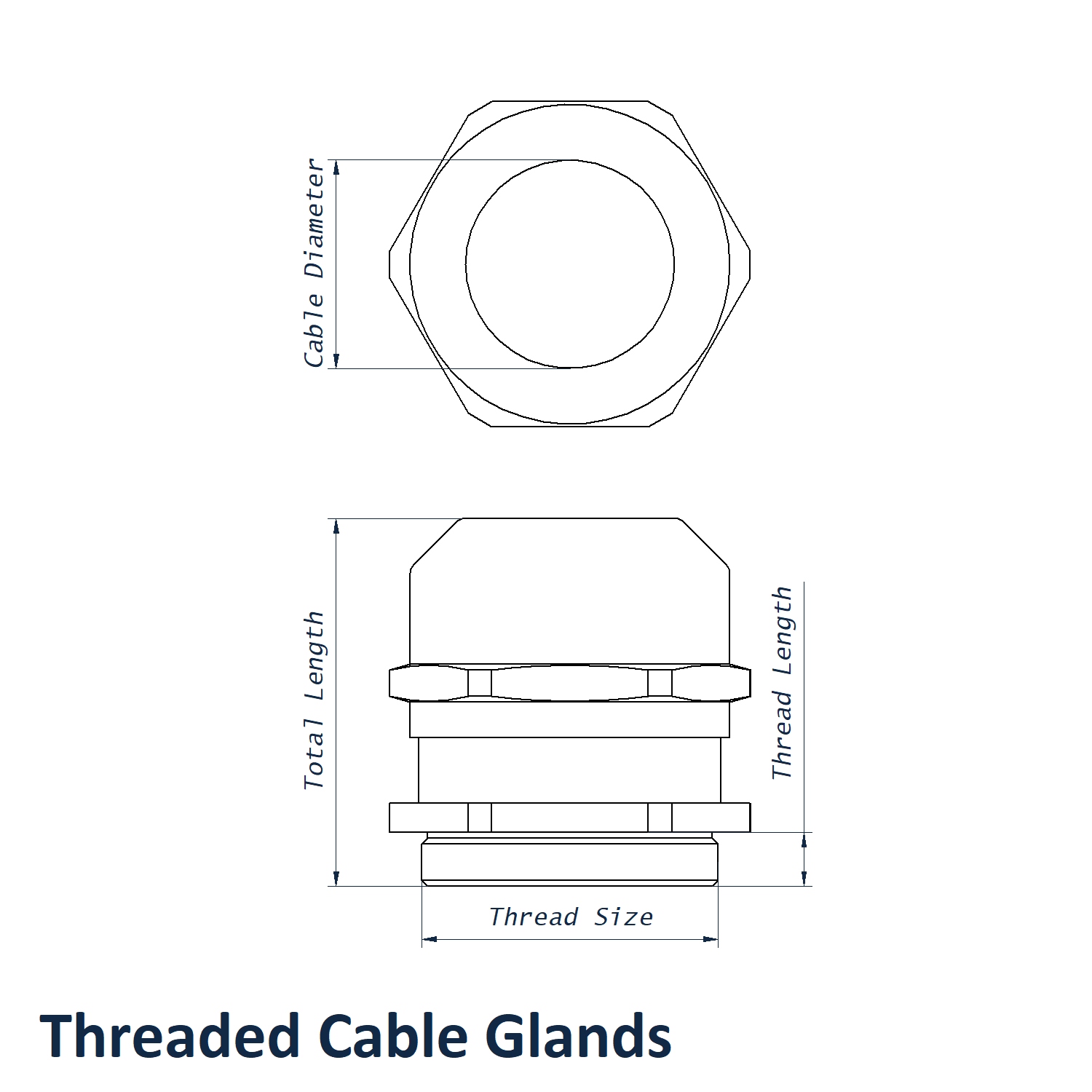

PG 7 Threaded Brass Cable Gland Dimensions
- Thread Size: PG 7
- Cable Diameter: 3.0 - 6.5mm
- Thread Length: 6.0mm
- Total Length: 20 - 24mm
- IP Rating: IP69
- Style: Straight-through
- Material: Brass
- Colour/Finish: Nickel Plated
Key Benefits
- Accepts the specified 3 - 6.5mm cable diameter range for accurate gland selection.
- Provides a 6mm thread length for checking panel entry compatibility.
- Nickel-plated brass construction offers a metal gland body with the specified finish.
- IP69 ingress protection classification for the stated gland design.
Browse more nickel-plated brass cable glands to compare thread connections and cable diameter options. If you need help selecting the correct size, call us on 01233 713581.
