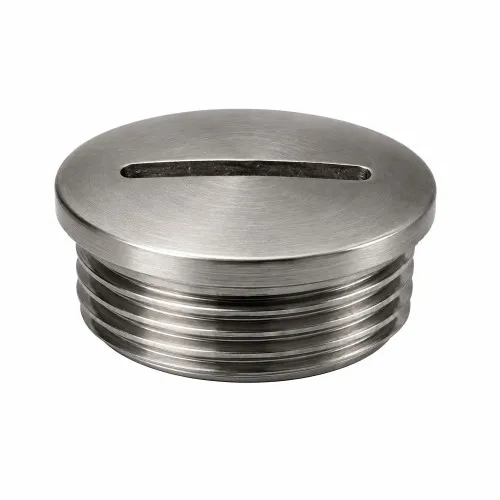

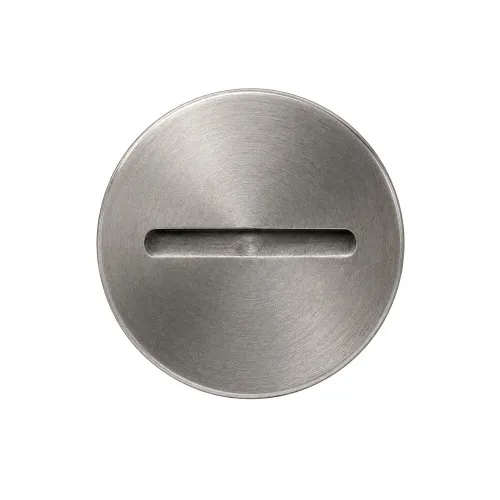

M16 Stainless Steel Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £14.65 | £17.58 |
| 25 - 49 | £14.36 | £17.23 |
| 50 - 99 | £13.81 | £16.57 |
| 100 - 499 | £13.30 | £15.96 |
| 500 + | £12.82 | £15.39 |
£17.58 / each
Product Specification
| Size | M16 x 1.5mm |
| Material | A1 Stainless Steel |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 18mm |
| Thread Length | 5.0mm |
| Total Length | 8.0mm |
Frequently Bought Together
M16 x 1.5mm Threaded Stainless Steel Cable Gland (IP69) 4.5 - 10mm Cable | A2 Stainless Steel

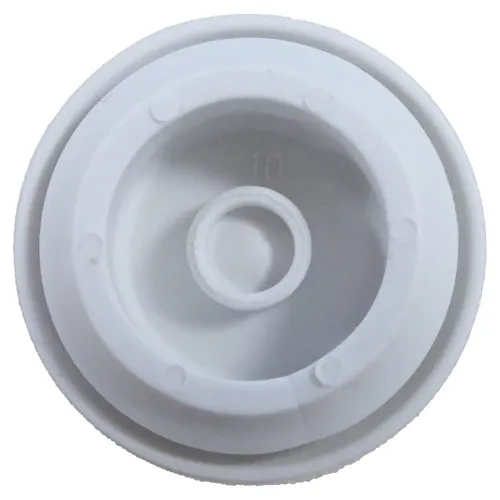

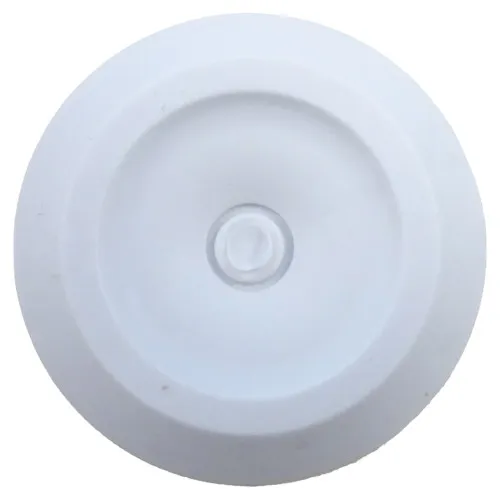

PG9 Self Sealing Grommet IP67 - Low Profile (For 16mm Hole) - 5-10mm Cable (0.5-3mm Panel) | White
Total Price: £0.00
M16 x 1.5mm Threaded Stop End | Self-Colour A1 Stainless Steel
Manufactured for manufacturing machinery and maintenance projects, this M16 x 1.5mm Threaded Stop End combines A1 Stainless Steel construction with a 5.0mm threaded section. Its 18mm head diameter and 8.0mm overall length provide clear sizing references while the screw-in design creates a removable closure for exposed threaded holes.
What Are A1 Stainless Steel Threaded Stop Ends?
A1 Stainless Steel Threaded Stop Ends are male-threaded closures used to finish or protect unused female-threaded openings. They screw directly into the matching thread and provide a removable metal closure for machinery, enclosures and fabricated assemblies.
Common Applications
- Maintenance and Servicing: Keeps redundant ports closed while allowing the stop end to be removed if future access is required.
- Instrument Housings: Provides a compact threaded closure for spare openings on suitable instruments and equipment.
- Machinery and Industrial Equipment: Closes unused threaded holes on machinery, housings and fabricated equipment while keeping the opening accessible for future servicing.
- Automotive Components: Closes redundant threaded openings on suitable vehicle, workshop and mechanical components.

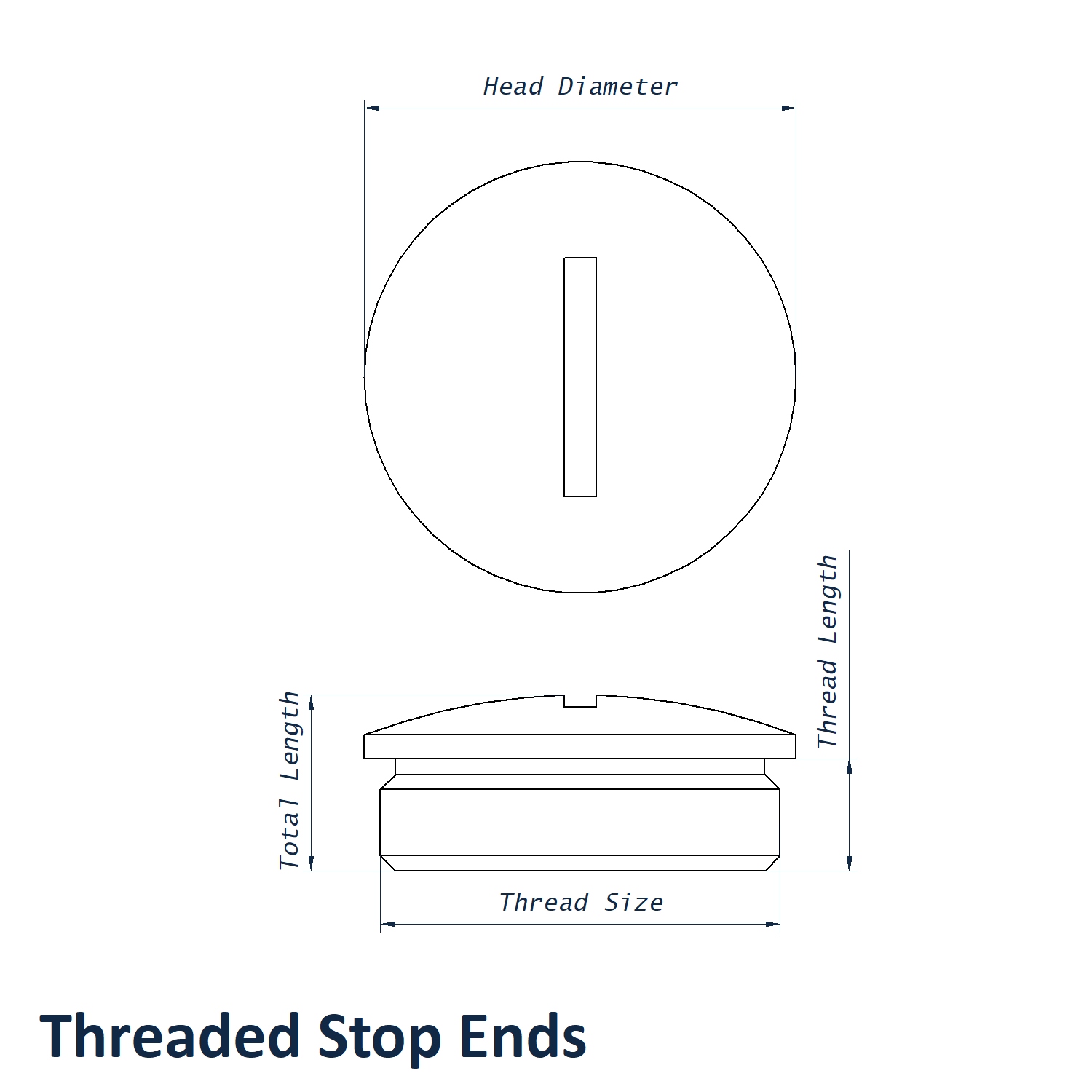

M16 x 1.5mm A1 Stainless Steel Threaded Stop End Dimensions
- Size: M16 x 1.5mm
- Thread Length: 5.0mm
- Total Length: 8.0mm
- Head Diameter: 18mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: A1 Stainless Steel
- Colour: Self-Colour
Key Benefits
- 5.0mm thread length and 8.0mm total length match the uploaded SKU specification.
- -200 °C - 250 °C temperature range matches the uploaded specification.
- Self-Colour finish matches the uploaded product specification.
- M16 x 1.5mm metric thread provides a clear compatibility reference.
Further options are available through the Vital Parts Threaded Stop Ends category in A1 Stainless Steel, Nickel Plated Brass and Nylon. For sizing or material support, speak with our team on 01233 713581.
