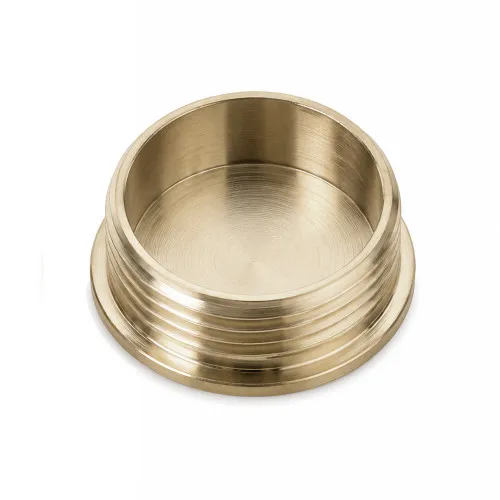

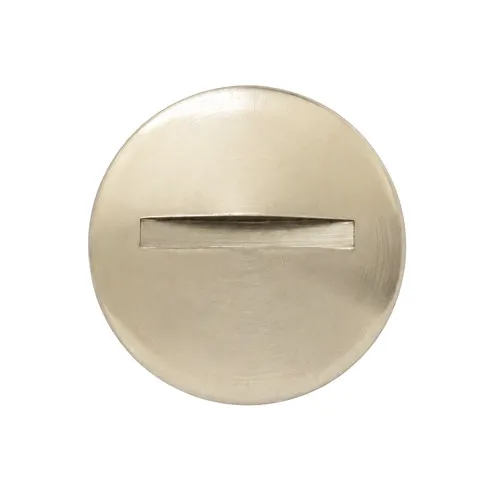

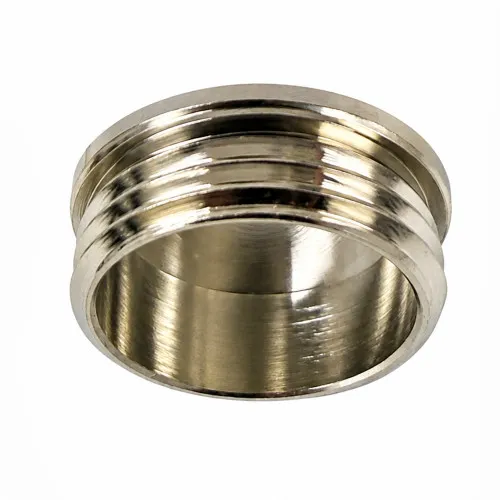

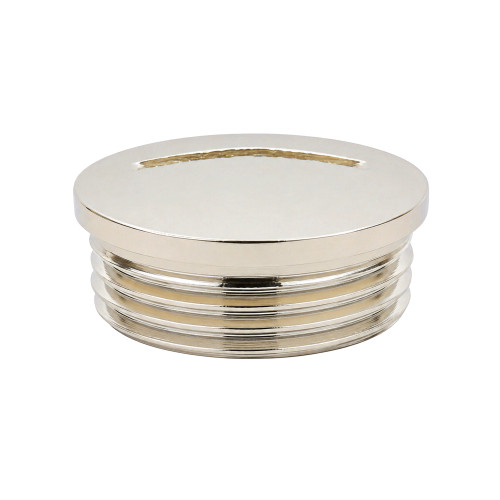

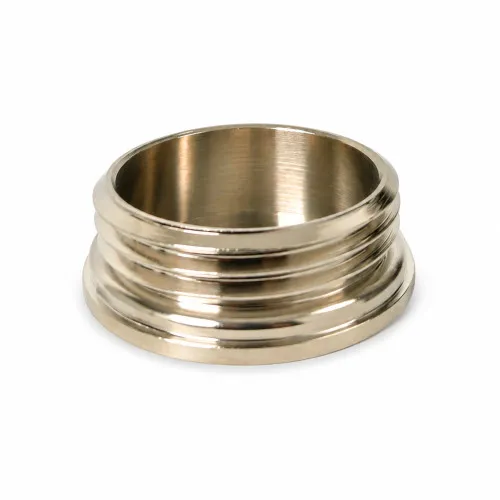

M12 Nickel Plated Brass Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.63 | £0.76 |
| 25 - 49 | £0.62 | £0.74 |
| 50 - 99 | £0.60 | £0.72 |
| 100 - 499 | £0.57 | £0.69 |
| 500 + | £0.55 | £0.66 |
£0.76 / each
.png)
Product Specification
| Size | M12 x 1.5mm |
| Material | Nickel Plated Brass |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 14mm |
| Thread Length | 5.0mm |
| Total Length | 7.5mm |
Frequently Bought Together
M12 x 1.5mm Threaded Brass Cable Gland (IP68) 3 - 7mm Cable | Nickel Plated - Waterproof

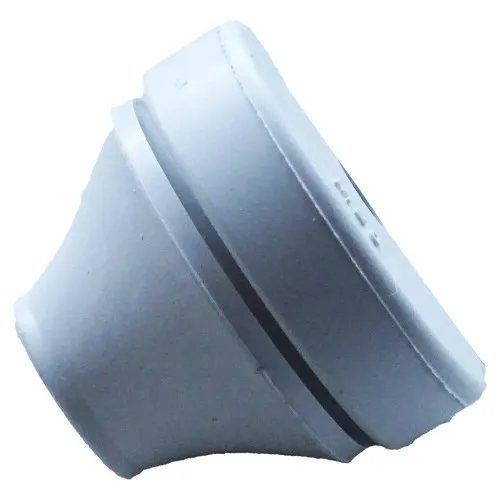

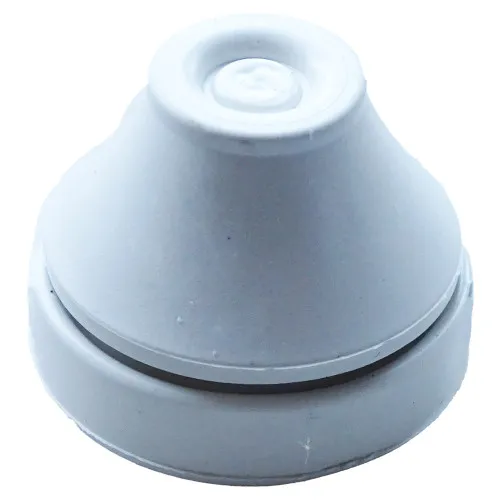

12.5mm Self Sealing Grommet IP67 – Conical – 4-7mm Cable (2-5mm Panel) | Light Grey EPDM
Total Price: £0.00
M12 x 1.5mm Threaded Stop End | Self-Colour Nickel Plated Brass
For maintenance applications and redundant threaded ports, this M12 x 1.5mm Threaded Stop End provides a compact screw-in closure using Nickel Plated Brass. The 14mm head diameter sits above a 5.0mm threaded section while the complete component measures 7.5mm long.
What Are Nickel Plated Brass Threaded Stop Ends?
A Nickel Plated Brass stop end closes exposed threaded holes while keeping the opening removable for later access. It is useful on electrical equipment, fabricated housings and industrial components where a metal closure with a plated finish is preferred.
Common Applications
- Machinery and Industrial Equipment: Closes unused threaded holes on machinery, housings and fabricated equipment while keeping the opening accessible for future servicing.
- Engineering Assemblies: Protects unused metric threads on manufactured parts, frames and mechanical assemblies.
- Equipment Housings: Helps protect exposed female threads from dirt, dust and debris during use, storage or maintenance.
- Control Panels: Closes unused threaded entries in suitable industrial control and automation equipment.

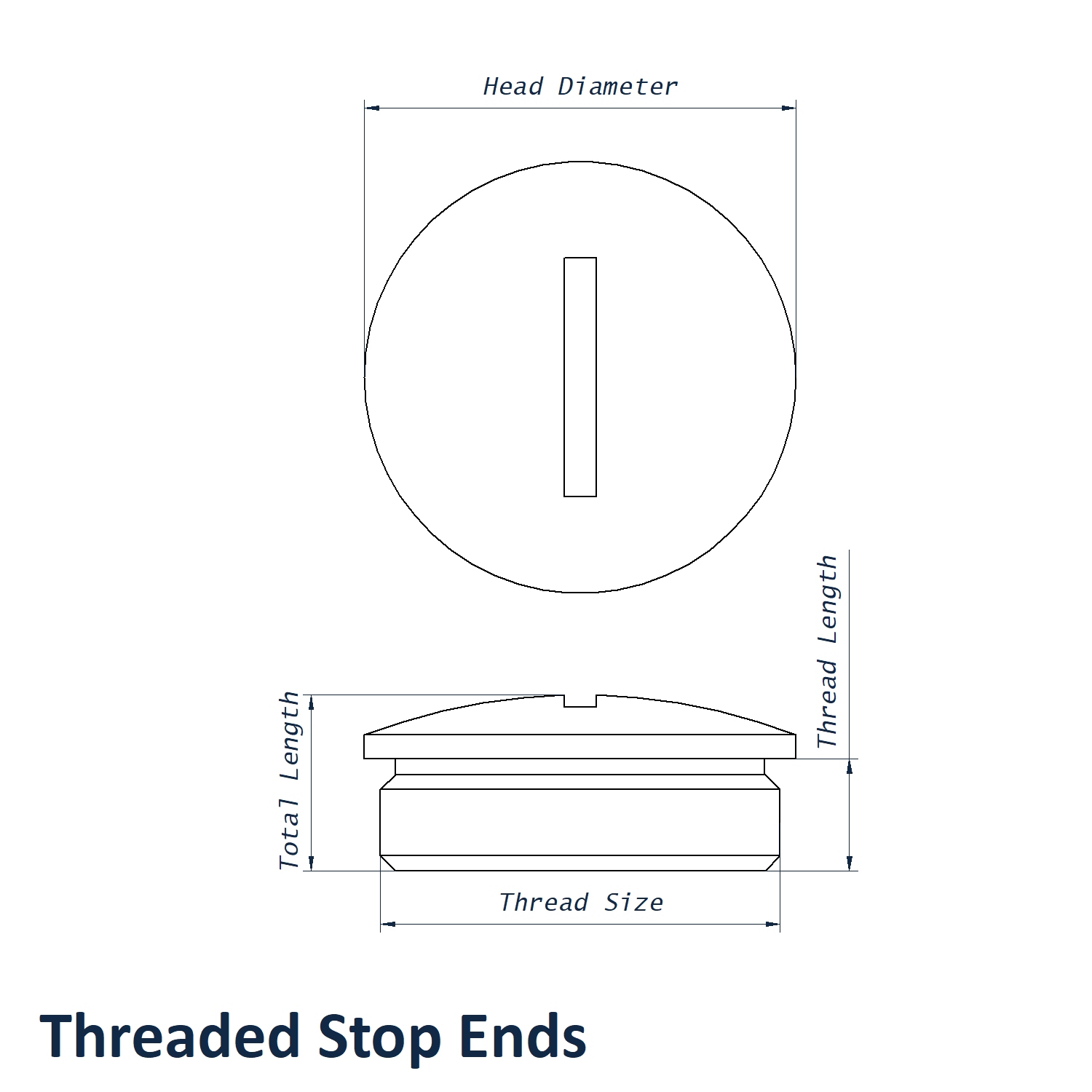

M12 x 1.5mm Nickel Plated Brass Threaded Stop End Dimensions
- Size: M12 x 1.5mm
- Thread Length: 5.0mm
- Total Length: 7.5mm
- Head Diameter: 14mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: Nickel Plated Brass
- Colour: Self-Colour
Key Benefits
- Suitable for electrical enclosures, machinery panels and engineering assemblies.
- 5.0mm thread length and 7.5mm total length match the uploaded SKU specification.
- IP54 rating is retained exactly from the supplied product data.
- IP54 rating matches the supplied product specification.
Browse the full Threaded Stop Ends range for removable closures used on machinery, enclosures and engineering assemblies. Technical support is available on 01233 713581.
