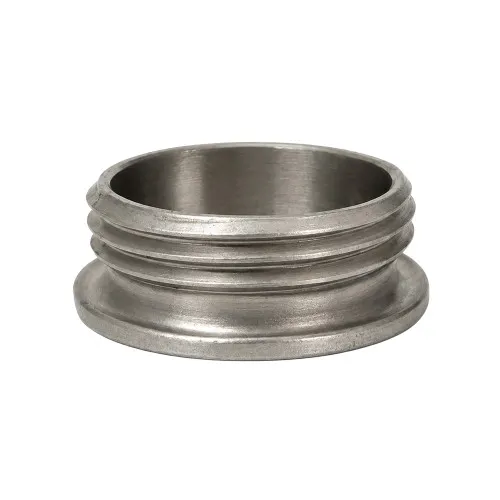

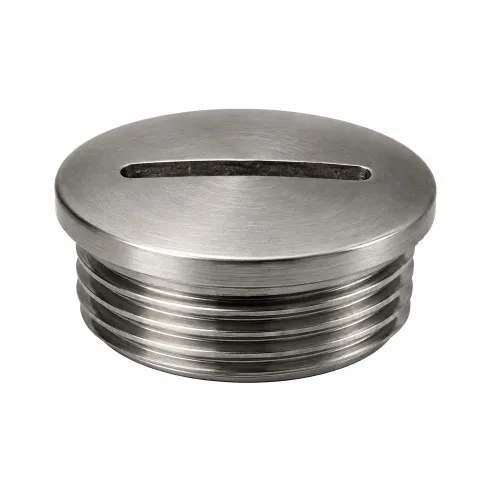

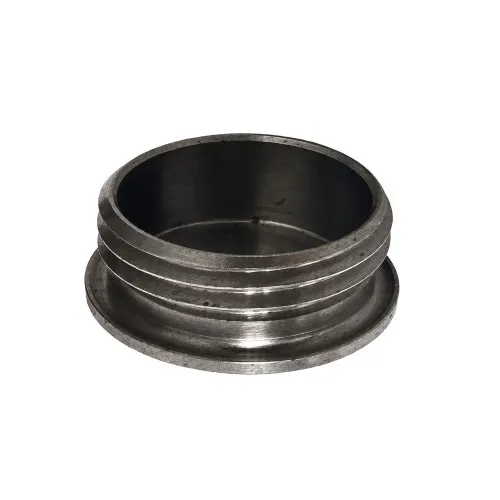

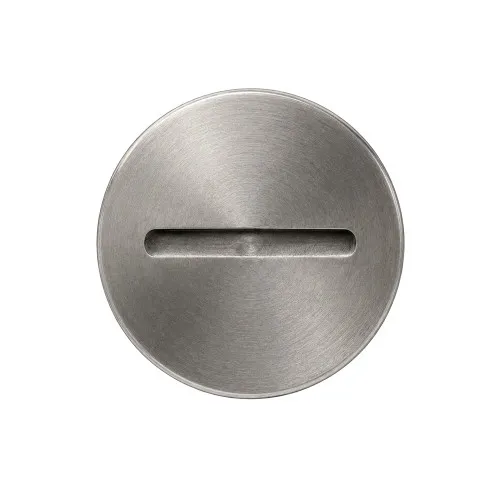

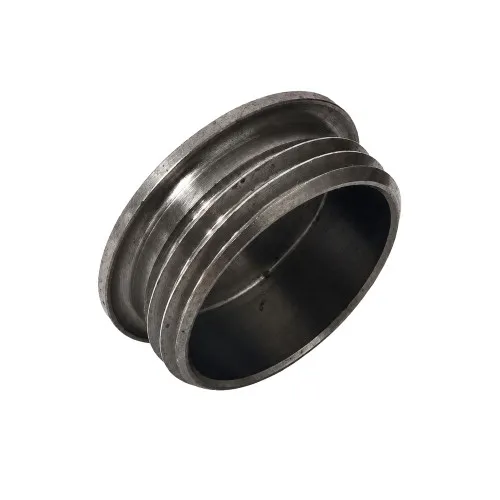

M32 Stainless Steel Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £22.86 | £27.43 |
| 25 - 49 | £22.40 | £26.88 |
| 50 - 99 | £21.54 | £25.85 |
| 100 - 499 | £20.74 | £24.89 |
| 500 + | £20.00 | £24.00 |
£27.43 / each
Product Specification
| Size | M32 x 1.5mm |
| Material | A1 Stainless Steel |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 35mm |
| Thread Length | 8.0mm |
| Total Length | 12.0mm |
Frequently Bought Together
M32 x 1.5mm Threaded Stainless Steel Cable Gland (IP69) 13 - 21mm Cable | A2 Stainless Steel

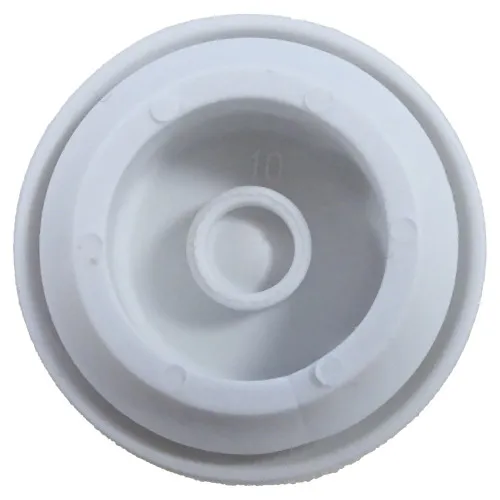

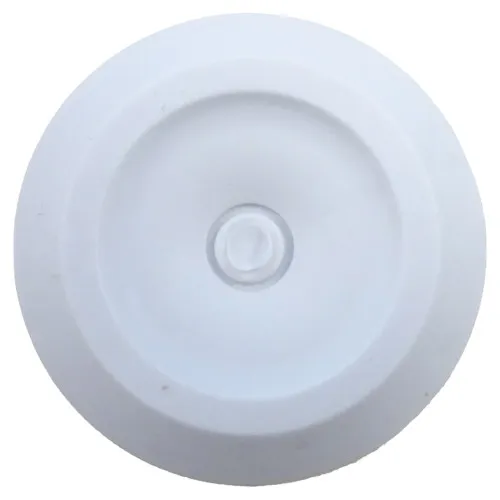

M32 Self Sealing Grommet IP67 - Low Profile (For 32.5mm Hole) - 12-24mm Cable (0.5-4.5mm Panel) | White
Total Price: £0.00
M32 x 1.5mm Threaded Stop End | Self-Colour A1 Stainless Steel
Providing a removable closure for equipment housings and unused threaded ports, this M32 x 1.5mm A1 Stainless Steel stop end screws directly into a matching female thread. The Self-Colour component has a 8.0mm thread length, 12.0mm total length and 35mm head diameter with a stated IP54 rating.
What Are A1 Stainless Steel Threaded Stop Ends?
A1 Stainless Steel stop ends provide a compact removable way to close threaded openings in equipment and fabricated parts. They help protect the internal thread from dirt, dust and debris while leaving the opening accessible for future servicing.
Common Applications
- Control Panels: Closes unused threaded entries in suitable industrial control and automation equipment.
- Workshop Equipment: Protects exposed threads on jigs, fixtures, machines and maintenance assemblies.
- Electrical Enclosures: Provides a removable closure for spare threaded entries in suitable cabinets, panels and control enclosures.
- Fabricated Metalwork: Provides a clean finished closure for unused threaded holes in fabricated panels and metal structures.

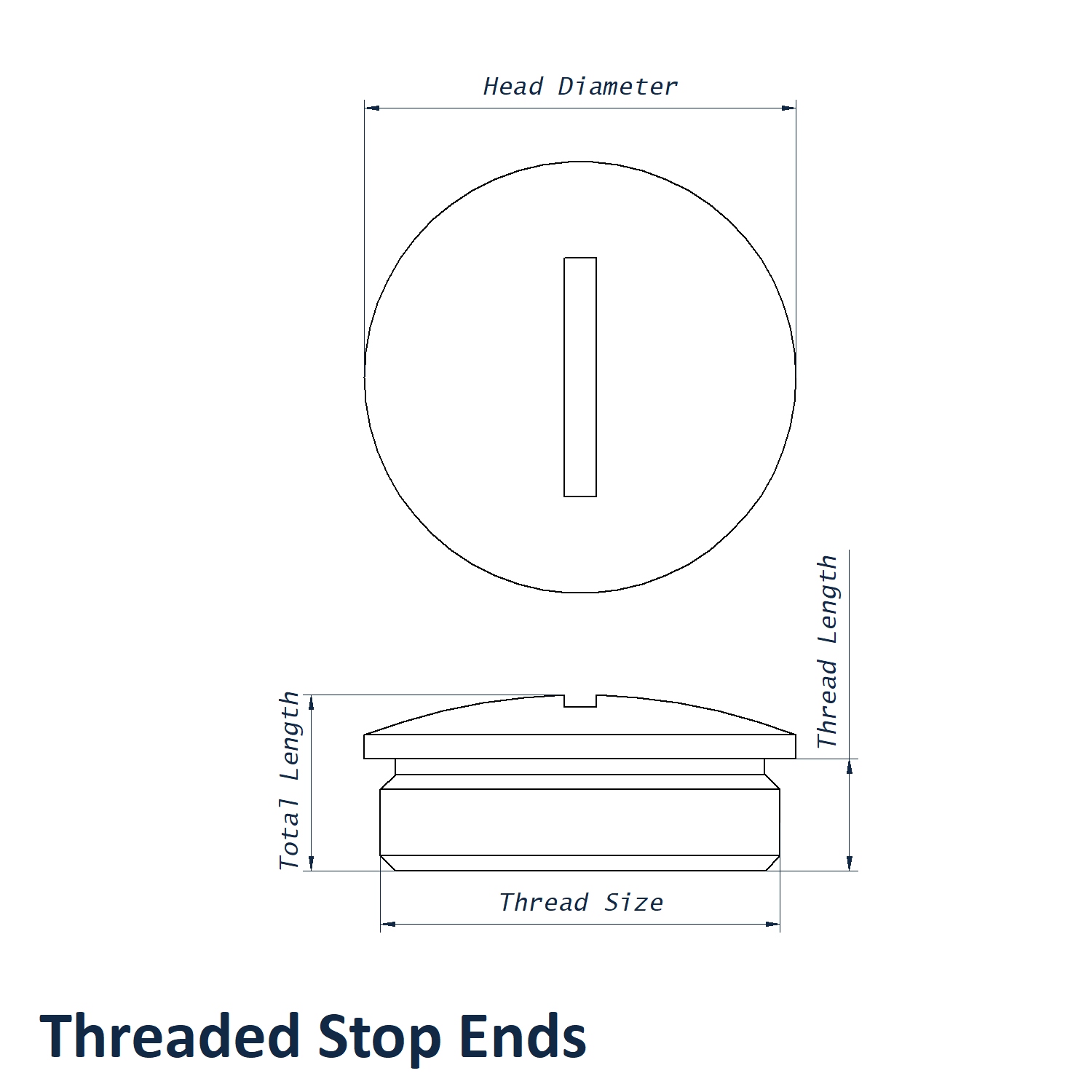

M32 x 1.5mm A1 Stainless Steel Threaded Stop End Dimensions
- Size: M32 x 1.5mm
- Thread Length: 8.0mm
- Total Length: 12.0mm
- Head Diameter: 35mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: A1 Stainless Steel
- Colour: Self-Colour
Key Benefits
- -200 °C - 250 °C temperature range matches the uploaded specification.
- IP54 rating is retained exactly from the supplied SKU data.
- Male-threaded screw-in design allows the closure to be removed for servicing or future modification.
- IP54 rating is retained exactly from the supplied product data.
See related sizes and materials in the Threaded Stop Ends category. For help checking thread size, IP rating or material suitability, contact our technical sales team on 01233 713581.
