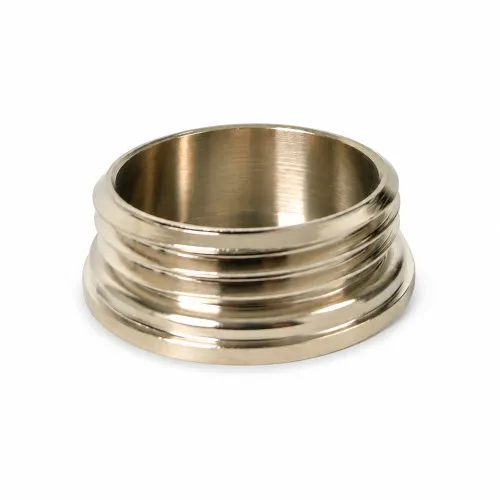

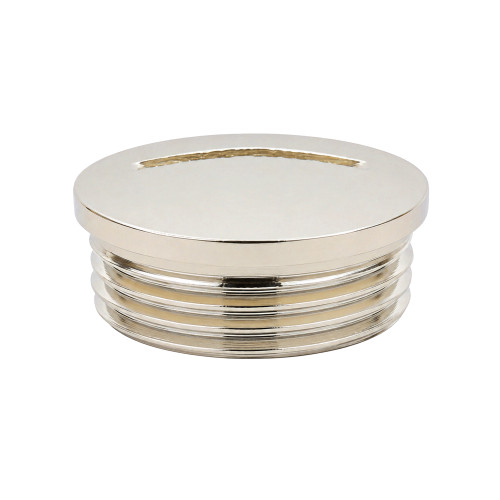

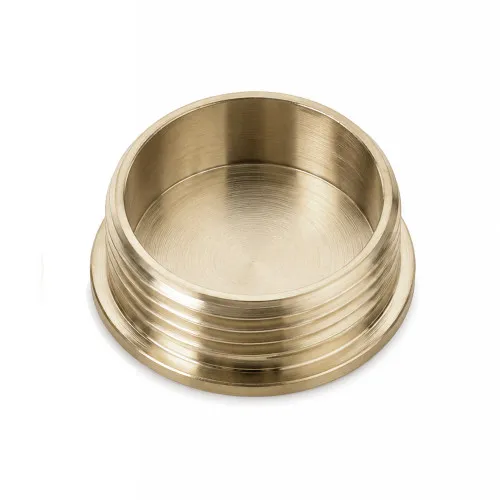

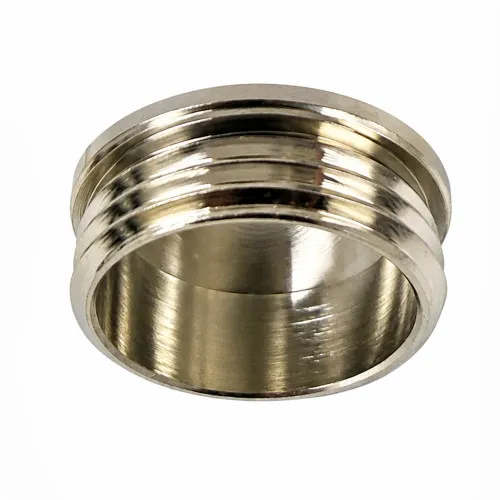

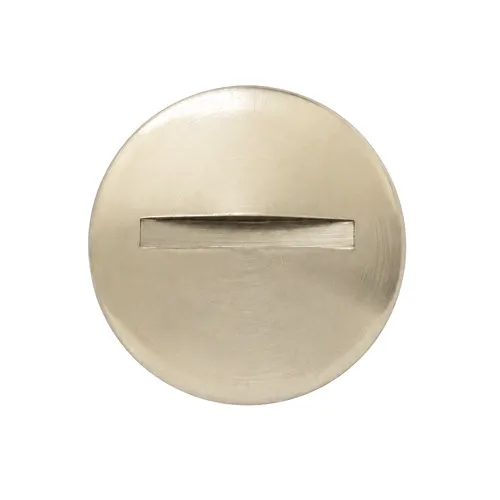

M20 Nickel Plated Brass Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.86 | £1.03 |
| 25 - 49 | £0.84 | £1.01 |
| 50 - 99 | £0.81 | £0.97 |
| 100 - 499 | £0.78 | £0.93 |
| 500 + | £0.75 | £0.90 |
£1.03 / each
Product Specification
| Size | M20 x 1.5mm |
| Material | Nickel Plated Brass |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 22mm |
| Thread Length | 6.5mm |
| Total Length | 9.5mm |
Frequently Bought Together
M20 x 1.5mm Threaded Brass Cable Gland (IP68) 6 - 13mm Cable | Nickel Plated - Waterproof
20.5mm Self Sealing Grommet IP67 – Conical – 8-13mm Cable (1-4mm Panel) | Silver Grey EPDM
Total Price: £0.00
M20 x 1.5mm Threaded Stop End | Self-Colour Nickel Plated Brass
Where unused threaded holes need protection on engineering assemblies and fabricated metalwork, this M20 x 1.5mm Threaded Stop End provides a removable closure. It uses Nickel Plated Brass construction with a 22mm head diameter, 9.5mm total length and 6.5mm male threaded section.
What Are Nickel Plated Brass Threaded Stop Ends?
Nickel Plated Brass threaded plugs protect unused threaded openings from dirt and debris while providing a finished appearance. Their screw-in design allows installation without specialist equipment and removal for servicing or future modification.
Common Applications
- Engineering Assemblies: Protects unused metric threads on manufactured parts, frames and mechanical assemblies.
- Fabricated Metalwork: Provides a clean finished closure for unused threaded holes in fabricated panels and metal structures.
- Maintenance and Servicing: Keeps redundant ports closed while allowing the stop end to be removed if future access is required.
- Workshop Equipment: Protects exposed threads on jigs, fixtures, machines and maintenance assemblies.

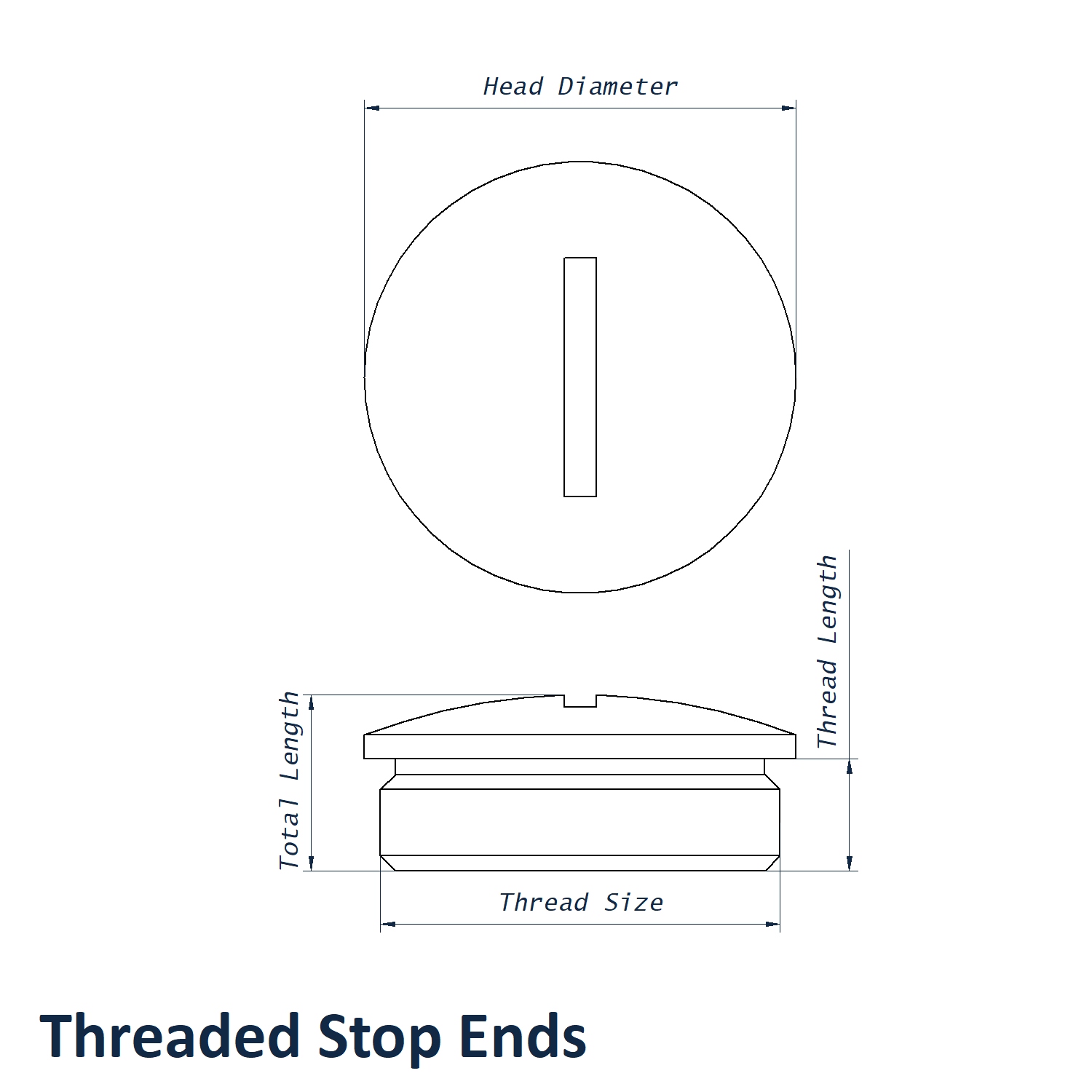

M20 x 1.5mm Nickel Plated Brass Threaded Stop End Dimensions
- Size: M20 x 1.5mm
- Thread Length: 6.5mm
- Total Length: 9.5mm
- Head Diameter: 22mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: Nickel Plated Brass
- Colour: Self-Colour
Key Benefits
- M20 x 1.5mm metric thread provides a clear compatibility reference.
- IP54 rating is retained exactly from the supplied product data.
- Nickel Plated Brass construction provides a robust metal option for threaded closures.
- Male-threaded screw-in design allows the closure to be removed for servicing or future modification.
View the complete Threaded Stop Ends range to compare thread sizes, materials and colours. For help selecting the correct threaded plug for your opening or operating environment, contact the Vital Parts technical sales team on 01233 713581.
