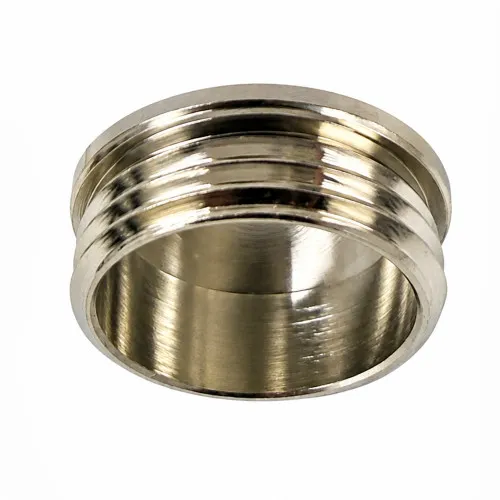

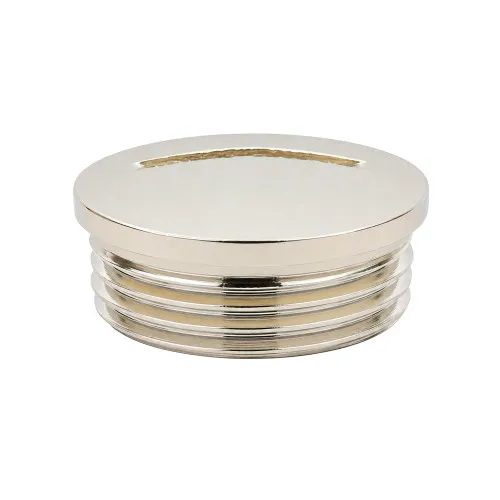

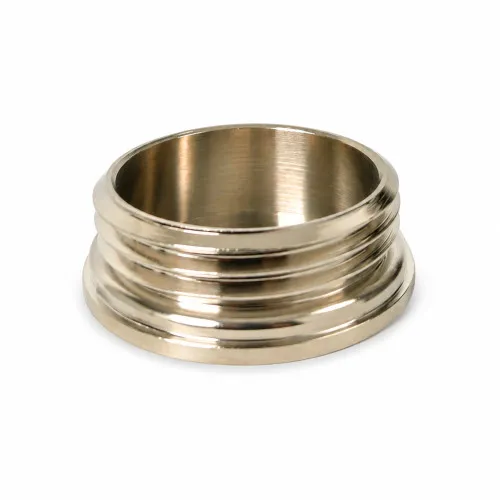

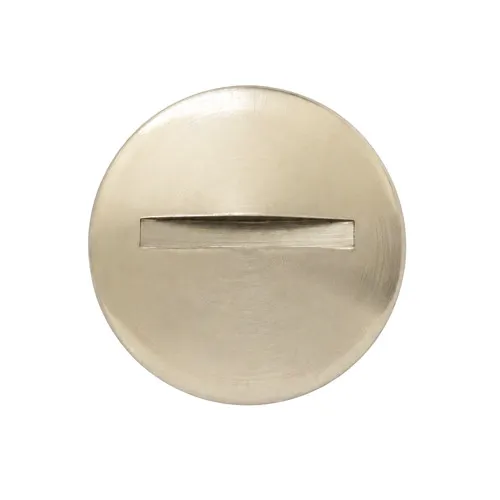

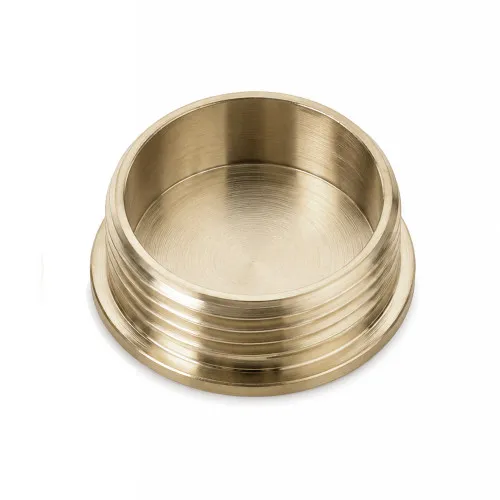

M63 Nickel Plated Brass Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £12.96 | £15.55 |
| 25 - 49 | £12.70 | £15.24 |
| 50 - 99 | £12.21 | £14.65 |
| 100 - 499 | £11.76 | £14.11 |
| 500 + | £11.34 | £13.61 |
£15.55 / each
Product Specification
| Size | M63 x 1.5mm |
| Material | Nickel Plated Brass |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 67mm |
| Thread Length | 10.0mm |
| Total Length | 16.0mm |
Frequently Bought Together
M63 x 1.5mm Threaded Brass Cable Gland (IP68) 34 - 48mm Cable | Nickel Plated - Waterproof
63.5mm Self Sealing Grommet IP67 – Conical – 34-45mm Cable (1-4mm Panel) | Light Grey EPDM
Total Price: £0.00
M63 x 1.5mm Threaded Stop End | Self-Colour Nickel Plated Brass
Ideal for maintenance applications and redundant threaded ports, this M63 x 1.5mm Threaded Stop End provides a simple screw-in closure with a 67mm head diameter. The Nickel Plated Brass body measures 16.0mm overall with a 10.0mm threaded section, helping protect unused threaded ports from dirt, dust and debris.
What Are Nickel Plated Brass Threaded Stop Ends?
A Nickel Plated Brass stop end closes exposed threaded holes while keeping the opening removable for later access. It is useful on electrical equipment, fabricated housings and industrial components where a metal closure with a plated finish is preferred.
Common Applications
- Machinery and Industrial Equipment: Closes unused threaded holes on machinery, housings and fabricated equipment while keeping the opening accessible for future servicing.
- Engineering Assemblies: Protects unused metric threads on manufactured parts, frames and mechanical assemblies.
- Equipment Housings: Helps protect exposed female threads from dirt, dust and debris during use, storage or maintenance.
- Control Panels: Closes unused threaded entries in suitable industrial control and automation equipment.

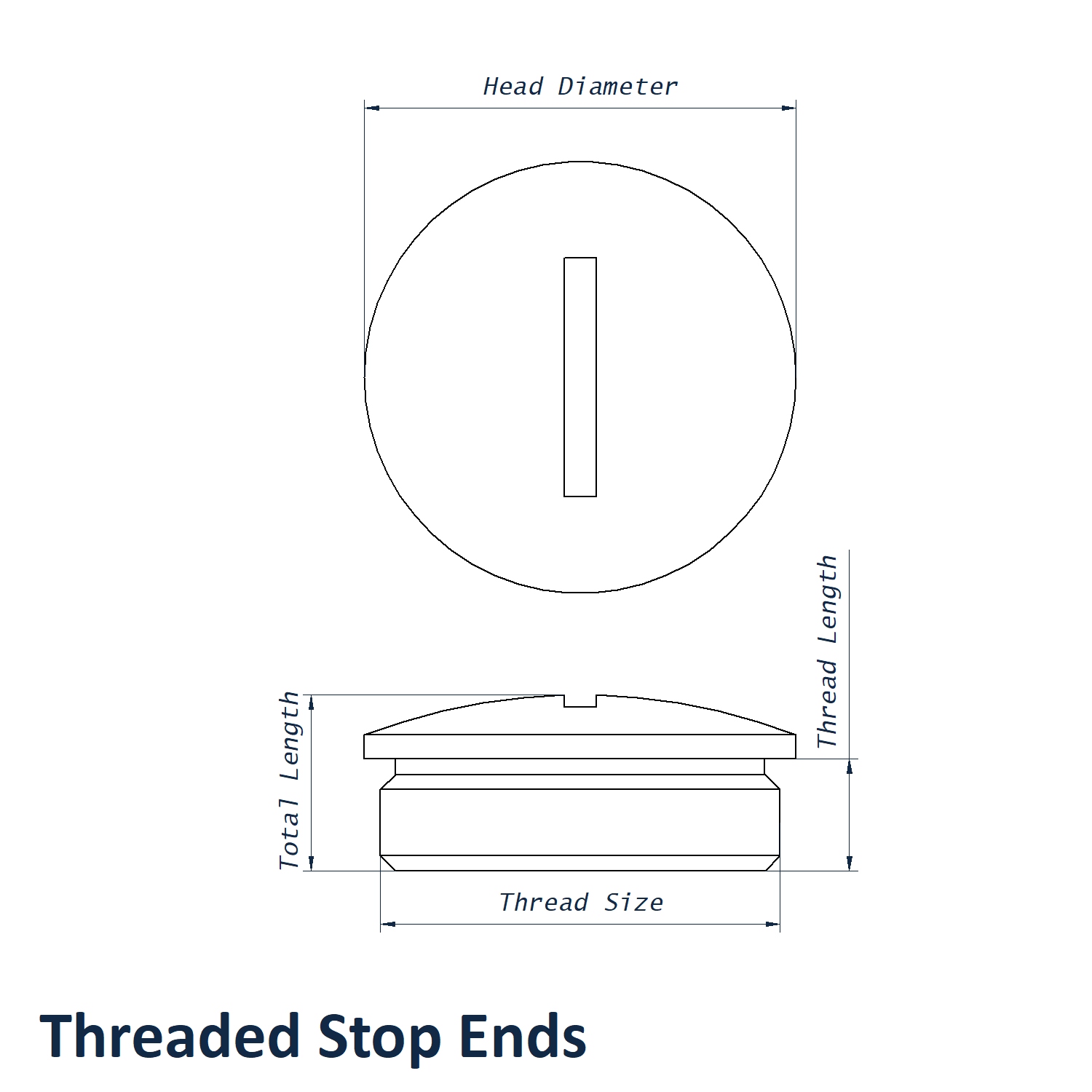

M63 x 1.5mm Nickel Plated Brass Threaded Stop End Dimensions
- Size: M63 x 1.5mm
- Thread Length: 10.0mm
- Total Length: 16.0mm
- Head Diameter: 67mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: Nickel Plated Brass
- Colour: Self-Colour
Key Benefits
- Nickel Plated Brass construction provides a robust metal option for threaded closures.
- Suitable for electrical enclosures, machinery panels and engineering assemblies.
- M63 x 1.5mm metric thread provides a clear compatibility reference.
- -200 °C - 250 °C temperature range matches the uploaded specification.
View the complete Threaded Stop Ends range to compare thread sizes, materials and colours. For help selecting the correct threaded plug for your opening or operating environment, contact the Vital Parts technical sales team on 01233 713581.
