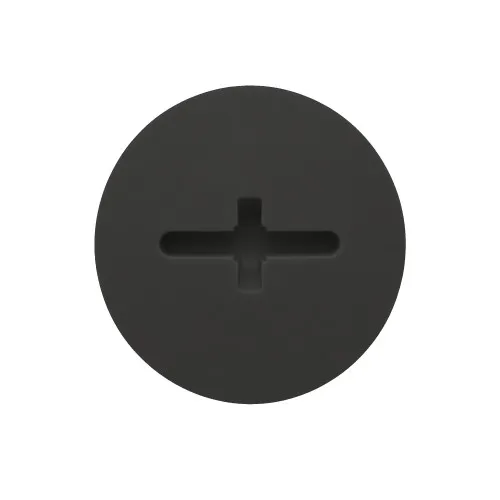

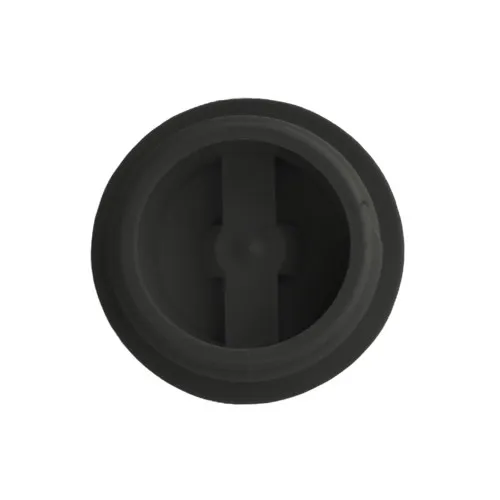

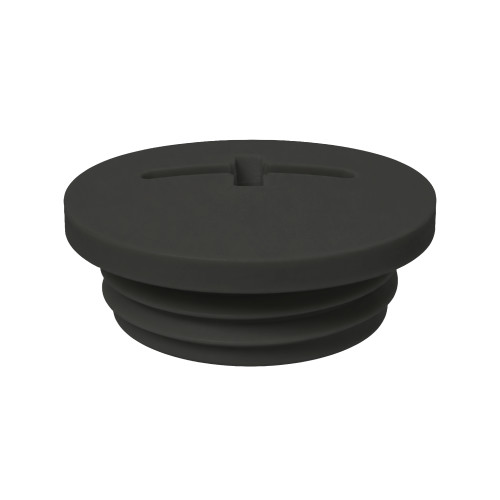

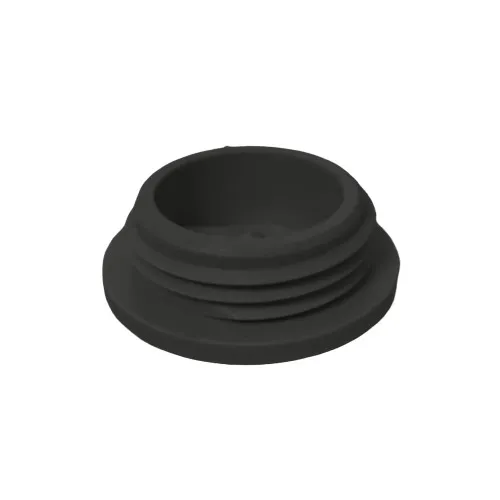

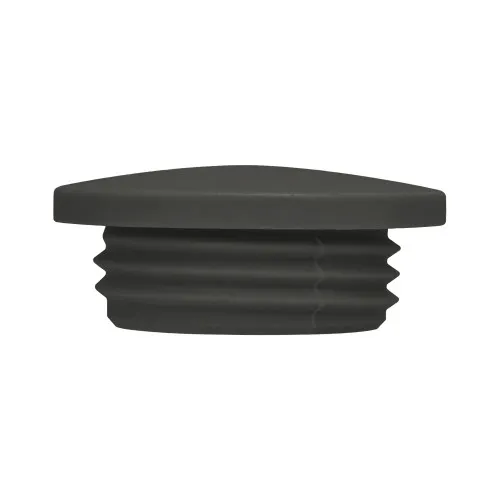

M20 Nylon Cable Gland Blanking Plug (IP56) | Black
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.31 | £0.37 |
| 25 - 49 | £0.30 | £0.36 |
| 50 - 99 | £0.29 | £0.35 |
| 100 - 499 | £0.28 | £0.33 |
| 500 + | £0.27 | £0.32 |
£0.37 / each
Product Specification
| Size | M20 x 1.5mm |
| Material | Nylon |
| Colour | Black (RAL 9005) |
| IP Rating | IP56 |
| Temperature Range | -40 °C - 100 °C |
| Head Diameter | 24mm |
| Thread Length | 6.0mm |
| Total Length | 9.5mm |
Frequently Bought Together
M20 Waterproof Strain Relief Grommet IP67 (For 20.5-20.7mm Hole) - 6-13mm Cable | Black
Total Price: £0.00
M20 x 1.5mm Threaded Stop End | Black (RAL 9005) Nylon
This M20 x 1.5mm Nylon Threaded Stop End is intended for control cabinets and panel installations. The Black (RAL 9005) component screws directly into a matching female thread and combines a 6.0mm thread length with the supplied IP56 rating and -40 °C - 100 °C operating range.
What Are Nylon Threaded Stop Ends?
Nylon stop ends protect internal threads and provide a clean finished closure without using a metal component. They can be installed and removed by screwing them into the matching threaded opening which makes them practical for servicing and future modifications.
Common Applications
- Equipment Housings: Helps protect exposed female threads from dirt, dust and debris during use, storage or maintenance.
- Maintenance and Servicing: Keeps redundant ports closed while allowing the stop end to be removed if future access is required.
- Workshop Equipment: Protects exposed threads on jigs, fixtures, machines and maintenance assemblies.
- Electrical Enclosures: Provides a removable closure for spare threaded entries in suitable cabinets, panels and control enclosures.

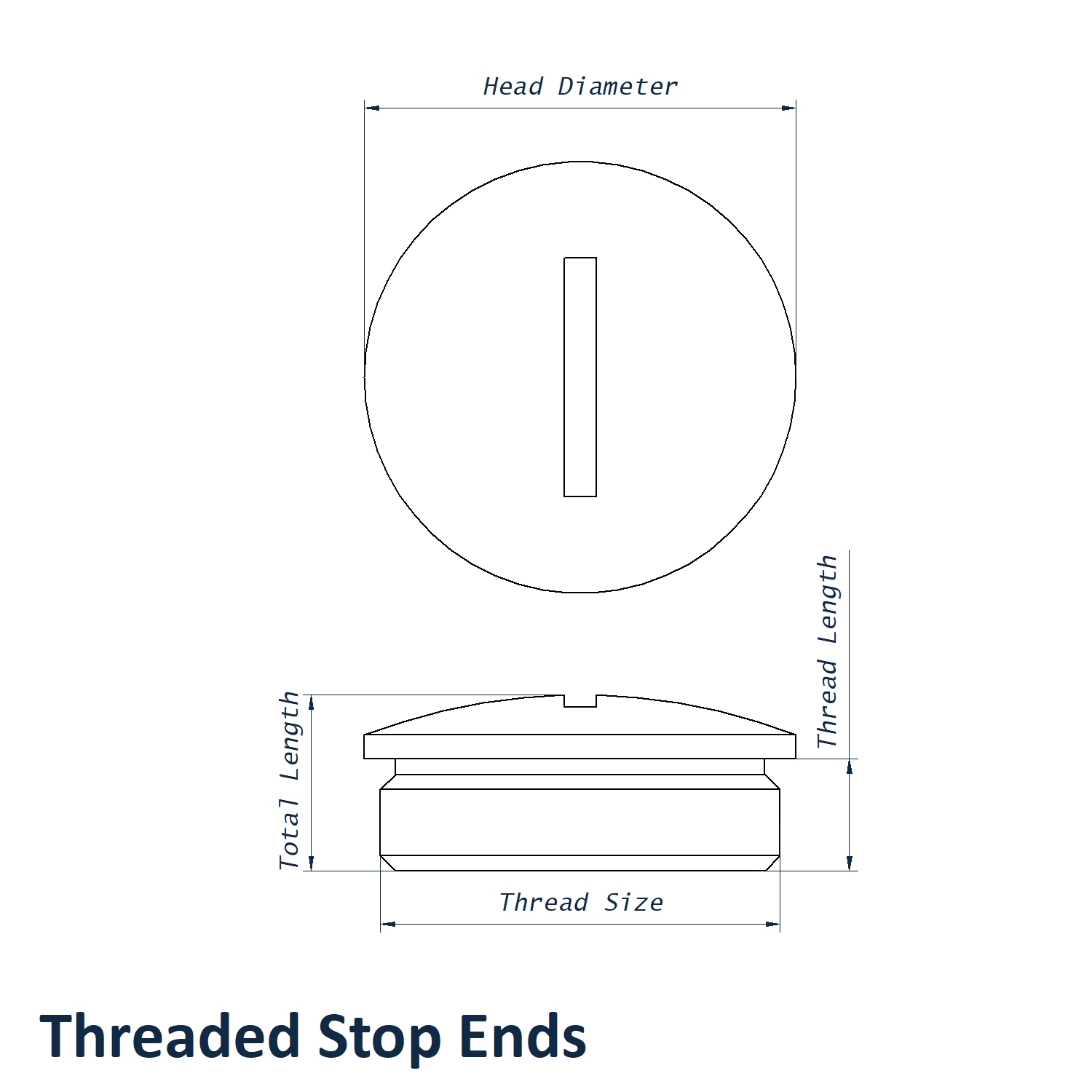

M20 x 1.5mm Nylon Threaded Stop End Dimensions
- Size: M20 x 1.5mm
- Thread Length: 6.0mm
- Total Length: 9.5mm
- Head Diameter: 24mm
- IP Rating: IP56
- Temperature Range: -40 °C - 100 °C
- Material: Nylon
- Colour: Black (RAL 9005)
Key Benefits
- IP56 rating is retained exactly from the supplied product data.
- IP56 rating is retained exactly from the supplied SKU data.
- Suitable for electrical panels, equipment housings and general manufacturing applications.
- 24mm head diameter provides the stated finished outside dimension.
Browse the full Threaded Stop Ends range for removable closures used on machinery, enclosures and engineering assemblies. Technical support is available on 01233 713581.
