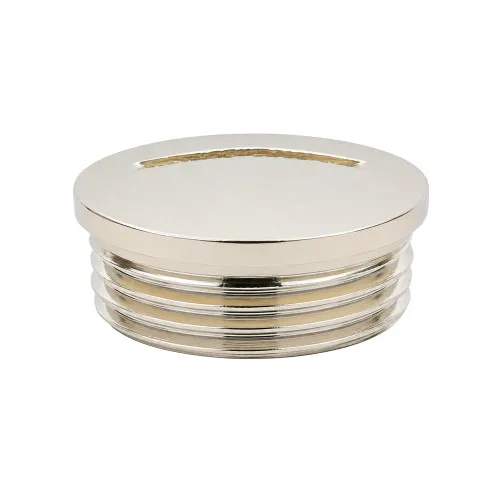

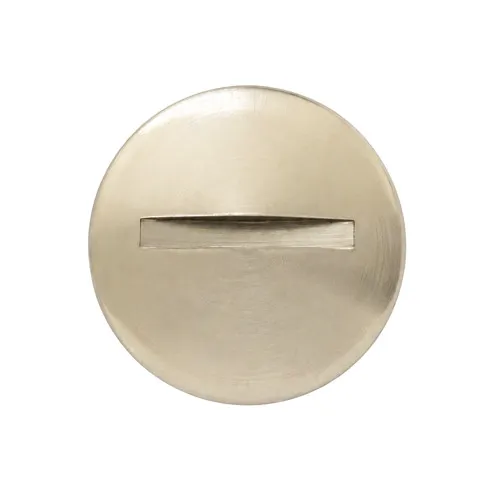

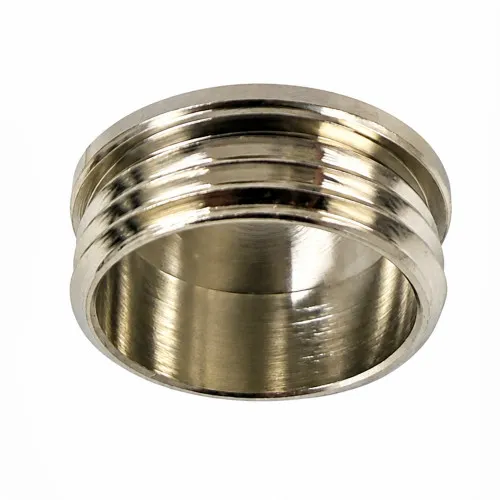

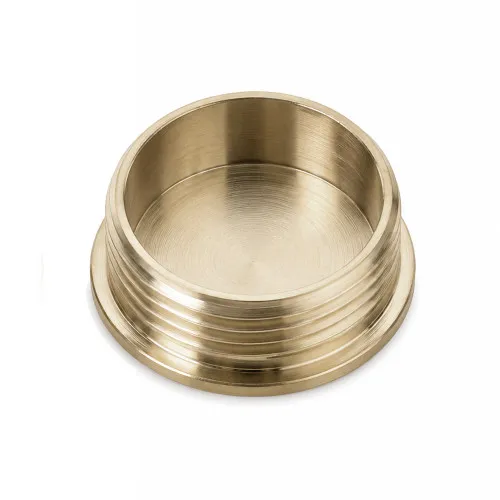

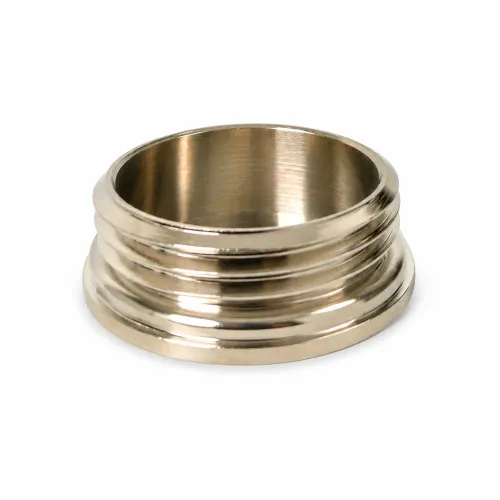

M75 Nickel Plated Brass Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £34.23 | £41.07 |
| 25 - 49 | £33.54 | £40.25 |
| 50 - 99 | £32.25 | £38.70 |
| 100 - 499 | £31.06 | £37.27 |
| 500 + | £29.95 | £35.94 |
£41.07 / each
Product Specification
| Size | M75 x 1.5mm |
| Material | Nickel Plated Brass |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 80mm |
| Thread Length | 12.0mm |
| Total Length | 18.0mm |
Frequently Bought Together
M63 x 1.5mm Threaded Brass Cable Gland (IP68) 34 - 48mm Cable | Nickel Plated - Waterproof

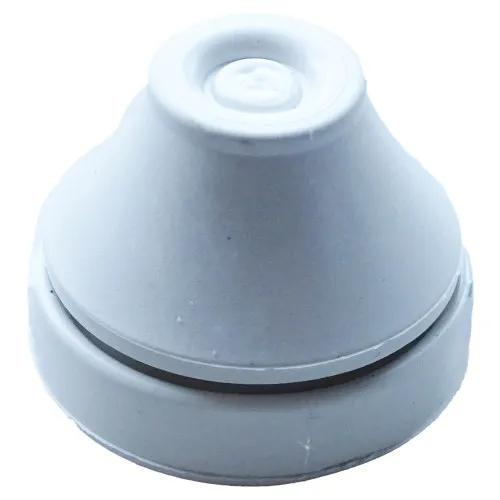

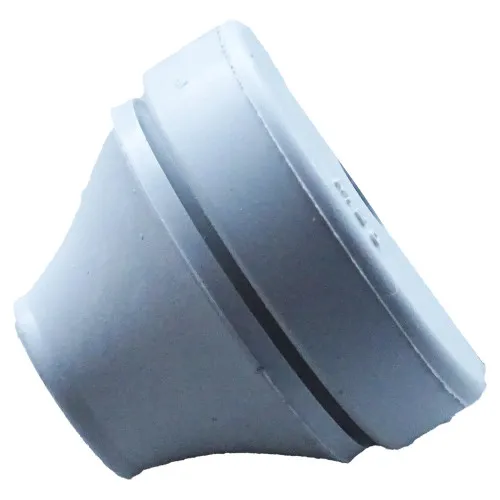

63.5mm Self Sealing Grommet IP67 – Conical – 34-45mm Cable (1-4mm Panel) | Light Grey EPDM
Total Price: £0.00
M75 x 1.5mm Threaded Stop End | Self-Colour Nickel Plated Brass
Providing a removable closure for industrial cabinets and equipment housings, this M75 x 1.5mm Nickel Plated Brass stop end screws directly into a matching female thread. The Self-Colour component has a 12.0mm thread length, 18.0mm total length and 80mm head diameter with a stated IP54 rating.
What Are Nickel Plated Brass Threaded Stop Ends?
Nickel Plated Brass threaded plugs protect unused threaded openings from dirt and debris while providing a finished appearance. Their screw-in design allows installation without specialist equipment and removal for servicing or future modification.
Common Applications
- Automotive Components: Closes redundant threaded openings on suitable vehicle, workshop and mechanical components.
- Equipment Housings: Helps protect exposed female threads from dirt, dust and debris during use, storage or maintenance.
- Control Panels: Closes unused threaded entries in suitable industrial control and automation equipment.
- Panel Building: Provides a finished removable plug for unused threaded holes in compatible enclosure panels.

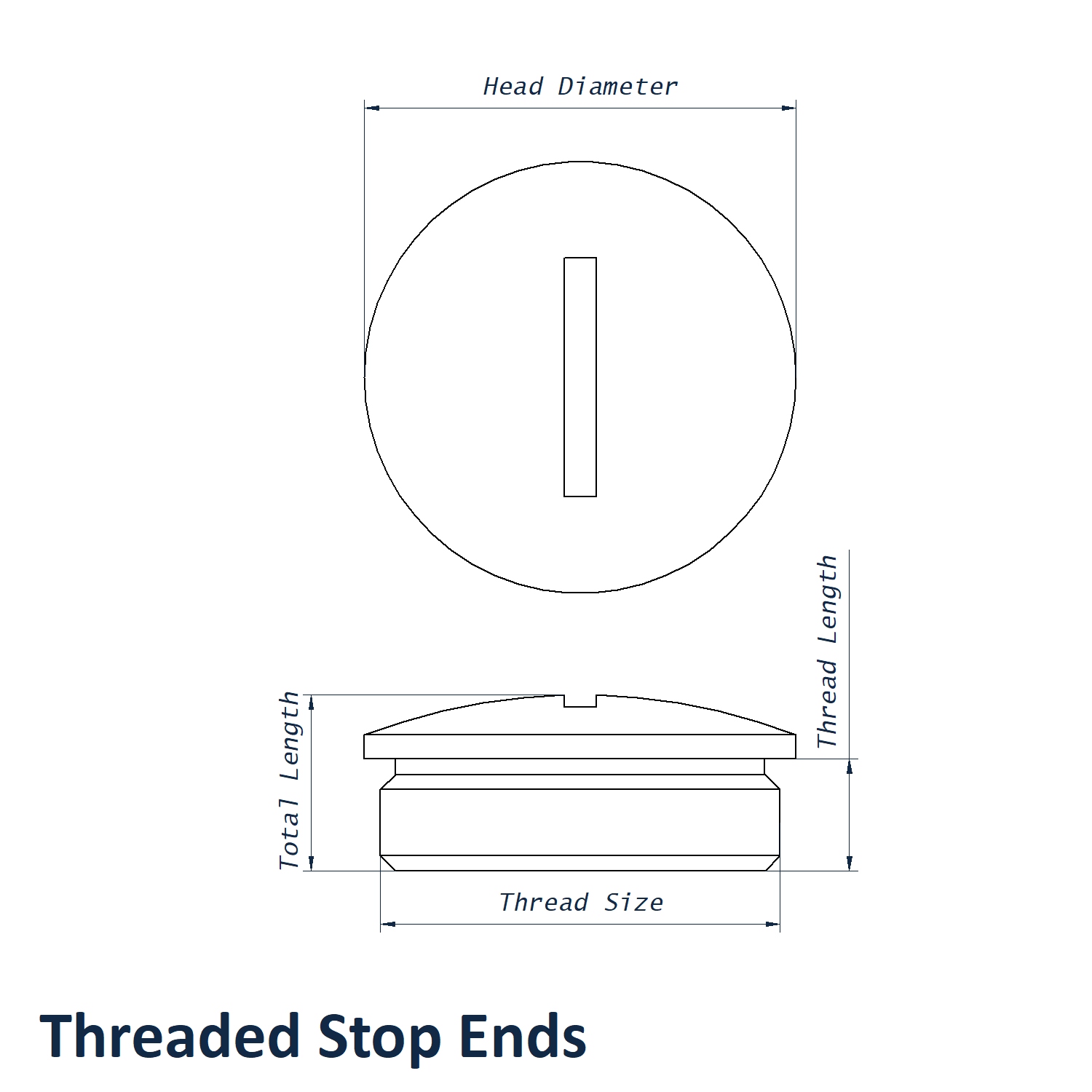

M75 x 1.5mm Nickel Plated Brass Threaded Stop End Dimensions
- Size: M75 x 1.5mm
- Thread Length: 12.0mm
- Total Length: 18.0mm
- Head Diameter: 80mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: Nickel Plated Brass
- Colour: Self-Colour
Key Benefits
- Self-Colour specification is retained exactly from the uploaded data.
- Male-threaded screw-in design allows the closure to be removed for servicing or future modification.
- 12.0mm thread length and 18.0mm total length match the uploaded SKU specification.
- Nickel Plated Brass construction provides a robust metal option for threaded closures.
Further options are available through the Vital Parts Threaded Stop Ends category in A1 Stainless Steel, Nickel Plated Brass and Nylon. For sizing or material support, speak with our team on 01233 713581.
