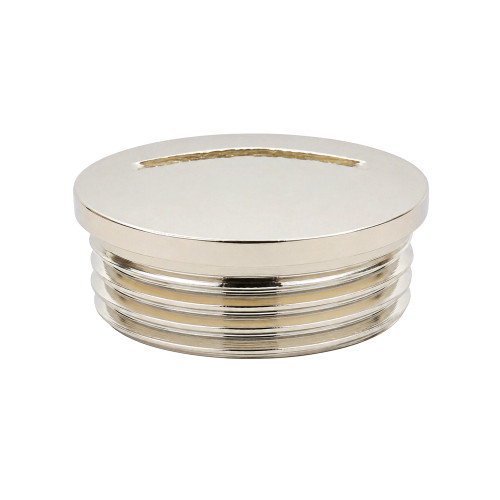

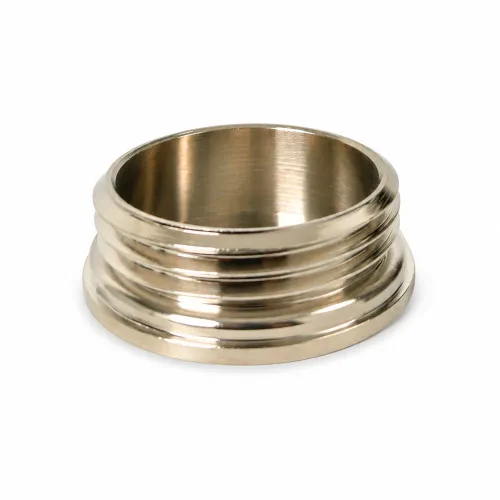

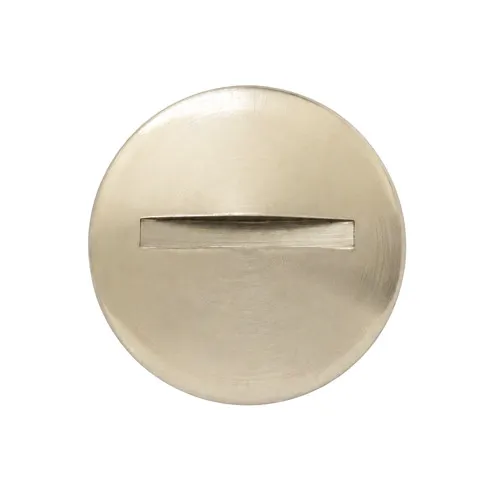

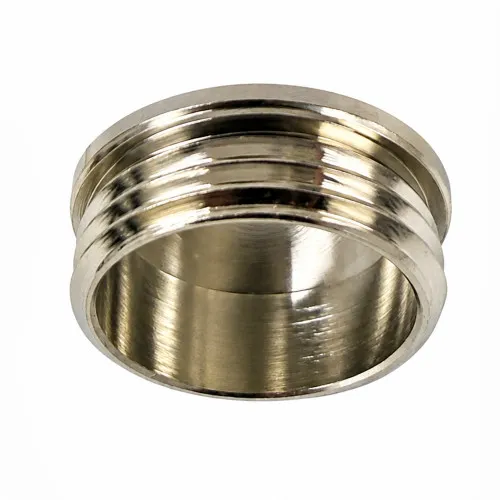

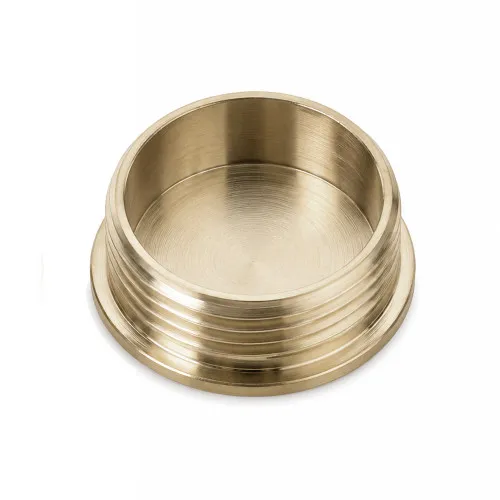

M50 Nickel Plated Brass Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £7.31 | £8.77 |
| 25 - 49 | £7.16 | £8.59 |
| 50 - 99 | £6.88 | £8.26 |
| 100 - 499 | £6.63 | £7.96 |
| 500 + | £6.39 | £7.67 |
£8.77 / each
Product Specification
| Size | M50 x 1.5mm |
| Material | Nickel Plated Brass |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 54mm |
| Thread Length | 9.0mm |
| Total Length | 15.0mm |
Frequently Bought Together
M50 x 1.5mm Threaded Brass Cable Gland (IP68) 21 - 35mm Cable | Nickel Plated - Waterproof
50.5mm Self Sealing Grommet IP67 – Conical – 27-35mm Cable (1-4mm Panel) | Black Neoprene
Total Price: £0.00
M50 x 1.5mm Threaded Stop End | Self-Colour Nickel Plated Brass
Suitable for maintenance applications and redundant threaded ports, this M50 x 1.5mm male-threaded stop end is produced from Nickel Plated Brass in a Self-Colour finish. The 9.0mm thread length fits a compatible female opening while the supplied IP54 rating and -200 °C - 250 °C temperature range are retained from the SKU data.
What Are Nickel Plated Brass Threaded Stop Ends?
A Nickel Plated Brass stop end closes exposed threaded holes while keeping the opening removable for later access. It is useful on electrical equipment, fabricated housings and industrial components where a metal closure with a plated finish is preferred.
Common Applications
- Control Panels: Closes unused threaded entries in suitable industrial control and automation equipment.
- Workshop Equipment: Protects exposed threads on jigs, fixtures, machines and maintenance assemblies.
- Electrical Enclosures: Provides a removable closure for spare threaded entries in suitable cabinets, panels and control enclosures.
- Fabricated Metalwork: Provides a clean finished closure for unused threaded holes in fabricated panels and metal structures.

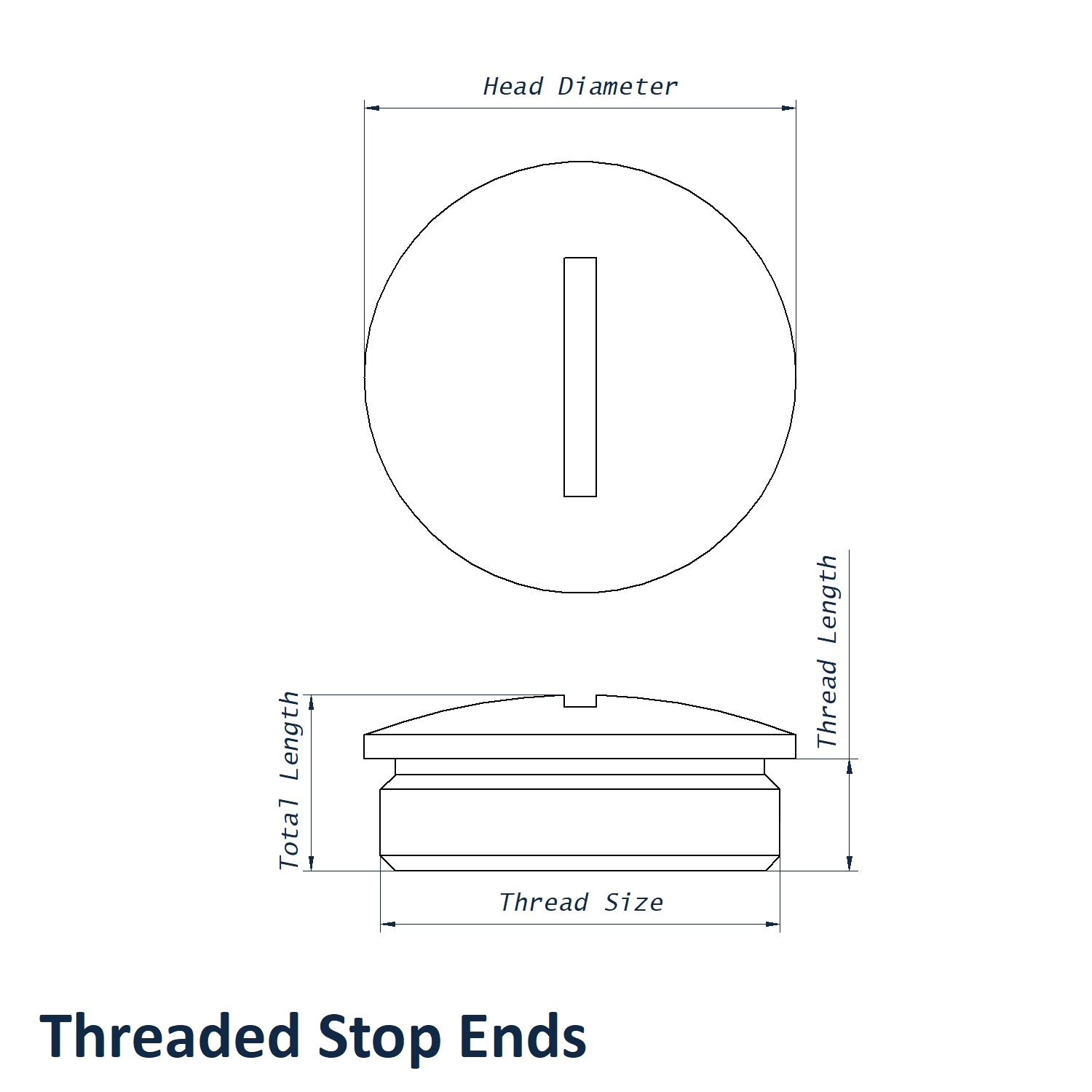

M50 x 1.5mm Nickel Plated Brass Threaded Stop End Dimensions
- Size: M50 x 1.5mm
- Thread Length: 9.0mm
- Total Length: 15.0mm
- Head Diameter: 54mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: Nickel Plated Brass
- Colour: Self-Colour
Key Benefits
- -200 °C - 250 °C temperature range matches the uploaded specification.
- IP54 rating matches the supplied product specification.
- Male-threaded screw-in design allows the closure to be removed for servicing or future modification.
- IP54 rating is retained exactly from the supplied product data.
See related sizes and materials in the Threaded Stop Ends category. For help checking thread size, IP rating or material suitability, contact our technical sales team on 01233 713581.
