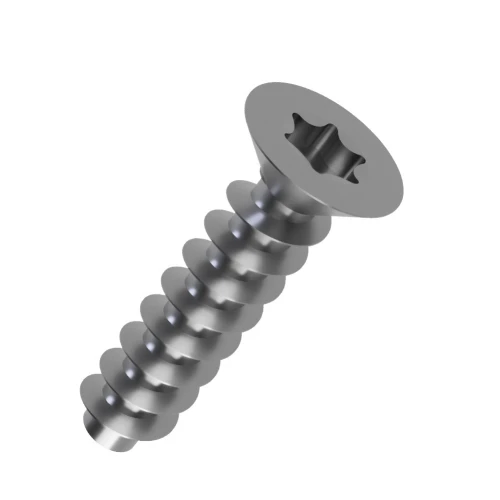

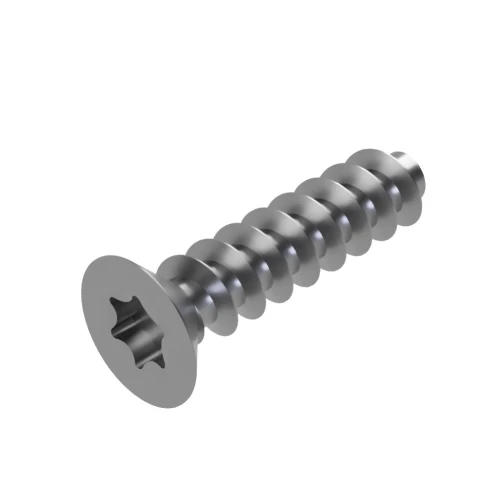

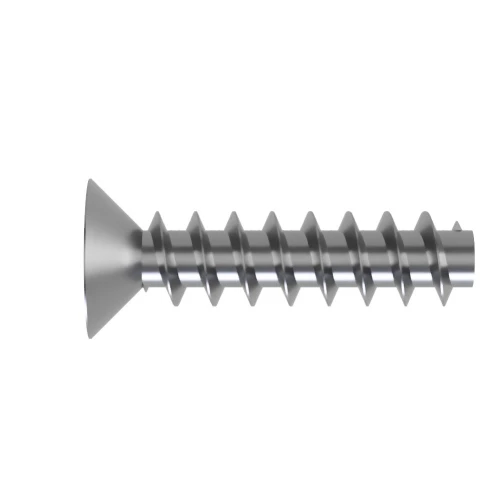

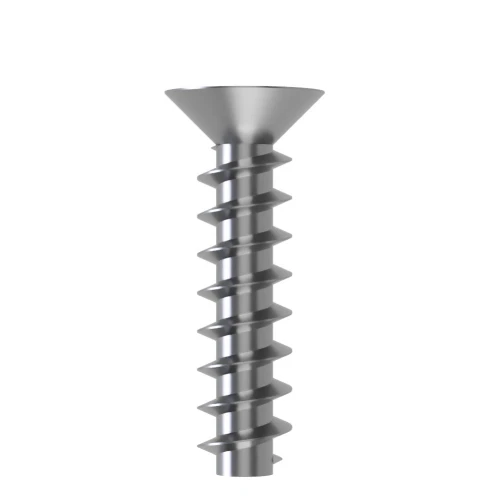

3.5mm x 10mm Torx Countersunk Screw for Hard Plastics (PT45) - T10 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.57 | £0.69 |
| 50 - 99 | £0.35 | £0.42 |
| 100 - 249 | £0.23 | £0.28 |
| 250 - 499 | £0.17 | £0.21 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.08 | £0.10 |
£0.69 / each
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 10mm |
| Material | A2 Stainless Steel |
| Head Diameter | 6.30mm |
| Head Height | 1.65mm |
| Drive | T10 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3.5mm x 10mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Developed for consumer electronics and appliance housings, this 3.5mm x 10mm Torx Countersunk Screw is part of the PT45 range for hard plastics. The trilobular 45° thread helps form a secure mating thread in compatible materials such as polycarbonate and fibre-reinforced plastics.
What Are Torx Countersunk PT45 Screws?
A Torx Countersunk PT45 screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful where secure engagement, flush installation and a strong drive-to-strip ratio are required.
Common Applications
- Automotive Components: Fastens rigid plastic trim and moulded parts where a low-profile screw head and Torx drive are beneficial.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Outdoor Equipment: Provides an A2 Stainless Steel fastening option for suitable exterior hard-plastic assemblies.
- Fibre-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.

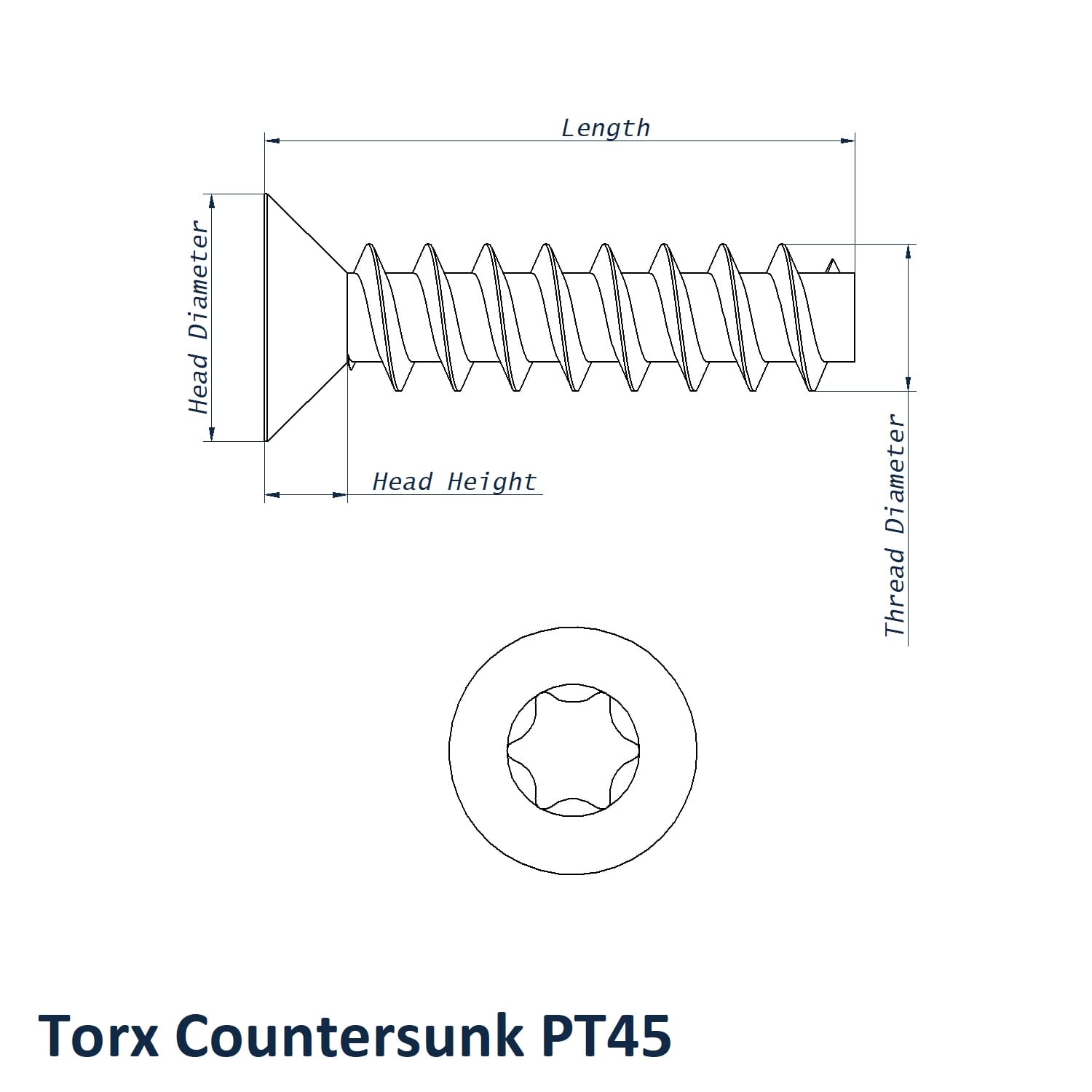

3.5mm x 10mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 10mm
- Head Diameter: 6.30mm
- Head Height: 1.65mm
- Drive: T10
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
- 3.5mm thread size and 10mm thread length provide the primary fastening dimensions.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
Browse the full Torx Countersunk PT45 Screws for Hard Plastics category. You can also use our Screws for Plastic Engineering Guide for PT30/PT45 selection, pilot-hole design and installation guidance. Technical support is available on 01233 713581.
