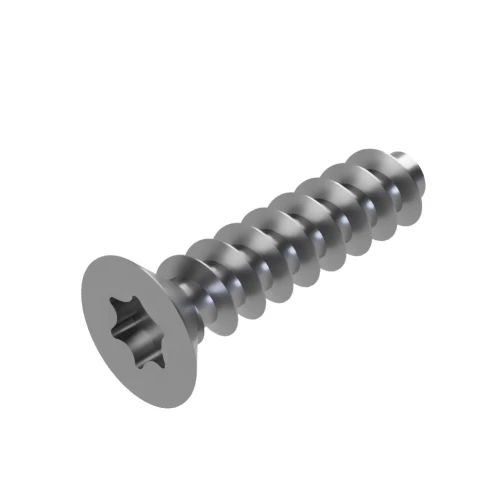

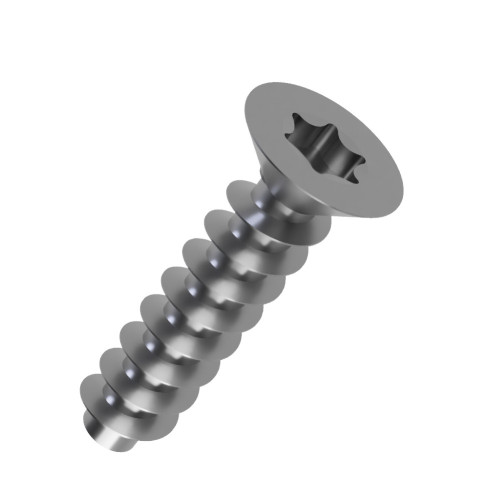

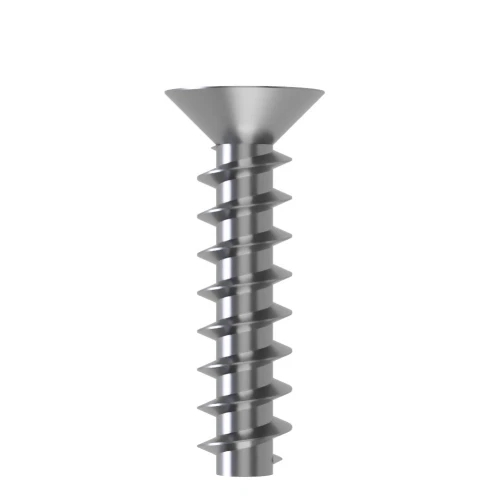

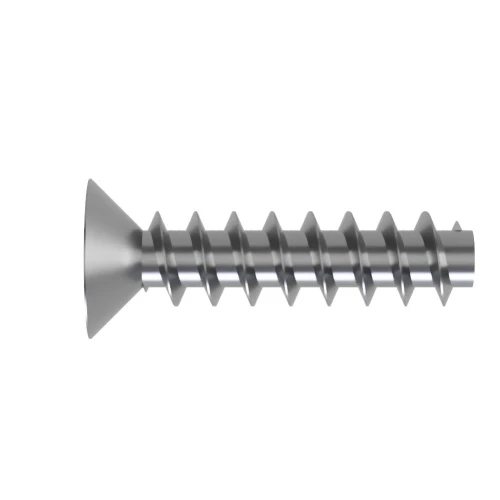

3.5mm x 16mm Torx Countersunk Screw for Hard Plastics (PT45) - T10 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.62 | £0.75 |
| 50 - 99 | £0.38 | £0.45 |
| 100 - 249 | £0.25 | £0.30 |
| 250 - 499 | £0.18 | £0.22 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.09 | £0.11 |
£0.75 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 16mm |
| Material | A2 Stainless Steel |
| Head Diameter | 6.30mm |
| Head Height | 1.65mm |
| Drive | T10 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3.5mm x 16mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
For engineering plastics used in manufactured assemblies, this 3.5mm x 16mm Torx Countersunk PT45 Screw provides a purpose-designed alternative to a conventional self tapping screw. Its 45° trilobular thread supports reliable engagement in harder plastic bosses while the countersunk head keeps the assembly low profile.
What Are Torx Countersunk PT45 Screws?
Torx Countersunk PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is suited to materials such as polycarbonate and fibre-reinforced plastics while the countersunk head allows a flush installation into a matching recess.
Common Applications
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes and countersinks.
- Outdoor Equipment: Provides an A2 Stainless Steel fastening option for suitable exterior hard-plastic assemblies.
- Electrical Enclosures: Secures hard-plastic covers and panels where a countersunk surface finish is required.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded components.

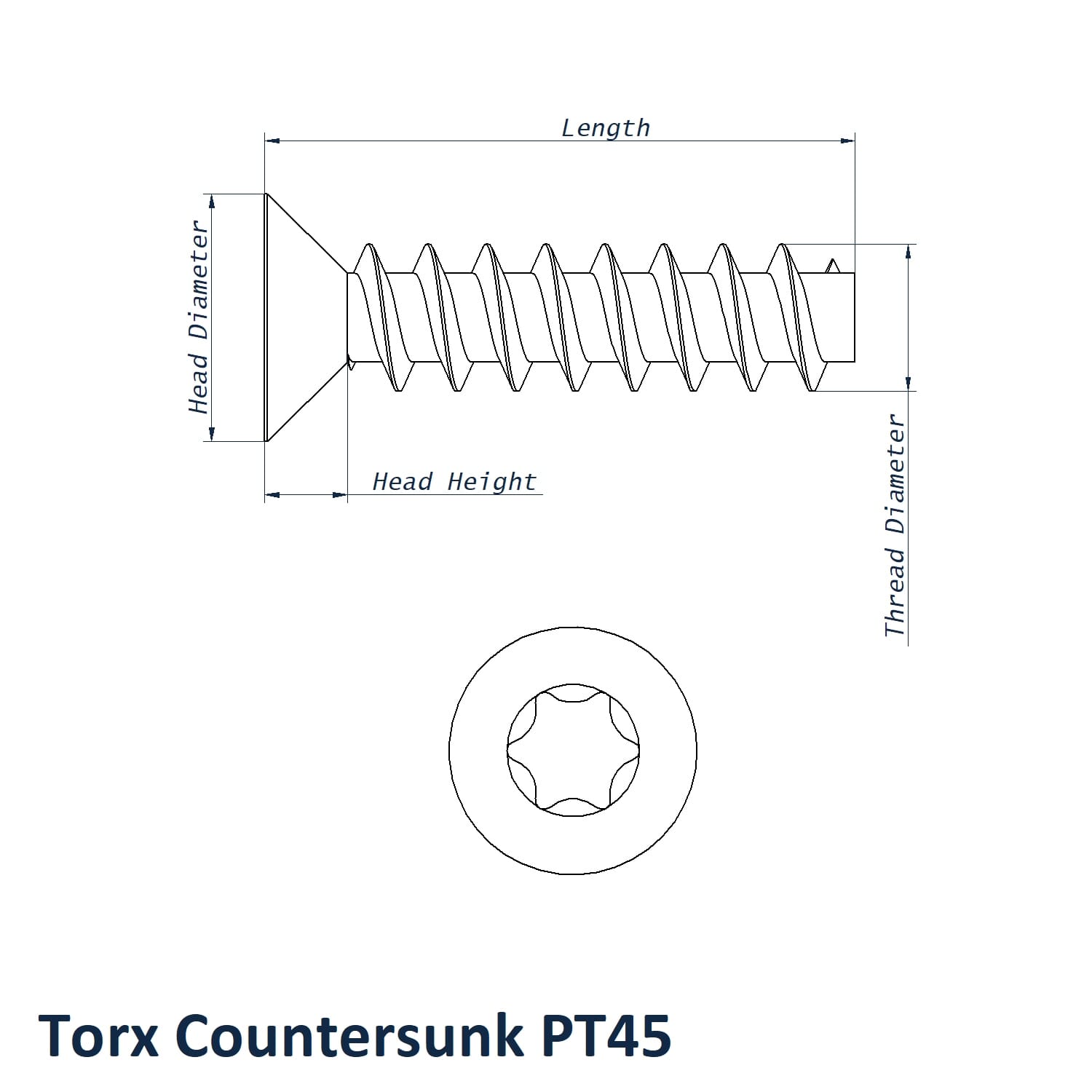

3.5mm x 16mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 16mm
- Head Diameter: 6.30mm
- Head Height: 1.65mm
- Drive: T10
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
- 3.5mm thread size and 16mm thread length provide the primary fastening dimensions.
- T10 Torx drive provides positive engagement and efficient torque transfer.
- A2 Stainless Steel construction provides improved corrosion resistance for suitable demanding environments.
View the complete Torx Countersunk PT45 Screws for Hard Plastics range for alternative sizes. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
