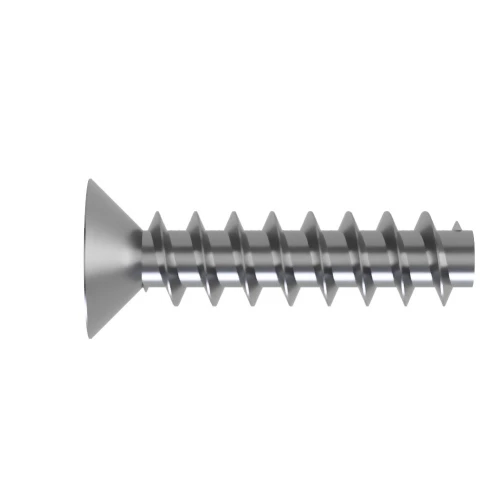

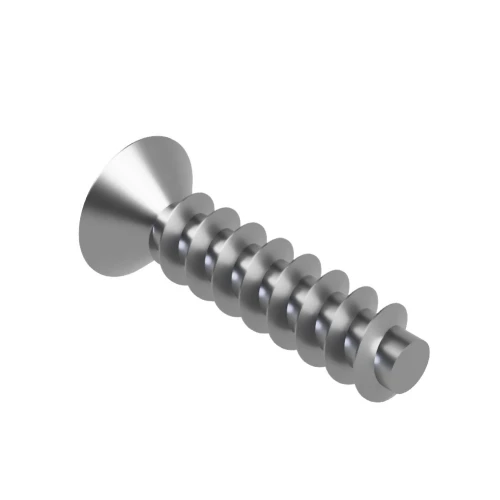

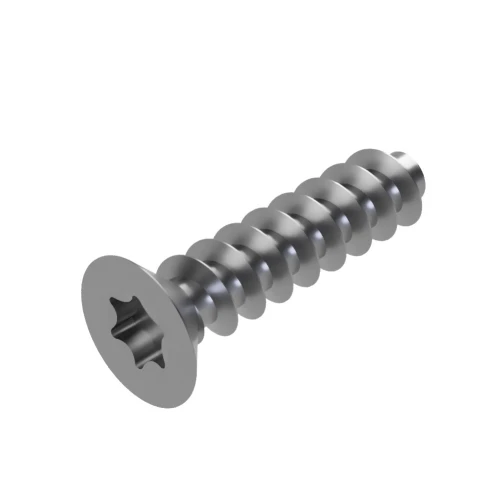

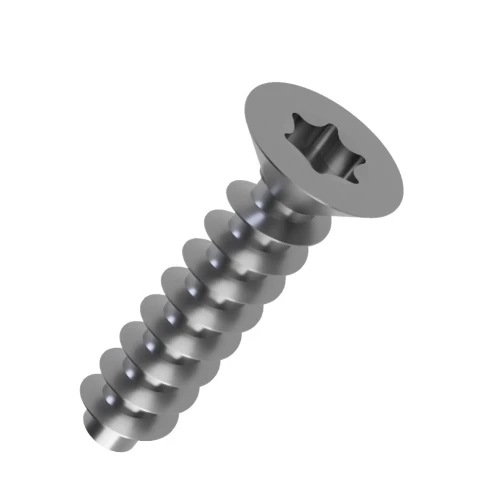

3.5mm x 20mm Torx Countersunk Screw for Hard Plastics (PT45) - T10 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.44 | £0.53 |
| 50 - 99 | £0.27 | £0.32 |
| 100 - 249 | £0.17 | £0.21 |
| 250 - 499 | £0.13 | £0.16 |
| 500 - 999 | £0.11 | £0.13 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
£0.53 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 20mm |
| Material | A2 Stainless Steel |
| Head Diameter | 6.30mm |
| Head Height | 1.65mm |
| Drive | T10 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3.5mm x 20mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Offering a thread-forming solution for polycarbonate mouldings and reinforced plastic components, this 3.5mm x 20mm PT45 Screw combines a Countersunk head with a T10 Torx recess. The A2 Stainless Steel fastener uses a shorter 45° thread and trilobular body to suit compatible hard plastics and reinforced materials.
What Are Torx Countersunk PT45 Screws?
Torx Countersunk PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is suited to materials such as polycarbonate and fibre-reinforced plastics while the countersunk head allows a flush installation into a matching recess.
Common Applications
- Consumer Electronics: Secures hard-plastic casings and panels without leaving a prominent head above the surface.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes and countersinks.
- Food and Catering Equipment: Supports suitable rigid-plastic assemblies where corrosion-resistant A2 Stainless Steel is preferred.
- Electrical Enclosures: Secures hard-plastic covers and panels where a countersunk surface finish is required.

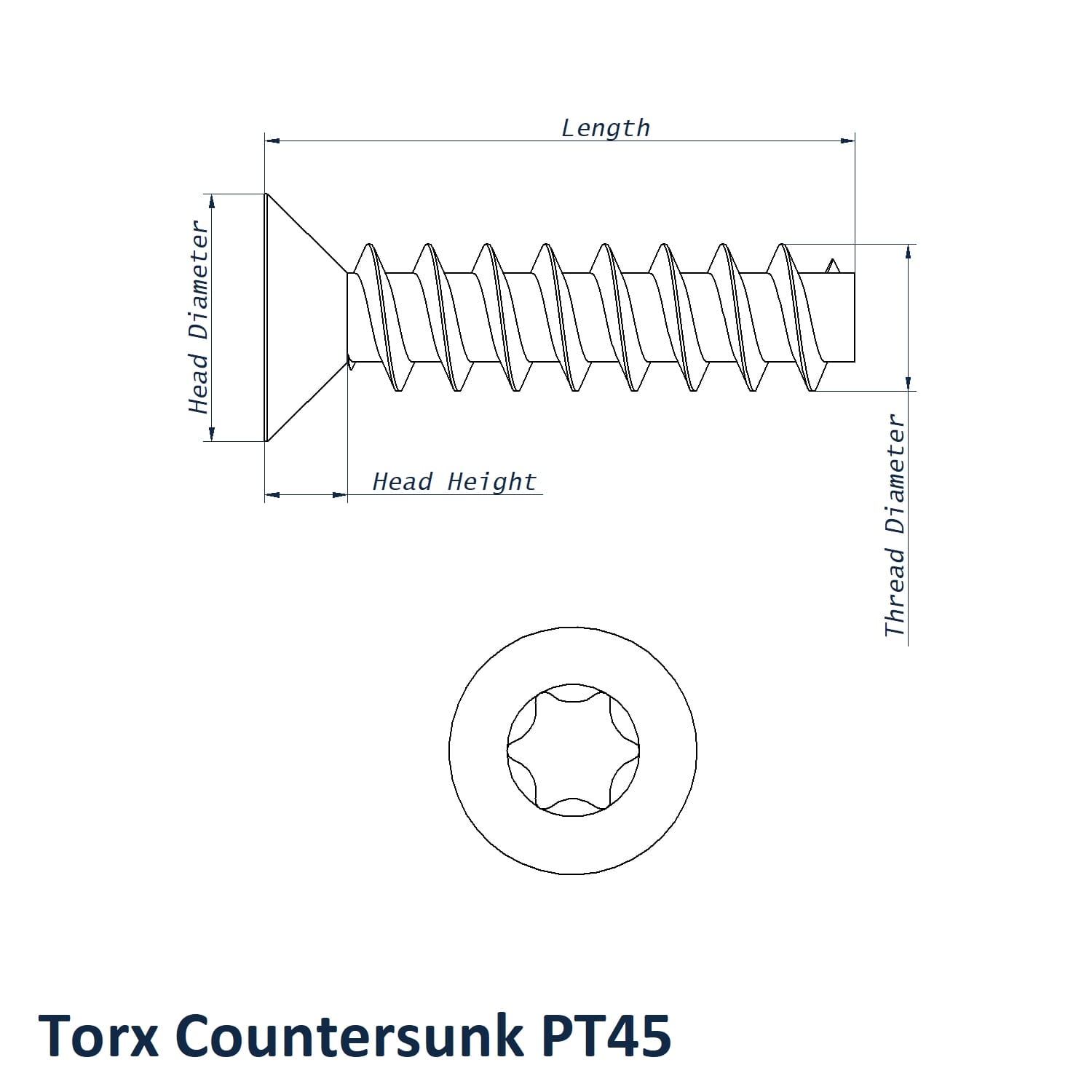

3.5mm x 20mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 20mm
- Head Diameter: 6.30mm
- Head Height: 1.65mm
- Drive: T10
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- The engineering guide provides PT45 pilot-hole tables, boss-sizing guidance and thread-selection information.
- 6.30mm head diameter and 1.65mm head height match the uploaded SKU specification.
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Correct pilot-hole diameter, boss size and countersink geometry should be selected for the material being assembled.
Compare other sizes in the Vital Parts Torx Countersunk PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
