3.5mm x 12mm Torx Pan Screw for Hard Plastics (PT45) - T10 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.24 | £0.29 |
| 50 - 99 | £0.14 | £0.17 |
| 100 - 249 | £0.10 | £0.12 |
| 250 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.06 | £0.07 |
| 1000 - 4999 | £0.05 | £0.06 |
| 5000 + | £0.03 | £0.04 |
£0.29 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 12mm |
| Material | Steel BZP |
| Head Diameter | 6.00mm |
| Head Height | 2.30mm |
| Drive | T10 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
3.5mm x 12mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Built for polycarbonate mouldings and rigid plastic components, this 3.5mm x 12mm PT45 Screw uses a Pan head, T10 Torx drive and Bright Zinc Plated Steel construction. The specialised thread form is designed for harder plastics where a shorter thread profile and strong drive-to-strip performance are useful.
What Are Torx Pan PT45 Screws?
Torx Pan PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics. The Torx drive offers high contact area for efficient torque transfer.
Common Applications
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.
- Automotive Components: Fastens rigid plastic trim, housings and moulded components used in vehicle assemblies.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.

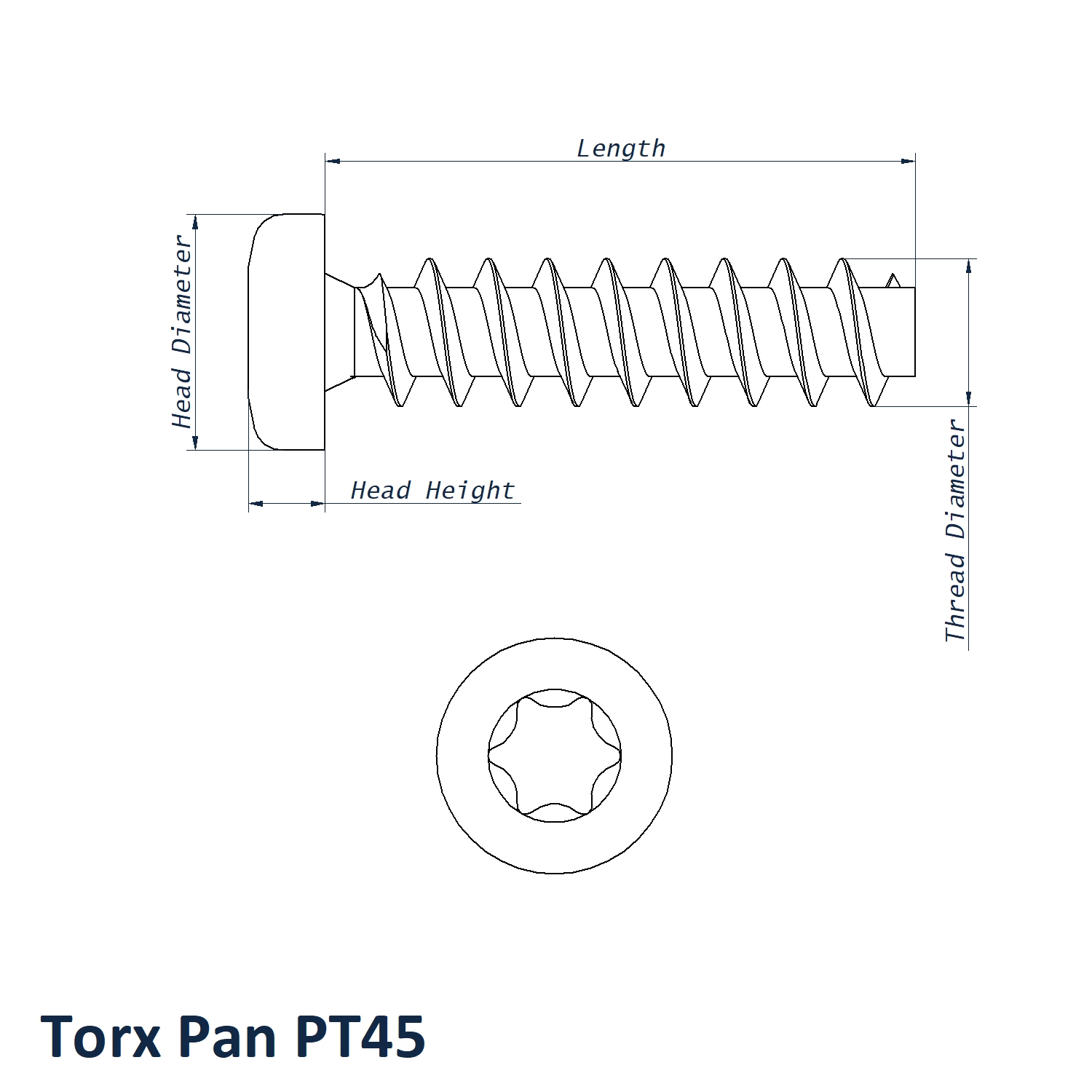

3.5mm x 12mm Torx Pan PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 12mm
- Head Diameter: 6.00mm
- Head Height: 2.30mm
- Drive: T10
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor hard-plastic assemblies.
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
- 6.00mm head diameter and 2.30mm head height match the uploaded SKU specification.
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
Browse the full Torx Pan PT45 Screws for Hard Plastics category for Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options. You can also use our Screws for Plastic Engineering Guide for PT30/PT45 selection and installation guidance. Technical support is available on 01233 713581.
