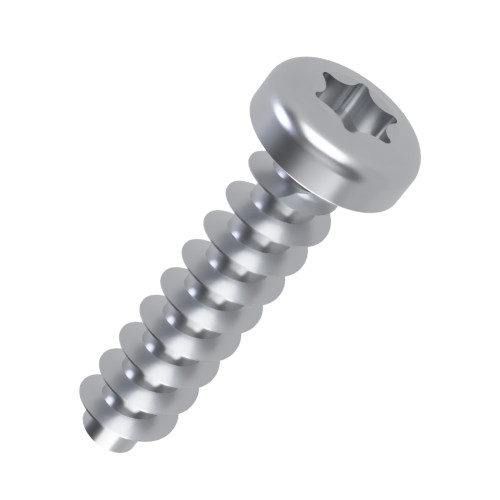

3.5mm x 10mm Torx Pan Screw for Hard Plastics (PT45) - T10 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.22 | £0.26 |
| 50 - 99 | £0.12 | £0.15 |
| 100 - 249 | £0.08 | £0.10 |
| 250 - 499 | £0.07 | £0.08 |
| 500 - 999 | £0.05 | £0.06 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.04 |
£0.26 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 10mm |
| Material | Steel BZP |
| Head Diameter | 6.00mm |
| Head Height | 2.30mm |
| Drive | T10 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
3.5mm x 10mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Ideal for polycarbonate mouldings and rigid plastic components, this 3.5mm x 10mm PT45 plastic screw is manufactured from Bright Zinc Plated Steel with a Pan head and T10 Torx drive. The trilobular thread form pushes material aside to create the mating thread without relying on conventional cutting action.
What Are Torx Pan PT45 Screws?
A PT45 Torx screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in hard materials where secure engagement and a strong drive-to-strip ratio are required.
Common Applications
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.
- Automotive Components: Fastens rigid plastic trim, housings and moulded components used in vehicle assemblies.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.

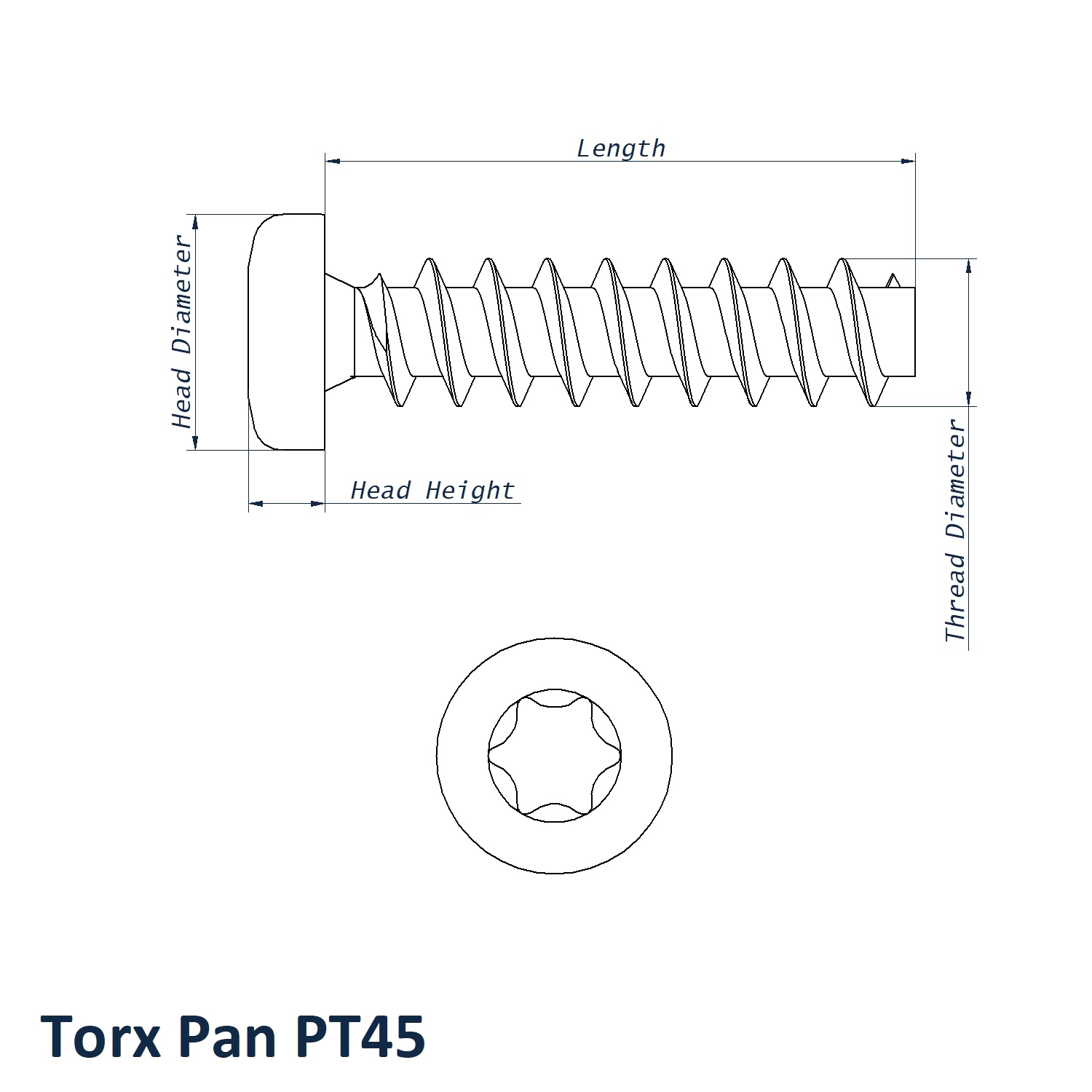

3.5mm x 10mm Torx Pan PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 10mm
- Head Diameter: 6.00mm
- Head Height: 2.30mm
- Drive: T10
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor hard-plastic assemblies.
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
View the complete Torx Pan PT45 Screws for Hard Plastics range for alternative sizes and materials. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
