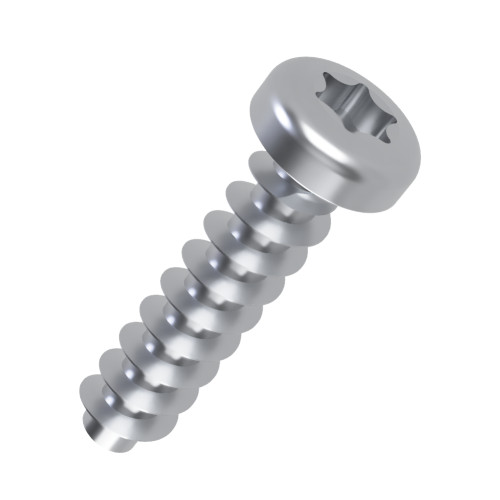

3.5mm x 16mm Torx Pan Screw for Hard Plastics (PT45) - T10 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.33 | £0.40 |
| 50 - 99 | £0.20 | £0.24 |
| 100 - 249 | £0.13 | £0.16 |
| 250 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.05 | £0.06 |
£0.40 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 16mm |
| Material | Steel BZP |
| Head Diameter | 6.00mm |
| Head Height | 2.30mm |
| Drive | T10 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
3.5mm x 16mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Commonly used for instrument housings and control products, this 3.5mm x 16mm PT45 plastic fastener features a Pan head and T10 Torx drive. The Bright Zinc Plated Steel screw forms its thread within a suitably designed moulded or predrilled pilot hole in the hard-plastic component.
What Are Torx Pan PT45 Screws?
PT45 Torx Pan Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while using less torque than an equivalent fully round thread form.
Common Applications
- Electrical Enclosures: Secures hard-plastic covers, panels and housings used in electrical and control equipment.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.

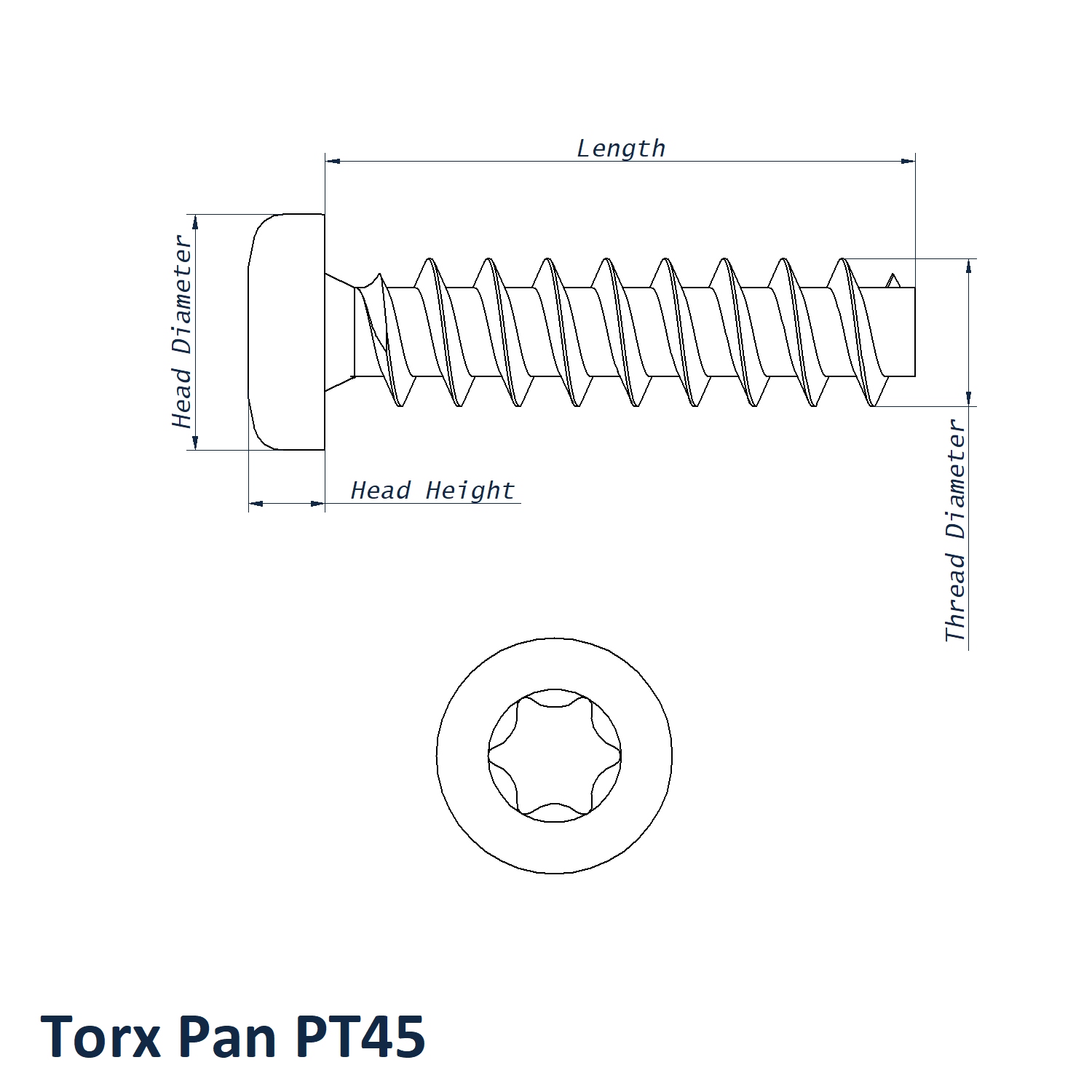

3.5mm x 16mm Torx Pan PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 16mm
- Head Diameter: 6.00mm
- Head Height: 2.30mm
- Drive: T10
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
- 6.00mm head diameter and 2.30mm head height match the uploaded SKU specification.
- Pan head provides a broad bearing surface above the hard-plastic component.
- The wider Torx Pan PT45 range includes Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options.
Further PT45 sizes are available through the Torx Pan Screws for Hard Plastics range. Read our Engineering Guide to Screws for Plastic for practical information on hard-plastic pilot holes, boss geometry and thread selection. For assistance selecting a screw, contact our technical sales team on 01233 713581.
