3.5mm x 6mm Torx Pan Screw for Hard Plastics (PT45) - T10 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.17 | £0.20 |
| 50 - 99 | £0.10 | £0.12 |
| 100 - 249 | £0.07 | £0.08 |
| 250 - 499 | £0.05 | £0.06 |
| 500 - 999 | £0.04 | £0.05 |
| 1000 - 4999 | £0.03 | £0.04 |
| 5000 + | £0.03 | £0.03 |
£0.20 / each
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 6mm |
| Material | Steel BZP |
| Head Diameter | 6.00mm |
| Head Height | 2.30mm |
| Drive | T10 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
3.5mm x 6mm Torx Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
This 3.5mm x 6mm PT45 Screw is intended for reinforced plastic components. It uses a Pan head, T10 Torx recess and Bright Zinc Plated Steel construction with a trilobular thread form developed for hard-plastic fastening.
What Are Torx Pan PT45 Screws?
A PT45 Torx screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in hard materials where secure engagement and a strong drive-to-strip ratio are required.
Common Applications
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.
- Automotive Components: Fastens rigid plastic trim, housings and moulded components used in vehicle assemblies.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.

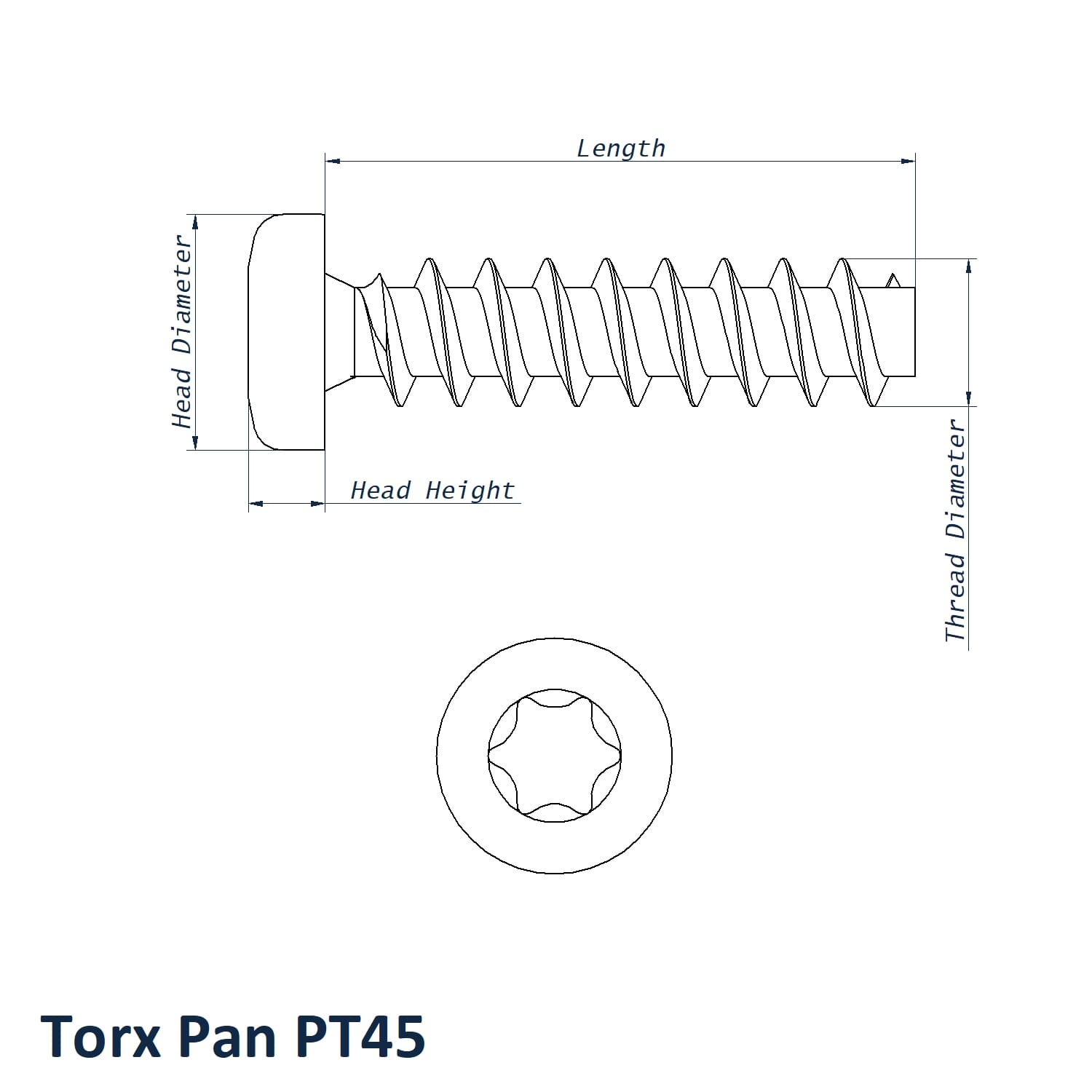

3.5mm x 6mm Torx Pan PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 6mm
- Head Diameter: 6.00mm
- Head Height: 2.30mm
- Drive: T10
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Pan head provides a broad bearing surface above the hard-plastic component.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor hard-plastic assemblies.
- T10 Torx drive provides positive engagement and efficient torque transfer.
See related dimensions and materials in the Torx Pan PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
