Worm Drive Hose Clamp 40-60mm, 12mm Width, W1
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.70 | £0.84 |
| 25 - 49 | £0.67 | £0.80 |
| 50 - 99 | £0.63 | £0.76 |
| 100 - 249 | £0.60 | £0.72 |
| 250 + | £0.57 | £0.68 |
£0.84 / each
.png)
Product Specification
| Clamping Diameter | 40-60mm |
| Band Width | 12mm |
| Tightening Torque | 4Nm |
| Material | W1 |
Frequently Bought Together
Total Price: £0.00
40-60mm W1 Worm Drive Hose Clamp | 12mm Band

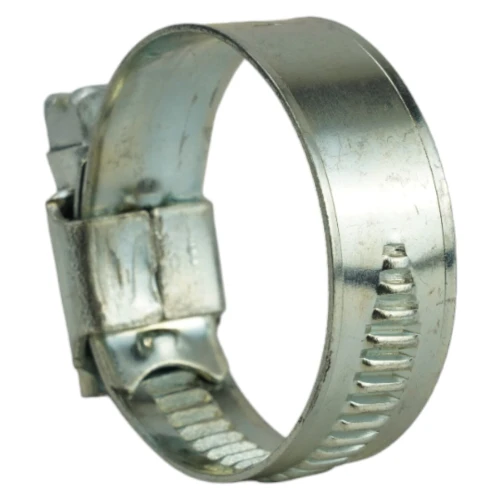

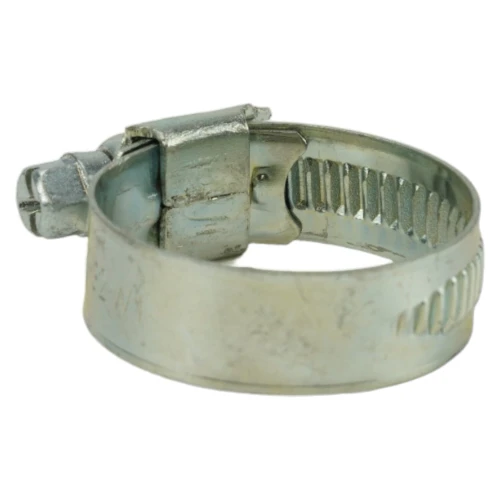

This W1 hose clip covers a 40-60mm clamping diameter and uses a 12mm band to grip a hose around a fitting. Made with zinc-plated mild steel band, housing and screw, it can be tightened using the captive worm-drive screw for general-purpose pipework assemblies.
What Are Worm Drive Hose Clamps?
Worm gear hose clips hold a flexible hose against a pipe connection through a band tightened by a captive screw. Choose a diameter range that fits the outside of the assembled hose. The W1 grade uses zinc-plated mild steel for all three main components and is intended for general fastening where this material specification is appropriate. Confirm that the W1 construction meets the environmental needs of the installation.
Common Applications
- Pump hose connections: Fit around hoses attached to pump inlet or outlet fittings of the correct outside diameter.
- Plumbing assemblies: Retain flexible connecting hoses on appropriately sized plumbing components.
- Machinery servicing: Allow access for adjustment or hose replacement during equipment maintenance.
- General fabrication: Fix a compatible hose to a spigot within fabricated equipment.

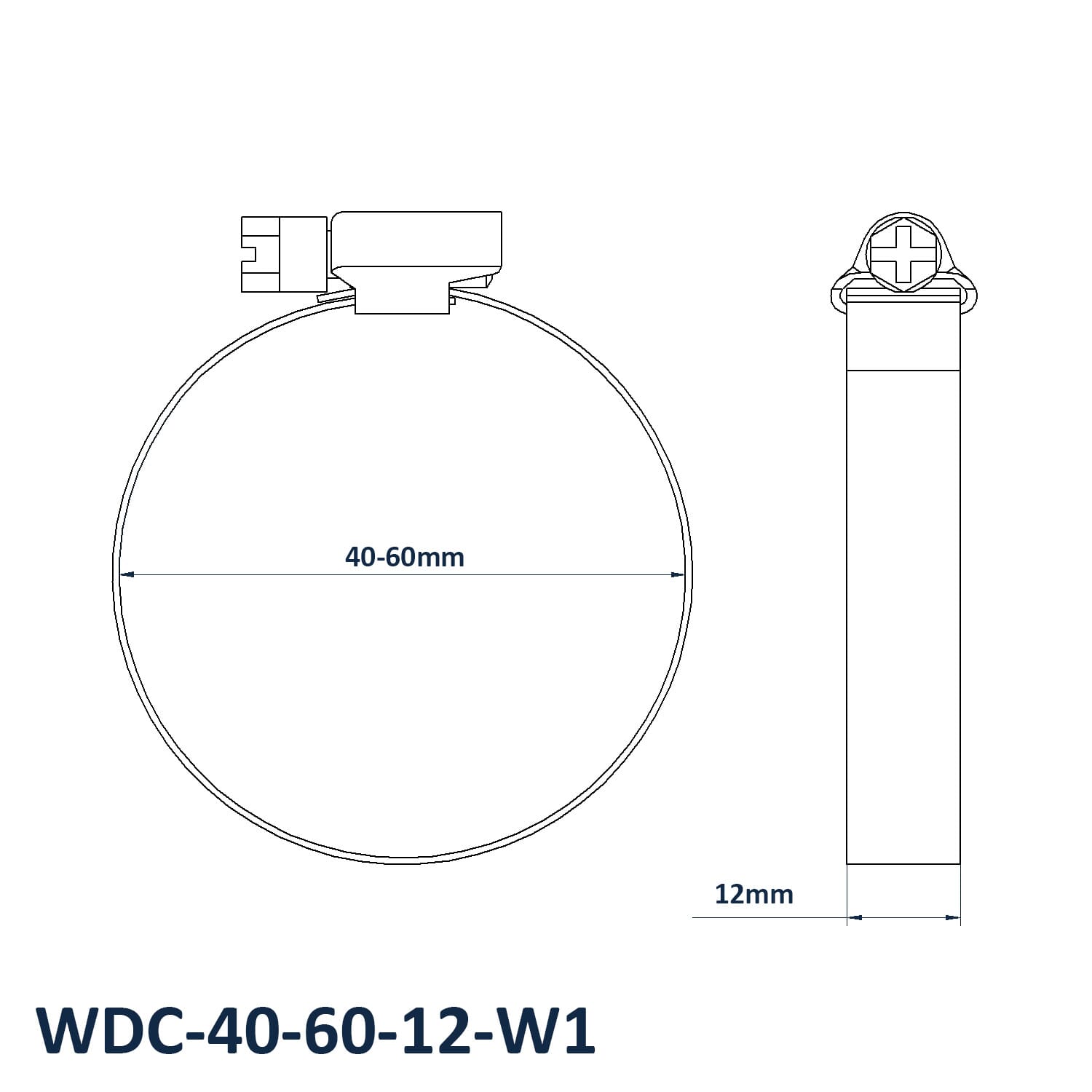

40-60mm W1 Worm Drive Hose Clamp Dimensions
- Clamping Diameter: 40-60mm
- Band Width: 12mm
- Tightening Torque: 4Nm
- Material: W1
Key Benefits
- Versatile adjustment: One clamp spans the diameter interval specified in the product data.
- Mechanical fastening: A screw-operated band provides a non-permanent method of hose retention.
- Material-grade choice: The grade helps match the clamp construction to the intended conditions.
- Service access: The hose connection can be inspected after loosening the clip.
Compare the different sizes of adjustable worm gear hose clips available for hose installations. If you need help selecting the correct clamp, call us on 01233 713581.
