4.8mm Bonded Sealing Washer (14mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.27 | £0.32 |
| 50 - 99 | £0.23 | £0.27 |
| 100 - 249 | £0.17 | £0.20 |
| 250 - 499 | £0.12 | £0.15 |
| 500 - 999 | £0.10 | £0.12 |
| 1000 - 4999 | £0.08 | £0.10 |
| 5000 + | £0.07 | £0.08 |
£0.32 / each
.png)
Product Specification
| Internal Diameter | 4.8mm |
| Outside Diameter | 14.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

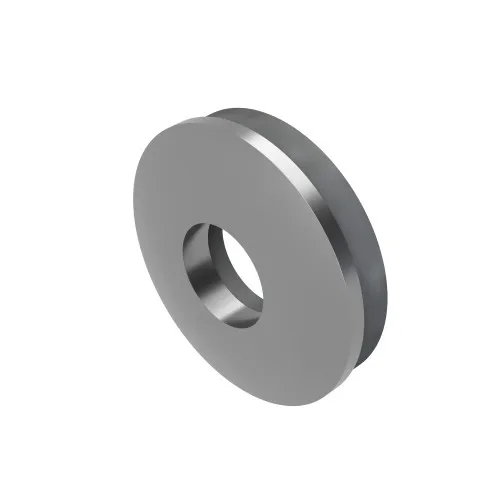

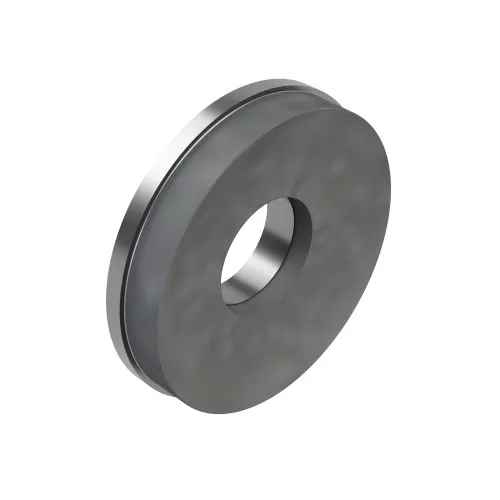

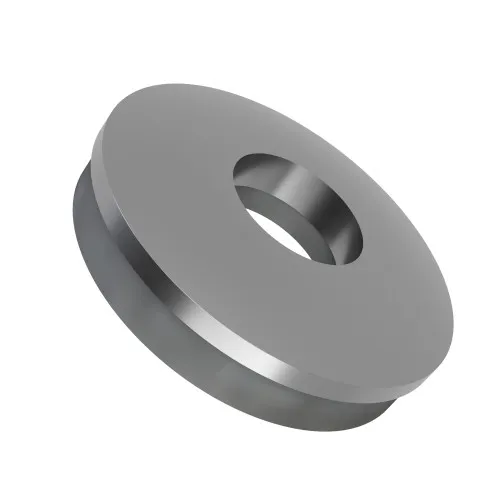

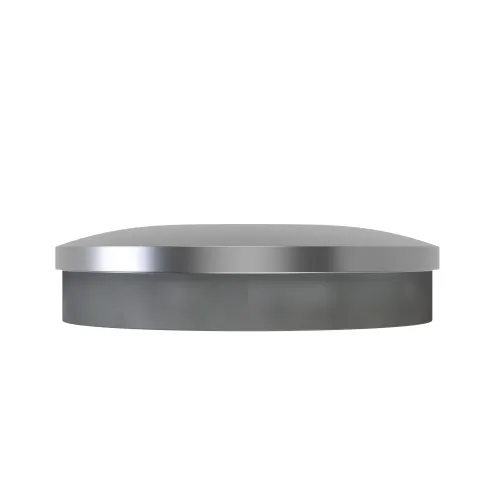

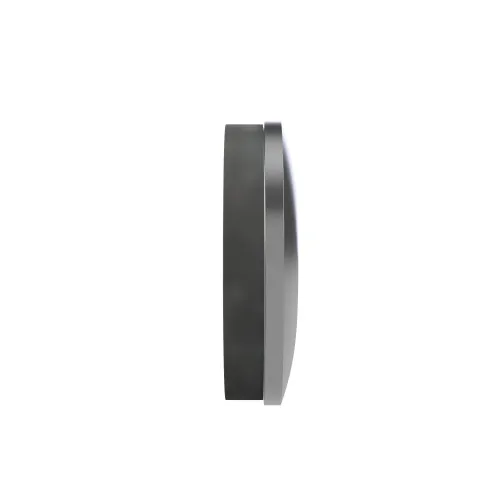

4.8mm x 14mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM
This 4.8mm x 14mm stainless steel bonded washer is suited to outdoor fixtures and weather-exposed metalwork where a conventional flat washer alone would not provide a sealing element. The EPDM Rubber section is permanently bonded to the A2 Stainless Steel washer to create a single-piece sealing component.
What Are Bonded Sealing Washers?
Seal Washers provide both mechanical support and a sealing interface beneath a bolt or screw head. The bonded construction keeps the rubber and metal components together which simplifies installation compared with using separate washers.
For compatible fastening points that need both load spreading and sealing, our bonded sealing washers provide a one-piece metal and EPDM solution.
Common Applications
- Pipework and Fittings: Can help seal compatible threaded fixing points and connections where the fluid and operating conditions are suitable for EPDM.
- Machinery: Provides a bonded seal around suitable bolts used on guards, covers and equipment housings.
- Perspex and Sheet Materials: Spreads clamping force through the metal washer while the EPDM layer cushions the contact surface.
- Maintenance and Repair: Provides a one-piece replacement where both a washer and compressible seal are required around a fixing.
4.8mm x 14mm Bonded Sealing Washer Dimensions
- Internal Diameter: 4.8mm
- Outside Diameter: 14.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- 2mm seal thickness provides the compressible EPDM Rubber sealing section.
- EPDM Rubber provides weather, ozone and UV resistance for suitable sealing applications.
- Correct compression can help create a water-resistant or air-resistant fixing point in suitable applications.
- 14mm outside diameter provides the washer's overall bearing and sealing footprint.
Browse more seal washers to compare internal diameters and outside diameters for different compatible fasteners. If you need help selecting the correct size, call us on 01233 713581.
