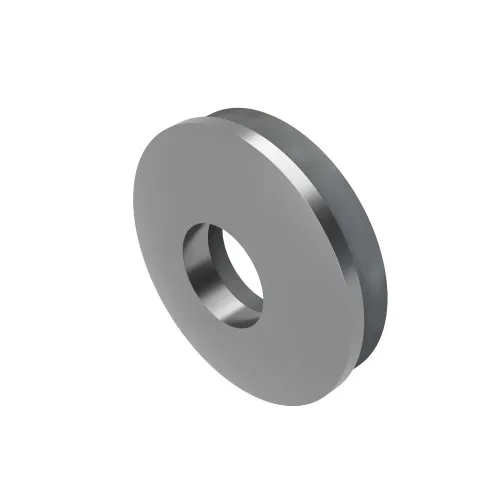

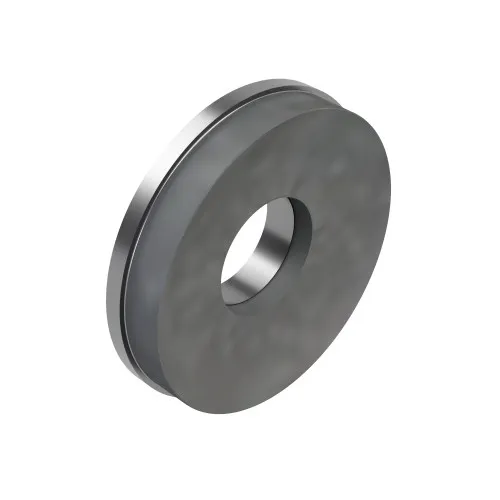

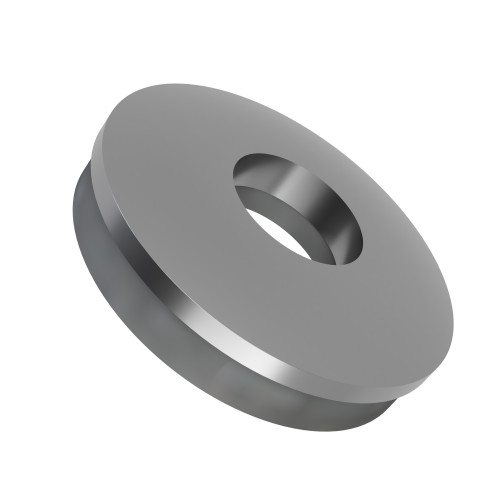

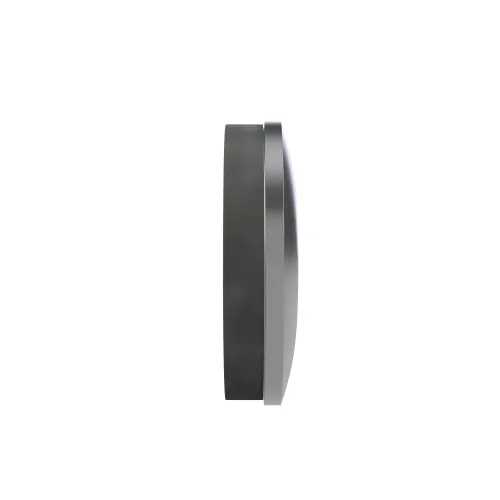

6mm Bonded Sealing Washer (14mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.22 | £0.26 |
| 50 - 99 | £0.18 | £0.22 |
| 100 - 249 | £0.13 | £0.16 |
| 250 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.06 | £0.07 |
£0.26 / each
.png)
Product Specification
| Internal Diameter | 6.0mm |
| Outside Diameter | 14.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
6mm x 14mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM
Providing a combined washer and seal for automotive and transport components requiring a sealed fastener point, this 6mm x 14mm seal washer uses a 0.8mm stainless steel section with a 2mm EPDM Rubber sealing layer. Correct compression beneath a compatible fixing helps form a reliable barrier around the fastener hole.
What Are Bonded Sealing Washers?
Bonded Sealing Washers combine a metal washer with a bonded rubber sealing element. As the fixing is tightened the rubber compresses against the mating surface while the metal ring spreads the clamping load, helping create a sealed joint around the fastener.
Different sizes of seal washers are available for compatible fixings used across construction, engineering and fluid-handling applications.
Common Applications
- Automotive Components: Helps seal suitable fastener points on panels, brackets and equipment where EPDM compatibility is appropriate.
- Electrical Panels: Supports sealed bolt and screw points on suitable outdoor boxes, covers and fabricated enclosures.
- Plant Equipment: Provides a combined sealing and load-spreading washer for suitable industrial fixing points.
- Fabricated Metalwork: Helps reduce ingress paths around bolts and screws in compatible sheet-metal assemblies.
6mm x 14mm Bonded Sealing Washer Dimensions
- Internal Diameter: 6.0mm
- Outside Diameter: 14.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- Correct compression can help create a water-resistant or air-resistant fixing point in suitable applications.
- 14mm outside diameter provides the washer's overall bearing and sealing footprint.
- 2mm seal thickness provides the compressible EPDM Rubber sealing section.
- EPDM Rubber provides weather, ozone and UV resistance for suitable sealing applications.
Browse more bonded seal washers to compare internal diameters and outside diameters for different compatible fasteners. If you need help selecting the correct size, call us on 01233 713581.
