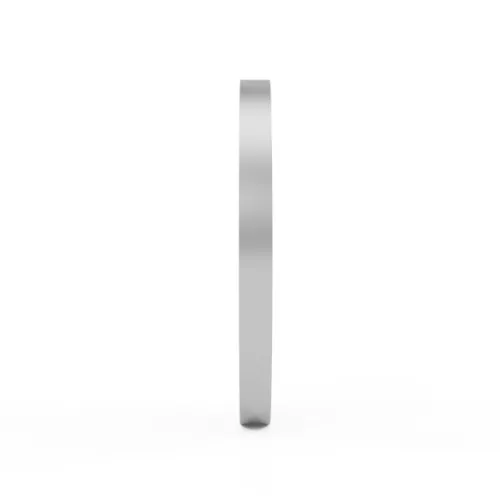

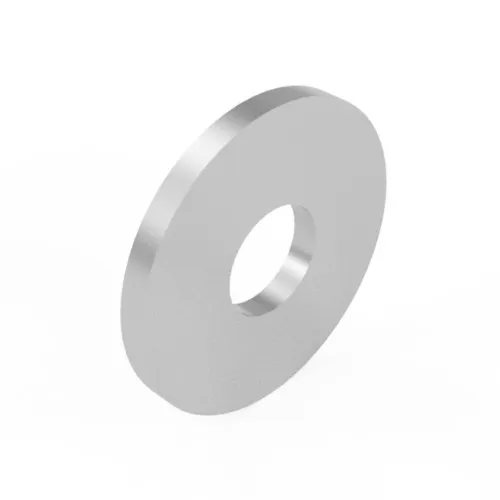

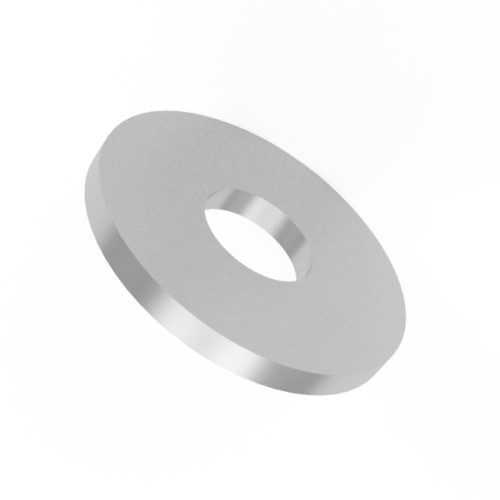

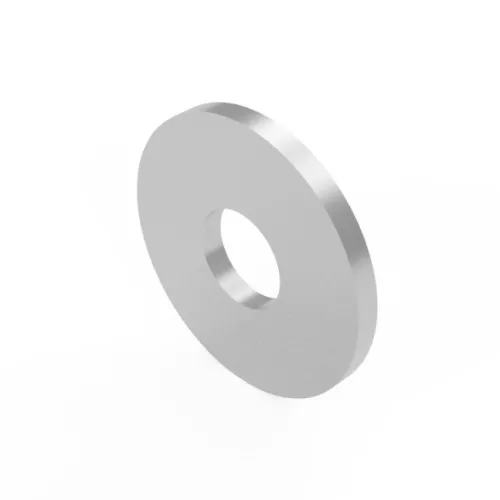

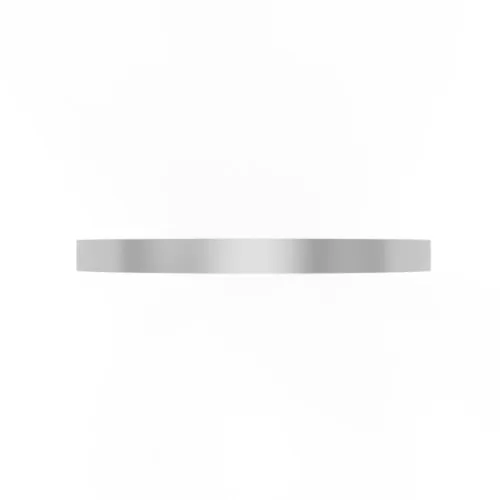

M24 (27mm) x 105mm Wood Construction Washer - DIN 1052 | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £12.34 | £14.81 |
| 100 - 499 | £11.22 | £13.47 |
| 500 - 999 | £8.97 | £10.77 |
| 1000 - 9999 | £8.08 | £9.70 |
| 10000 + | £7.54 | £9.05 |
£14.81 / each
.png)
Product Specification
| Size | M24 |
| Internal Diameter | 27.0mm |
| Outside Diameter | 105.0mm |
| Thickness | 8.00mm |
| Standard | DIN 1052 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M24 Wood Construction Washer - 27mm ID x 105mm OD | DIN 1052 | A4 Stainless Steel
Made for coastal timber structures and exposed outdoor joinery, this large structural timber washer fits beneath compatible bolts, coach screws or nuts to help protect the timber surface around the connection. The A4 Stainless Steel construction provides corrosion resistance while the large washer diameter supports stable load distribution. The A4 marine-grade material is particularly suited to coastal, marine and high-moisture timber applications where enhanced corrosion resistance is required.
What Are Wood Construction Washers?
Timber Construction Washers provide a larger bearing surface than standard flat washers. They are commonly positioned beneath bolt heads or nuts in timber framing so the fixing force is distributed more evenly across beams, posts, joists and other wooden components.
Common Applications
- Decking and Pergolas: Helps prevent fasteners sinking into timber as outdoor structures settle or move over time.
- Heavy Timber Projects: Supports larger structural connections where standard flat washers may not provide enough load distribution.
- Outdoor Joinery: Provides corrosion-resistant load spreading around bolts and coach screws in external timber work.
- Boardwalks and Jetties: A4 Stainless Steel options suit timber structures exposed to saltwater, high humidity and coastal conditions.
M24 DIN 1052 Wood Construction Washer Dimensions
- Size: M24
- Internal Diameter: 27.0mm
- Outside Diameter: 105.0mm
- Thickness: 8.00mm
- Material: A4 Stainless Steel
- Standard: DIN 1052
Key Benefits
- Wide washer profile helps reduce the risk of fastener pull-through under clamping load.
- Round construction-washer format supports stable load distribution across timber connections.
- 105.0mm outside diameter creates a large bearing area to spread load across the timber.
- A4 Stainless Steel construction provides corrosion resistance for suitable timber construction applications.
See the wider Wood Construction Washers category for other DIN 440R and DIN 1052 dimensions. For sizing support, speak with our team on 01233 713581.
