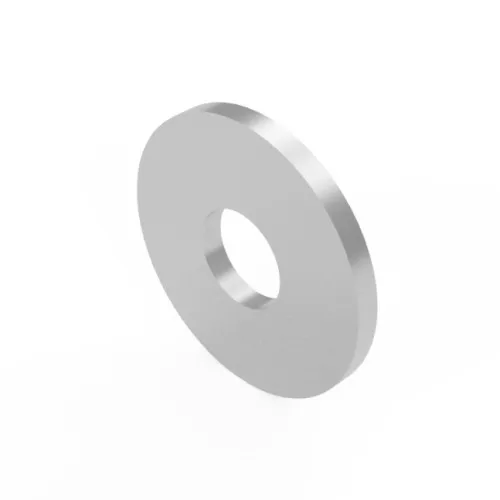

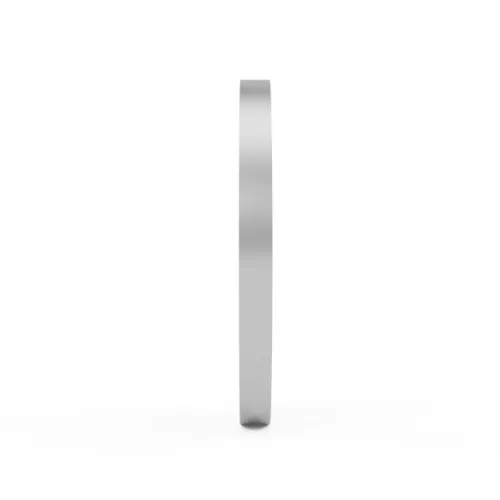

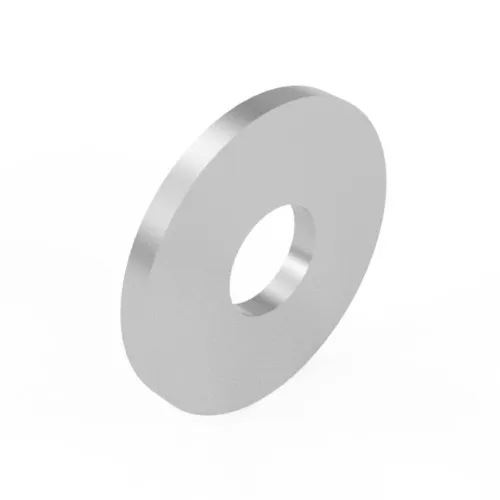

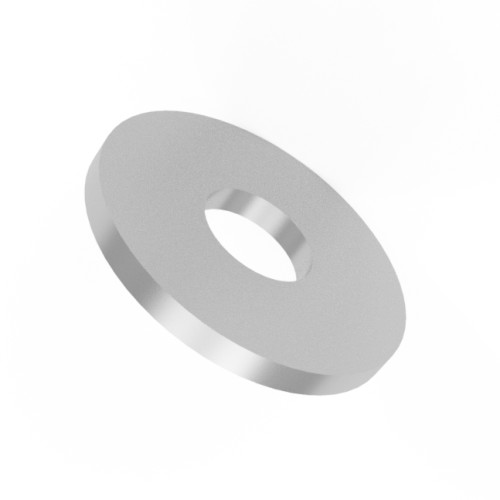

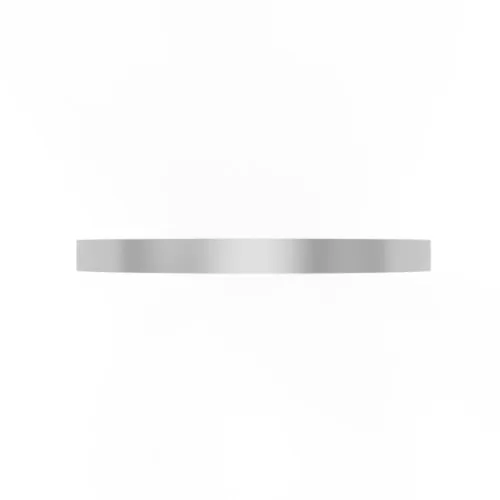

M20 (23mm) x 80mm Wood Construction Washer - DIN 1052 | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £5.97 | £7.16 |
| 100 - 499 | £5.42 | £6.51 |
| 500 - 999 | £4.33 | £5.20 |
| 1000 - 9999 | £3.90 | £4.68 |
| 10000 + | £3.64 | £4.37 |
£7.16 / each
.png)

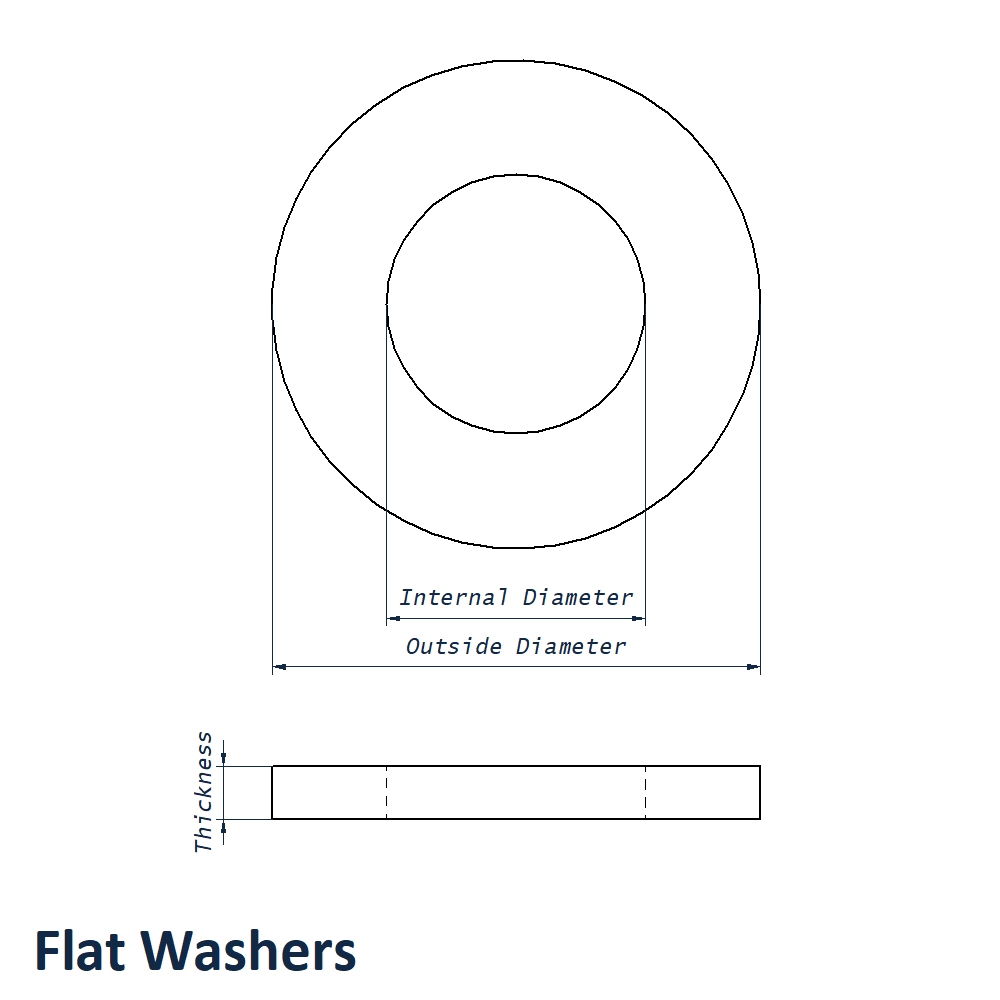

Product Specification
| Size | M20 |
| Internal Diameter | 23.0mm |
| Outside Diameter | 80.0mm |
| Thickness | 8.00mm |
| Standard | DIN 1052 |
| Material | A4 Stainless Steel |

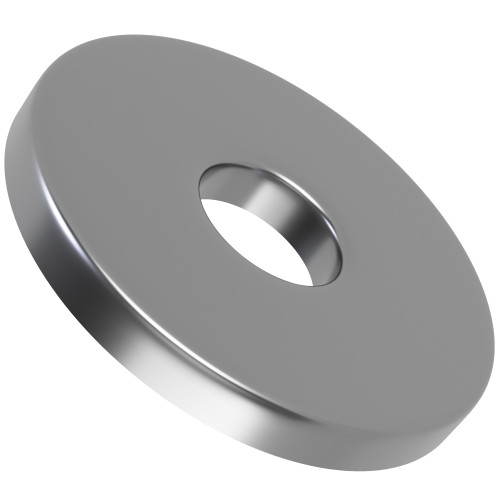

Frequently Bought Together
Total Price: £0.00
M20 Wood Construction Washer - 23mm ID x 80mm OD | DIN 1052 | A4 Stainless Steel
Designed for marine timber work, jetties and boardwalks, this DIN 1052 wood construction washer provides a larger contact area than a standard flat washer. Manufactured from A4 Stainless Steel to DIN 1052, it helps distribute fastener load across the timber and reduce the risk of bolt heads or nuts pulling into softer wood. The A4 marine-grade material is particularly suited to coastal, marine and high-moisture timber applications where enhanced corrosion resistance is required.
What Are Wood Construction Washers?
Wood Construction Washers are large-diameter flat washers designed specifically for timber assemblies. Their wider surface area spreads the clamping load from bolts, coach screws or nuts across more of the wood which helps reduce crushing, indentation and fastener pull-through.
Common Applications
- Heavy Timber Projects: Supports larger structural connections where standard flat washers may not provide enough load distribution.
- Retaining Structures: Helps spread clamping force in heavy timber walls, sleepers and structural support projects.
- Boardwalks and Jetties: A4 Stainless Steel options suit timber structures exposed to saltwater, high humidity and coastal conditions.
- Timber Frame Construction: Spreads bolt or coach screw load across beams, posts and joists to support stronger structural joints.
M20 DIN 1052 Wood Construction Washer Dimensions
- Size: M20
- Internal Diameter: 23.0mm
- Outside Diameter: 80.0mm
- Thickness: 8.00mm
- Material: A4 Stainless Steel
- Standard: DIN 1052
Key Benefits
- DIN 1052 manufacture provides the recognised dimensional standard for this washer type.
- Wide washer profile helps reduce the risk of fastener pull-through under clamping load.
- M20 size provides the stated fastener reference for the washer.
- 80.0mm outside diameter creates a large bearing area to spread load across the timber.
Compare more sizes in our Wood Construction Washer range for different timber fasteners and structural applications. If you are unsure which size or grade you need, contact our team on 01233 713581.
