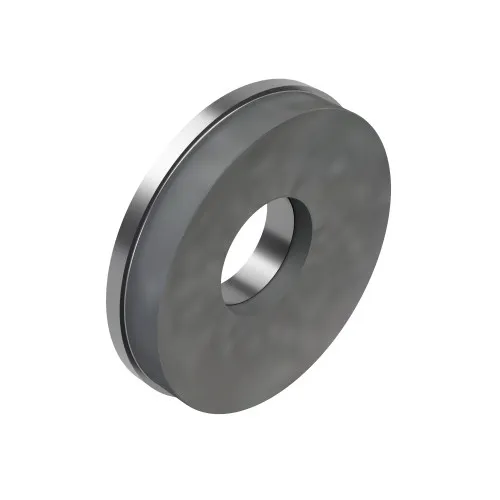

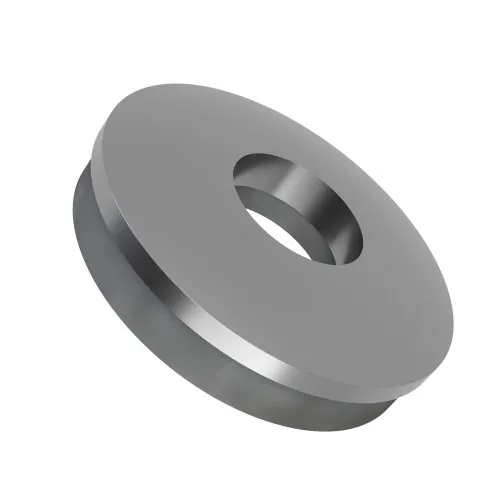

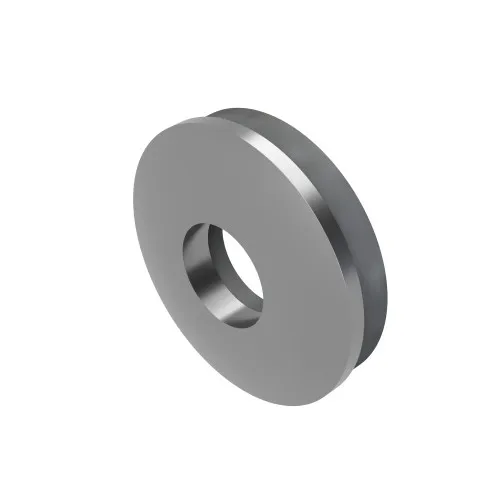

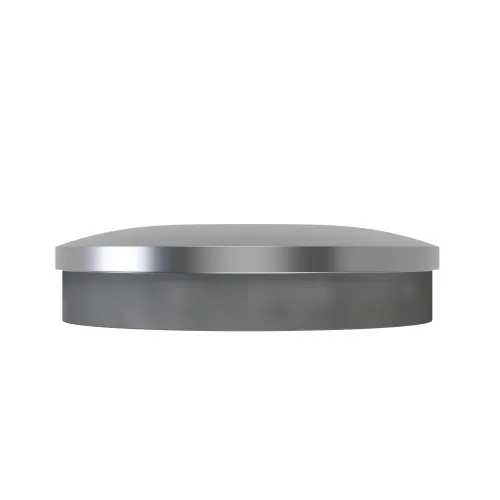

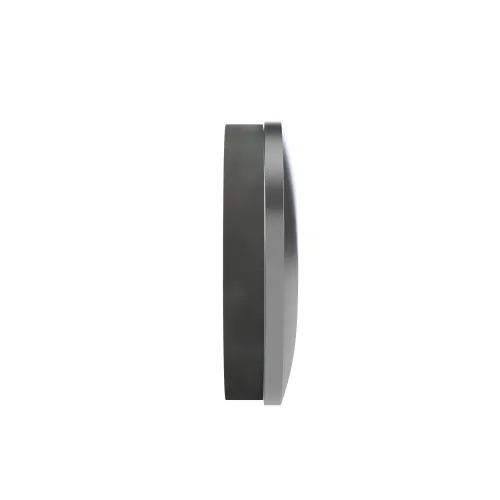

6.7mm Bonded Sealing Washer (12mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.16 | £0.19 |
| 50 - 99 | £0.13 | £0.16 |
| 100 - 249 | £0.10 | £0.12 |
| 250 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.06 | £0.07 |
| 1000 - 4999 | £0.05 | £0.06 |
| 5000 + | £0.04 | £0.05 |
£0.19 / each
.png)
Product Specification
| Internal Diameter | 6.7mm |
| Outside Diameter | 12.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
6.7mm x 12mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM
Designed for plant equipment, brackets and general industrial fastening, this 6.7mm x 12mm bonded seal washer uses a metal washer bonded directly to an EPDM sealing element. Tightening the compatible fixing compresses the rubber against the mating surface which helps reduce the path for water, air or compatible fluids around the hole.
What Are Bonded Sealing Washers?
Bonded Sealing Washers combine a metal washer with a bonded rubber sealing element. As the fixing is tightened the rubber compresses against the mating surface while the metal ring spreads the clamping load, helping create a sealed joint around the fastener.
These hydraulic sealing washers combine a metal support ring with a bonded elastomer seal for suitable bolted and screwed connections.
Common Applications
- Roofing and Cladding: Helps seal compatible screw or bolt fixings through sheet-metal roofing, cladding and exterior panels.
- Industrial Enclosures: Provides a sealing interface around suitable fasteners used on access panels, housings and equipment covers.
- General Construction: Combines load spreading and sealing around compatible bolts used in fabricated metal and external assemblies.
- Outdoor Equipment: A2 Stainless Steel and EPDM construction suits many weather-exposed fastening points where correct sealing is required.

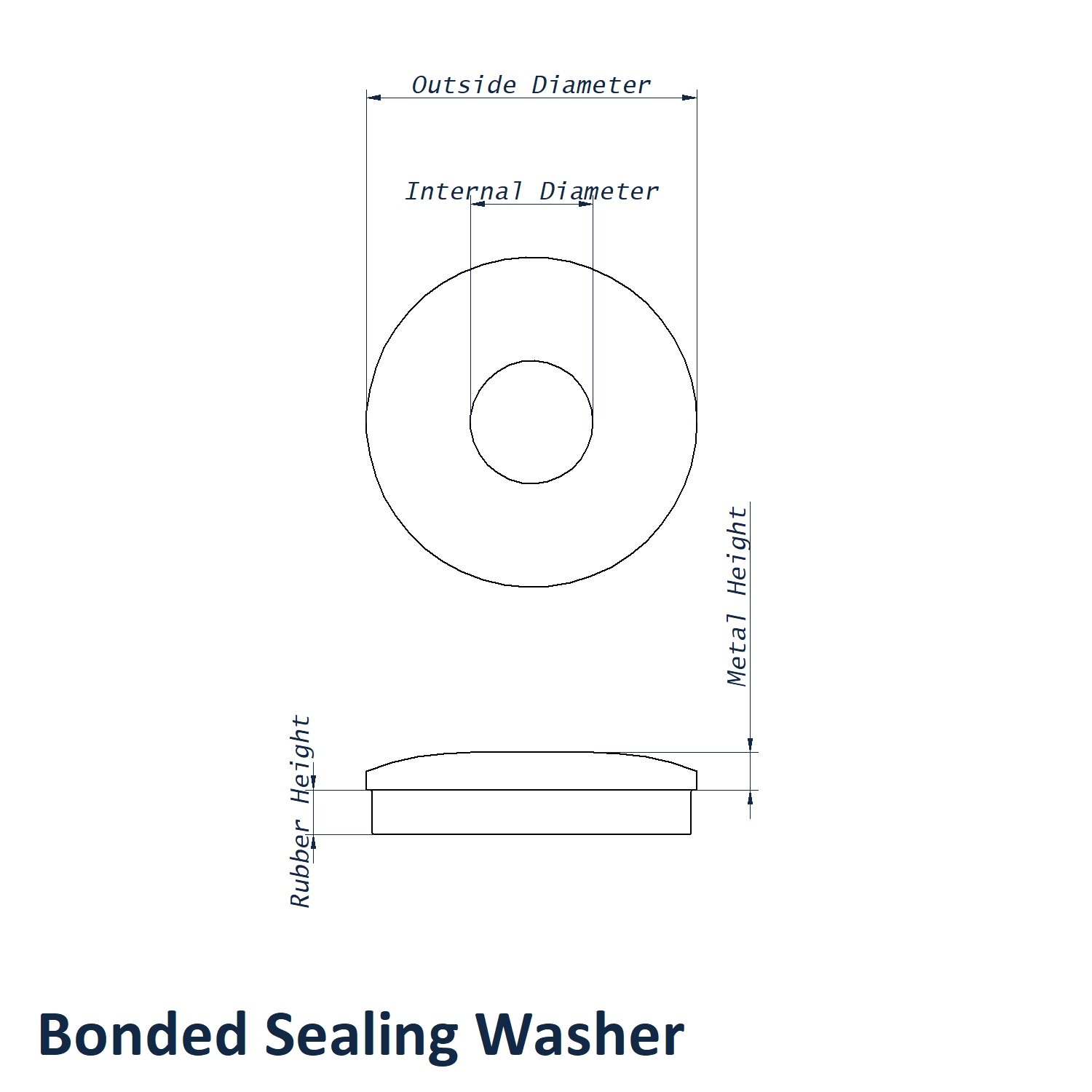

6.7mm x 12mm Bonded Sealing Washer Dimensions
- Internal Diameter: 6.7mm
- Outside Diameter: 12.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- 2.8mm total thickness combines the metal washer and bonded sealing element.
- 2mm seal thickness provides the compressible EPDM Rubber sealing section.
- Bonded one-piece construction keeps the metal washer and rubber seal together during handling and installation.
- Correct compression can help create a water-resistant or air-resistant fixing point in suitable applications.
See more seal washers for suitable construction, engineering and sealing applications. For help matching the washer to your fixing, speak with our team on 01233 713581.
