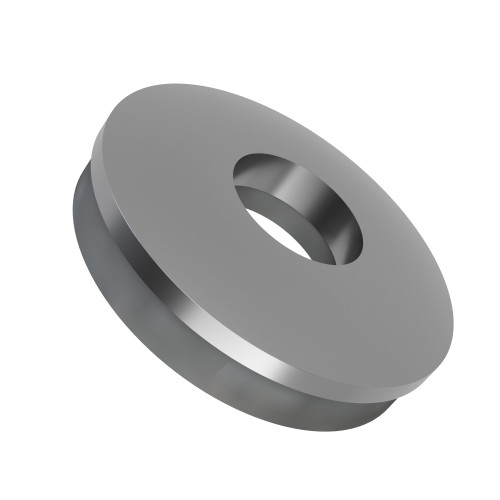

6.7mm Bonded Sealing Washer (14mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.25 | £0.30 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.10 | £0.12 |
£0.30 / each
.png)
Product Specification
| Internal Diameter | 6.7mm |
| Outside Diameter | 14.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

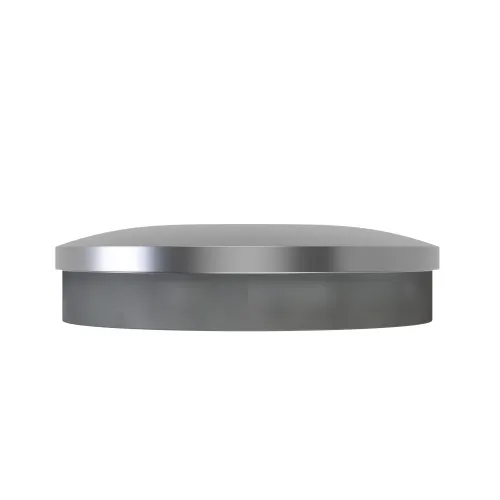

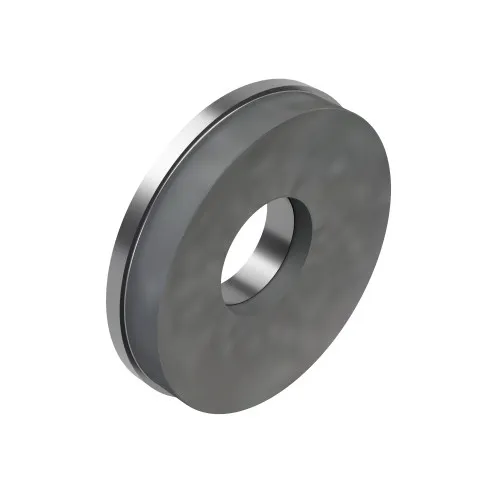

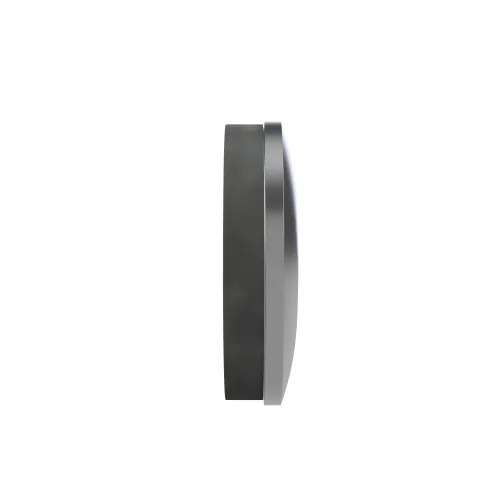

6.7mm x 14mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM
This 6.7mm x 14mm seal washer is suited to electrical enclosures, access panels and outdoor equipment where a conventional flat washer alone would not provide a sealing element. The EPDM Rubber section is permanently bonded to the A2 Stainless Steel washer to create a single-piece sealing component.
What Are Bonded Sealing Washers?
Bonded Sealing Washers combine a metal washer with a bonded rubber sealing element. As the fixing is tightened the rubber compresses against the mating surface while the metal ring spreads the clamping load, helping create a sealed joint around the fastener.
Our hydraulic sealing washers are available in multiple internal and outside diameters for matching different compatible fasteners and sealing footprints.
Common Applications
- Automotive Components: Helps seal suitable fastener points on panels, brackets and equipment where EPDM compatibility is appropriate.
- Electrical Panels: Supports sealed bolt and screw points on suitable outdoor boxes, covers and fabricated enclosures.
- Plant Equipment: Provides a combined sealing and load-spreading washer for suitable industrial fixing points.
- Fabricated Metalwork: Helps reduce ingress paths around bolts and screws in compatible sheet-metal assemblies.

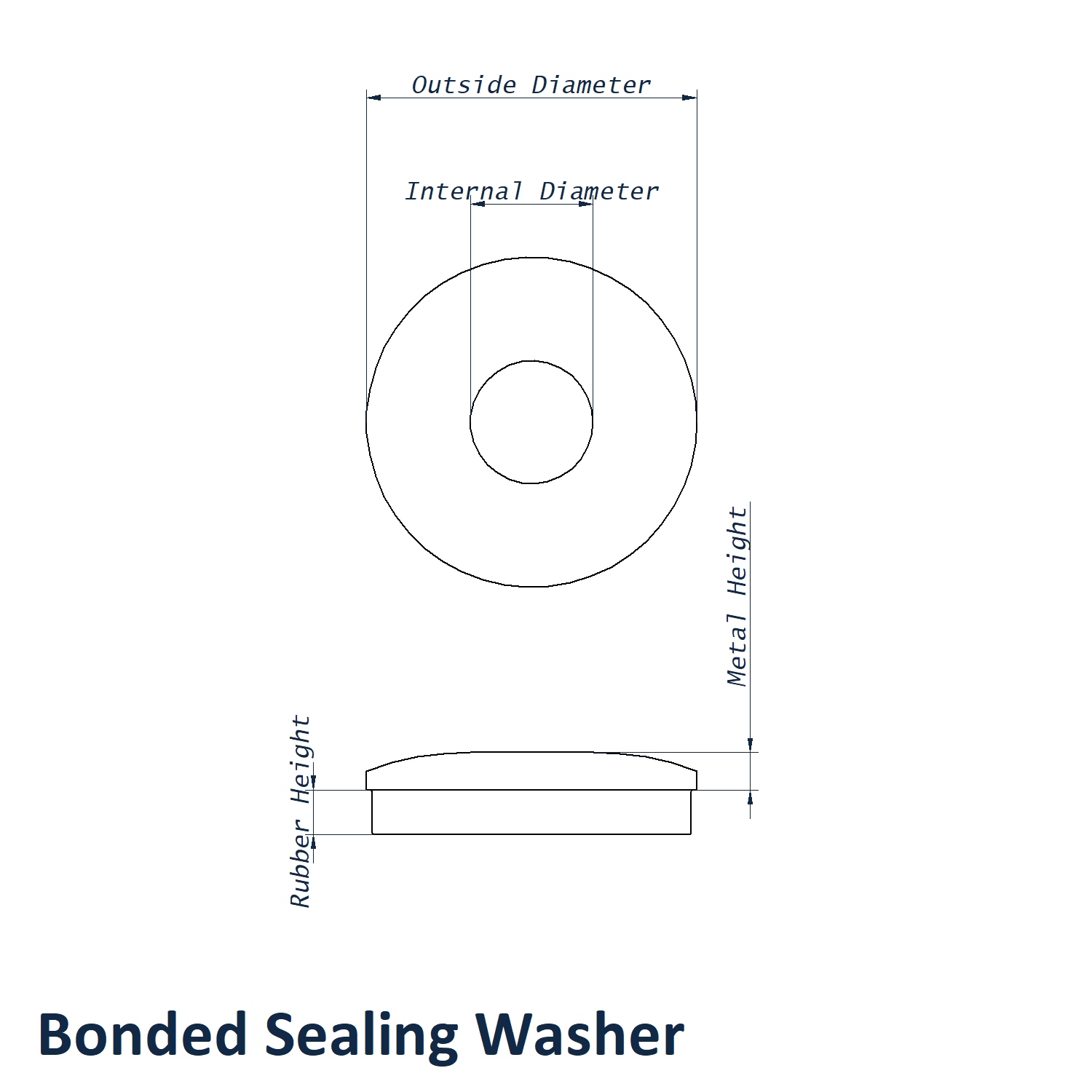

6.7mm x 14mm Bonded Sealing Washer Dimensions
- Internal Diameter: 6.7mm
- Outside Diameter: 14.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- 0.8mm metal thickness provides the specified A2 Stainless Steel supporting section.
- A2 Stainless Steel construction provides corrosion resistance for many general and outdoor applications.
- Metal ring spreads clamping load while the bonded rubber helps seal around the fixing hole.
- 6.7mm internal diameter provides the stated clearance around the compatible fastener.
View our full selection of hydraulic sealing washers for alternative fixing diameters and sealing footprints. If you are unsure which size suits your application, contact our team on 01233 713581.
