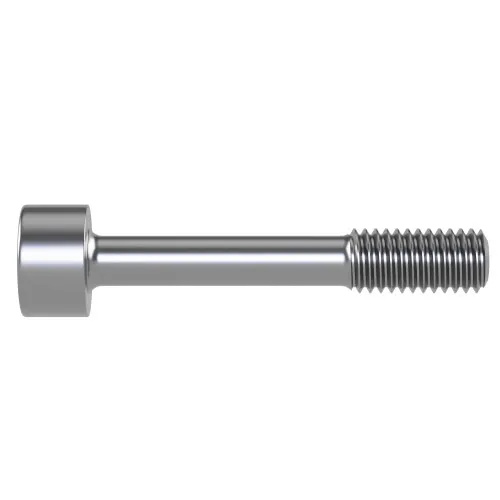

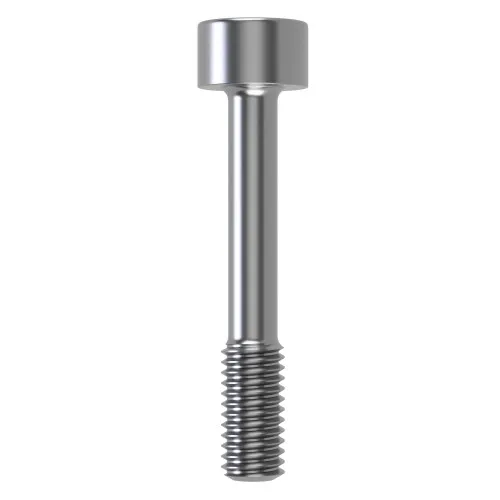

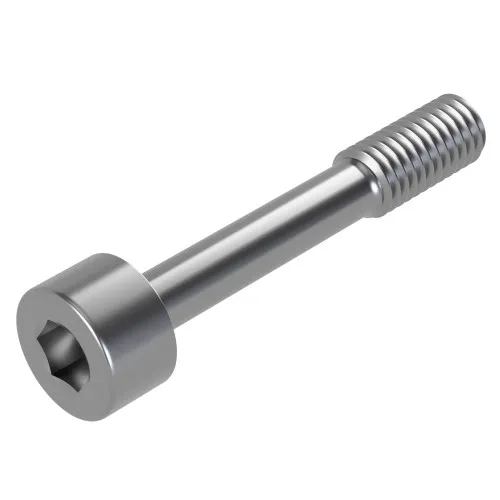

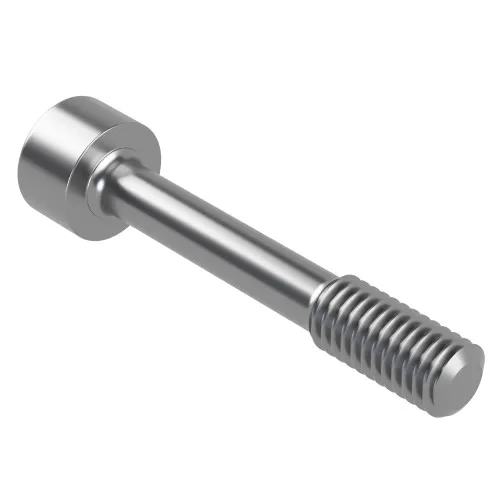

M8 x 55mm Captive Socket Cap Head Screw (~DIN 912) | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £5.90 | £7.08 |
| 50 - 99 | £5.24 | £6.29 |
| 100 - 249 | £4.72 | £5.66 |
| 250 - 499 | £4.29 | £5.15 |
| 500 - 999 | £3.93 | £4.72 |
| 1000 + | £3.38 | £4.05 |
£7.08 / each
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 55mm |
| Captive Diameter | 6.2mm |
| Threaded Length | 16.0mm |
| Drive | H6 |
| Head Diameter | 13.0mm |
| Head Height | 8.0mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M8 x 55mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
Made for repeat-access assemblies, this M8 x 55mm captive machine screw uses a reduced 6.2mm section between the threaded portion and head area. When paired with a compatible captive feature, this allows the fixing to remain with the panel after disengaging from the mating thread. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Socket Head Captive Screws provide positive hex-key drive engagement together with a retained fastening format. They are commonly specified for machinery, enclosures and serviceable equipment where panels need to be removed or opened regularly without losing the fasteners.
Common Applications
- Industrial Enclosures: Provides a retained fastening point for covers and doors on suitable equipment housings.
- Instrumentation: Keeps small fastening hardware attached to precision panels, test equipment and technical housings.
- Automation Equipment: Supports repeat-access panels on machinery, control systems and production equipment.
- Transport Equipment: Provides retained fixings for suitable removable covers and inspection panels.
M8 x 55mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M8
- Length: 55mm
- Threaded Length: 16.0mm
- Captive Diameter: 6.2mm
- Head Diameter: 13.0mm
- Head Height: 8.0mm
- Drive: H6
- Pitch: 1.25mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- 6.2mm captive diameter provides the reduced section used with a compatible retention feature.
- 8.0mm head height provides the specified socket cap head profile.
- Similar to DIN 912 describes the DIN 912-style dimensional format used for this captive screw.
- Captive format can reduce dropped or misplaced fasteners during servicing when installed with a suitable retaining feature.
View the full Cap Head Captive Screws range to compare thread sizes, lengths, drives and stainless steel grades. Our wider Captive Screws range includes countersunk captive screws plus other head styles for different access, clearance and installation requirements. If you need help selecting the correct retained fixing, call us on 01233 713581.
