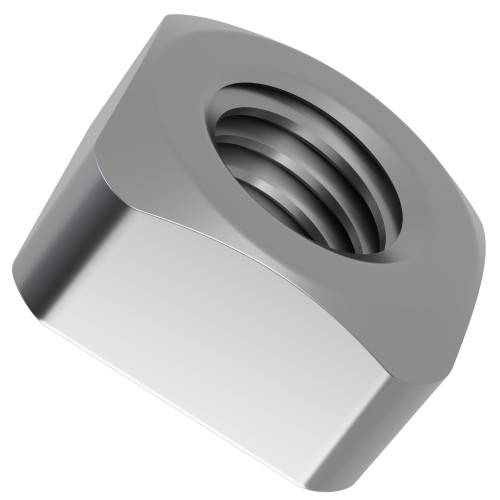

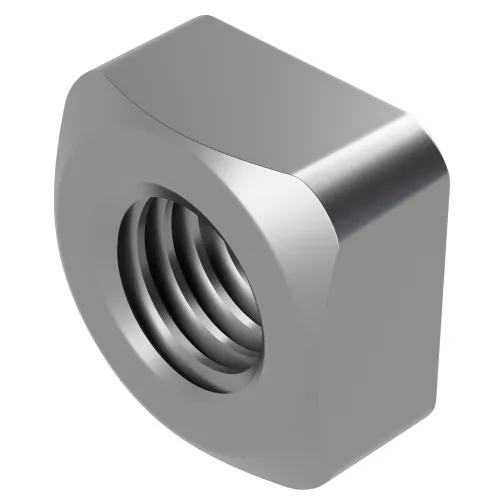

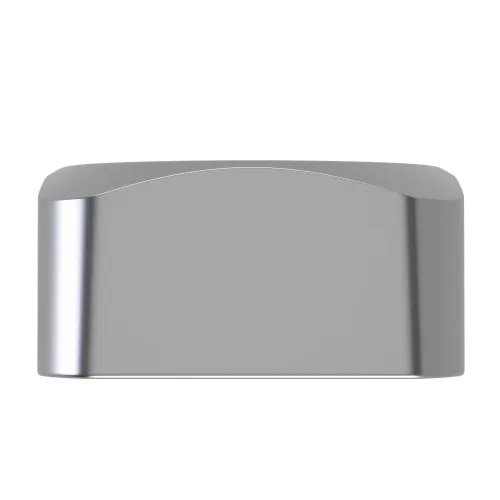

M10 Chamfered Square Nut (DIN 557) | Marine Grade A4 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.58 | £0.70 |
| 50 - 99 | £0.49 | £0.59 |
| 100 - 249 | £0.39 | £0.47 |
| 250 - 499 | £0.29 | £0.35 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 + | £0.17 | £0.20 |
£0.70 / each
Product Specification
| Thread Size | M10 |
| Thread Pitch | 1.50mm |
| Material | A4 Stainless Steel |
| Across Flats | 17mm |
| Height | 8mm |
| Standard | DIN 557 |
Frequently Bought Together
- Material A1 Stainless Steel
- Diameter 5mm
- Length 20mm
- Standard ISO 2338A
- Tolerance Band m6

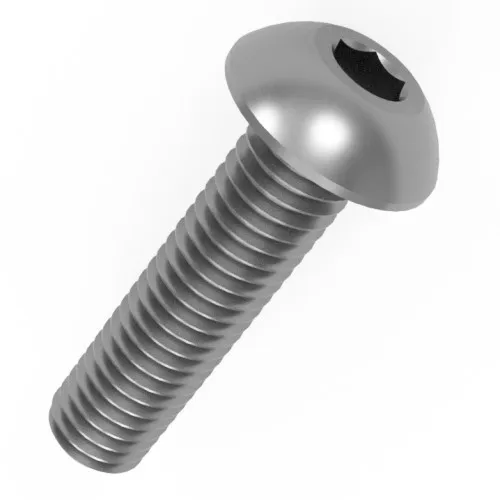

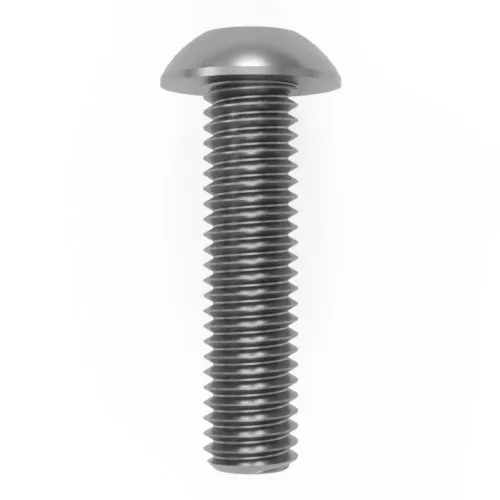

- Thread Size M10
- Material A4 Stainless Steel
- Head Diameter 17.50mm
- Length 20mm
- Drive H6
- Standard ISO 7380-1
- Pitch 1.50mm
- Head Height 5.50mm
- Head Style Button Head
- Material A4 Stainless Steel
- Thickness 2.00mm
- Internal Diameter 10.5mm
- Outside Diameter 20.0mm
- Standard DIN 125A
- Size M10
Total Price: £0.00

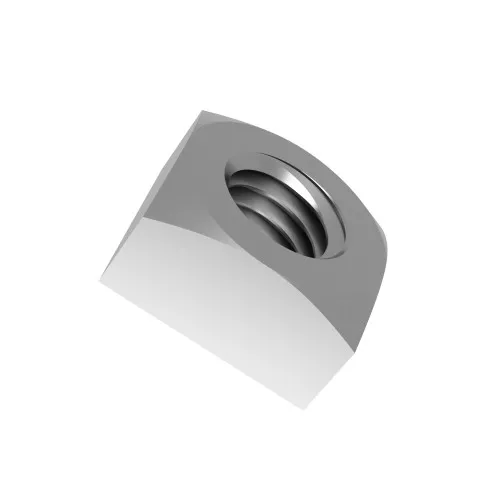

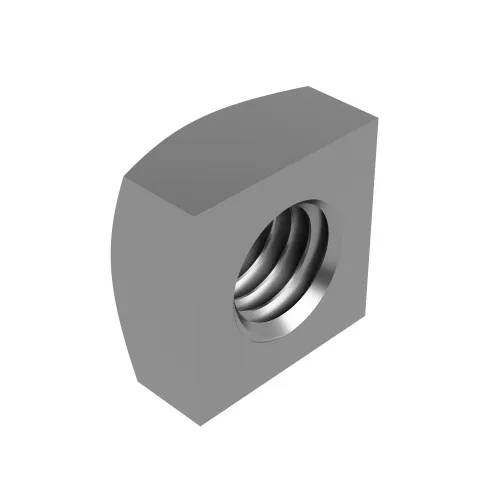

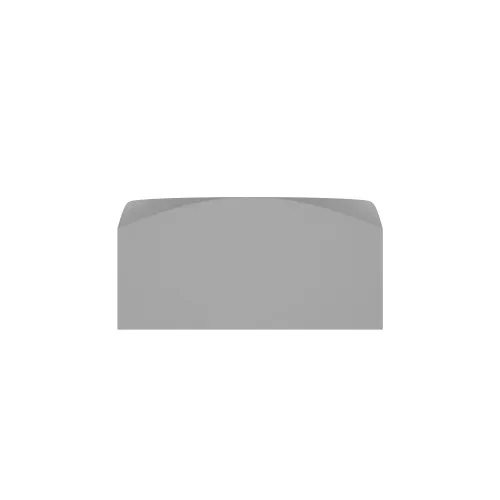

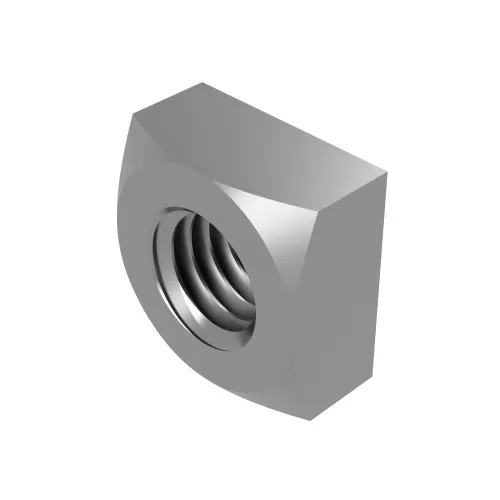

M10 Chamfered Square Nut | DIN 557 | Marine Grade A4 Stainless Steel
Designed for outdoor machinery and exposed equipment, this M10 stainless square nut combines a four-sided DIN 557 profile with a chamfered top edge for cleaner handling and appearance. The 17mm across-flats dimension gives a broad gripping surface while the 8mm height provides the thicker DIN 557 form. The A4 grade provides enhanced resistance to corrosion for suitable outdoor, coastal and marine environments.
What Are DIN 557 Chamfered Square Nuts?
DIN 557 Chamfered Square Nuts are four-sided threaded fasteners with a bevelled or chamfered upper face. Compared with standard square nuts, DIN 557 versions have a thicker body which provides a more substantial fastening profile while the chamfer removes the sharp upper edge.
Common Applications
- Maintenance and Repair: Provides a replacement square nut for equipment originally designed around DIN 557 dimensions.
- Marine Equipment: A4 Stainless Steel versions suit suitable coastal and marine environments requiring enhanced corrosion resistance.
- Metal Fabrication: Provides a strong square fastening point for frames, brackets and structural metalwork.
- Workshop Fixtures: Provides a durable threaded fastening point in jigs, brackets and workshop equipment.

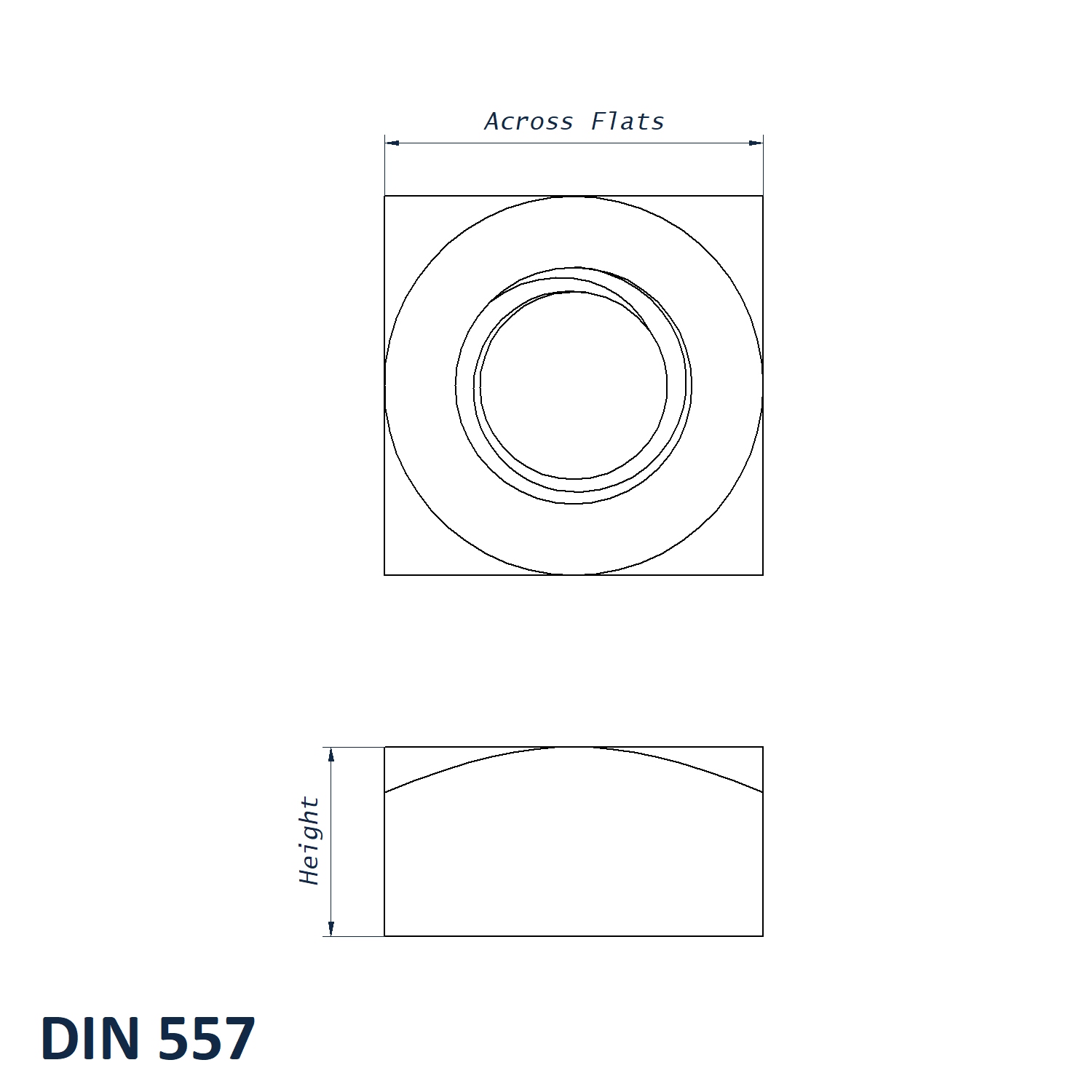

M10 DIN 557 Chamfered Square Nut Dimensions
- Thread Size: M10
- Thread Pitch: 1.50mm
- Across Flats: 17mm
- Height: 8mm
- Material: A4 Stainless Steel
- Standard: DIN 557
Key Benefits
- 1.50mm thread pitch matches compatible metric bolts and threaded components.
- 8mm height provides the thicker DIN 557 nut profile.
- Four large flats provide positive tool engagement and help reduce rounding during tightening.
- Square profile provides a broad bearing area against the mating component.
Compare more sizes in our Chamfered Square Nuts DIN 557 range. For other square nut designs, browse our complete Square Nuts range to compare alternative standards and fixing styles. If you are unsure which size or grade suits your application, contact our team on 01233 713581.
| Code | Thread Size | Material | Height | Thread Pitch | Across Flats | Standard | Stock | |
|---|---|---|---|---|---|---|---|---|
| SQN557-M10-A2 | M10 | A2 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M10-A4 | M10 | A4 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A2 | M12 | A2 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A4 | M12 | A4 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A2 | M16 | A2 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A4 | M16 | A4 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A2 | M5 | A2 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A4 | M5 | A4 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A2 | M6 | A2 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A4 | M6 | A4 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A2 | M8 | A2 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A4 | M8 | A4 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
