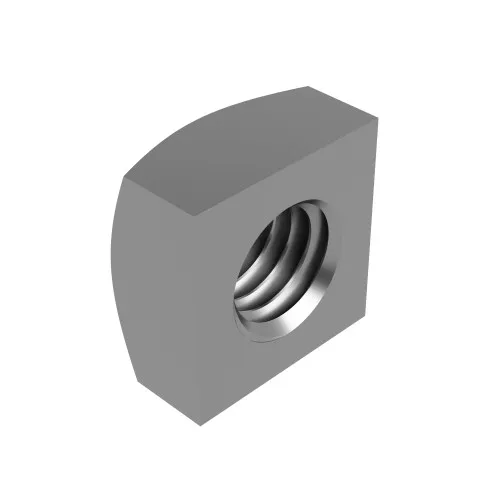

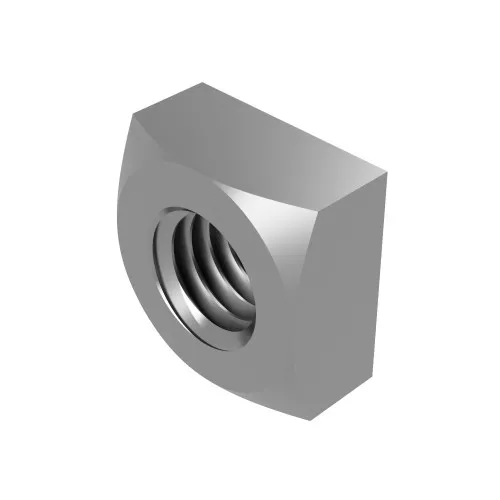

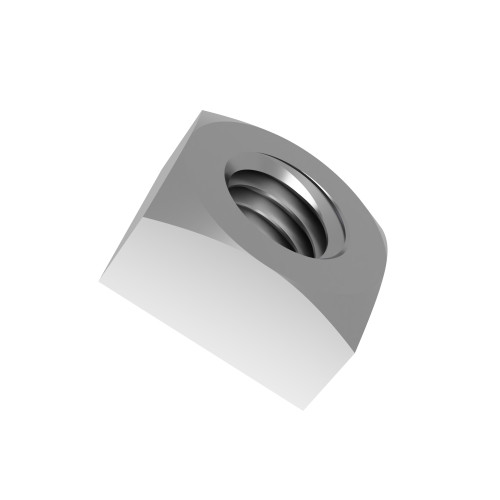

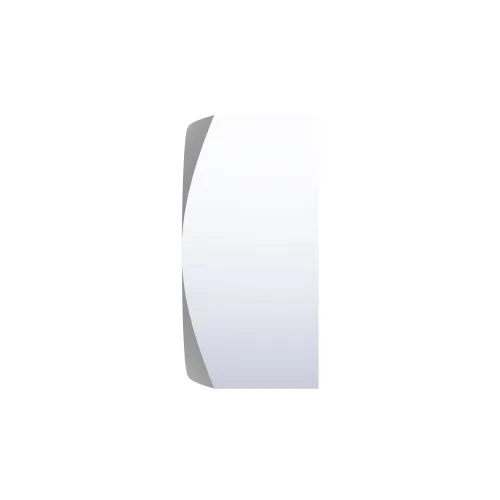

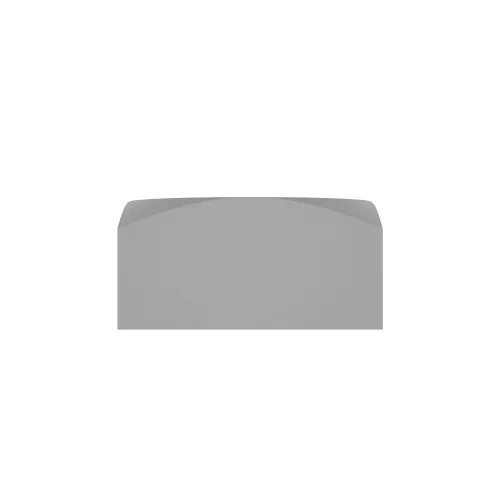

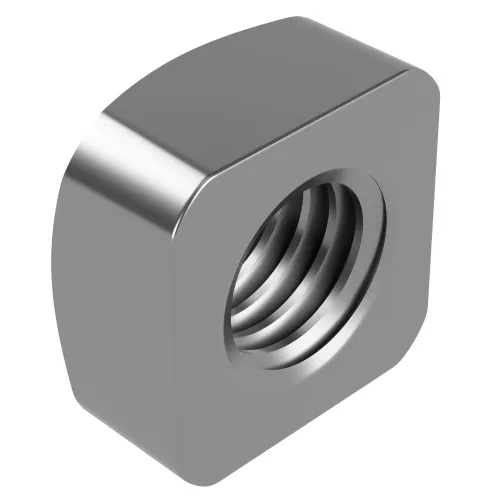

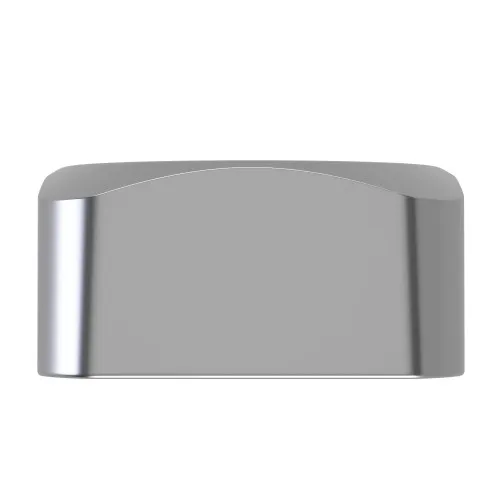

M16 Chamfered Square Nut (DIN 557) | Marine Grade A4 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.81 | £4.57 |
| 50 - 99 | £3.17 | £3.81 |
| 100 - 249 | £2.86 | £3.43 |
| 250 - 499 | £2.54 | £3.05 |
| 500 - 999 | £2.23 | £2.67 |
| 1000 + | £2.13 | £2.56 |
£4.57 / each
Product Specification
| Thread Size | M16 |
| Thread Pitch | 2.00mm |
| Material | A4 Stainless Steel |
| Across Flats | 24mm |
| Height | 13mm |
| Standard | DIN 557 |
Frequently Bought Together
- Material A1 Stainless Steel
- Diameter 5mm
- Length 20mm
- Standard ISO 2338A
- Tolerance Band m6
- Material A4 Stainless Steel
- Thickness 3.00mm
- Internal Diameter 17.0mm
- Outside Diameter 30.0mm
- Standard DIN 125A
- Size M16
Total Price: £0.00

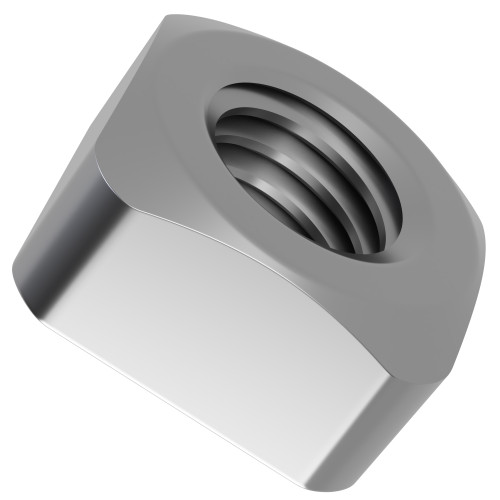

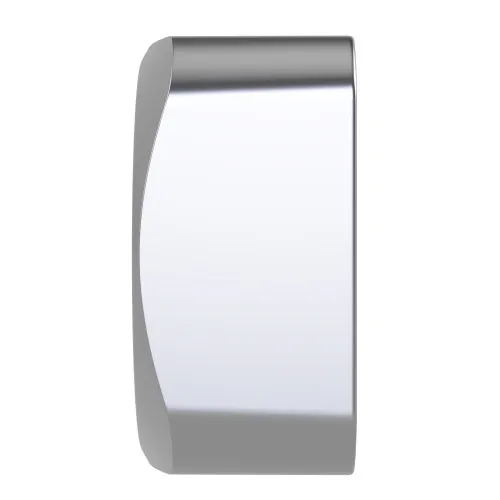

M16 Chamfered Square Nut | DIN 557 | Marine Grade A4 Stainless Steel
Providing a secure threaded connection for outdoor machinery and exposed equipment, this M16 square fastening nut combines the larger flats of a square nut with a chamfered top face. The design is useful with compatible square nuts and bolts assemblies where reliable tightening and removal are important. The A4 grade provides enhanced resistance to corrosion for suitable outdoor, coastal and marine environments.
What Are DIN 557 Chamfered Square Nuts?
Stainless Steel Square Nuts to DIN 557 are designed for compatible metric bolts, screws and threaded components. Their four-sided shape can reduce the likelihood of rounding during tightening while the chamfered upper face improves handling and gives visible installations a cleaner finish.
Common Applications
- Marine Equipment: A4 Stainless Steel versions suit suitable coastal and marine environments requiring enhanced corrosion resistance.
- Machinery Assembly: Secures compatible bolts and threaded components in machinery, equipment and fabricated assemblies.
- Workshop Fixtures: Provides a durable threaded fastening point in jigs, brackets and workshop equipment.
- Framed Structures: Supports secure bolted joints in suitable fabricated frames and structural components.

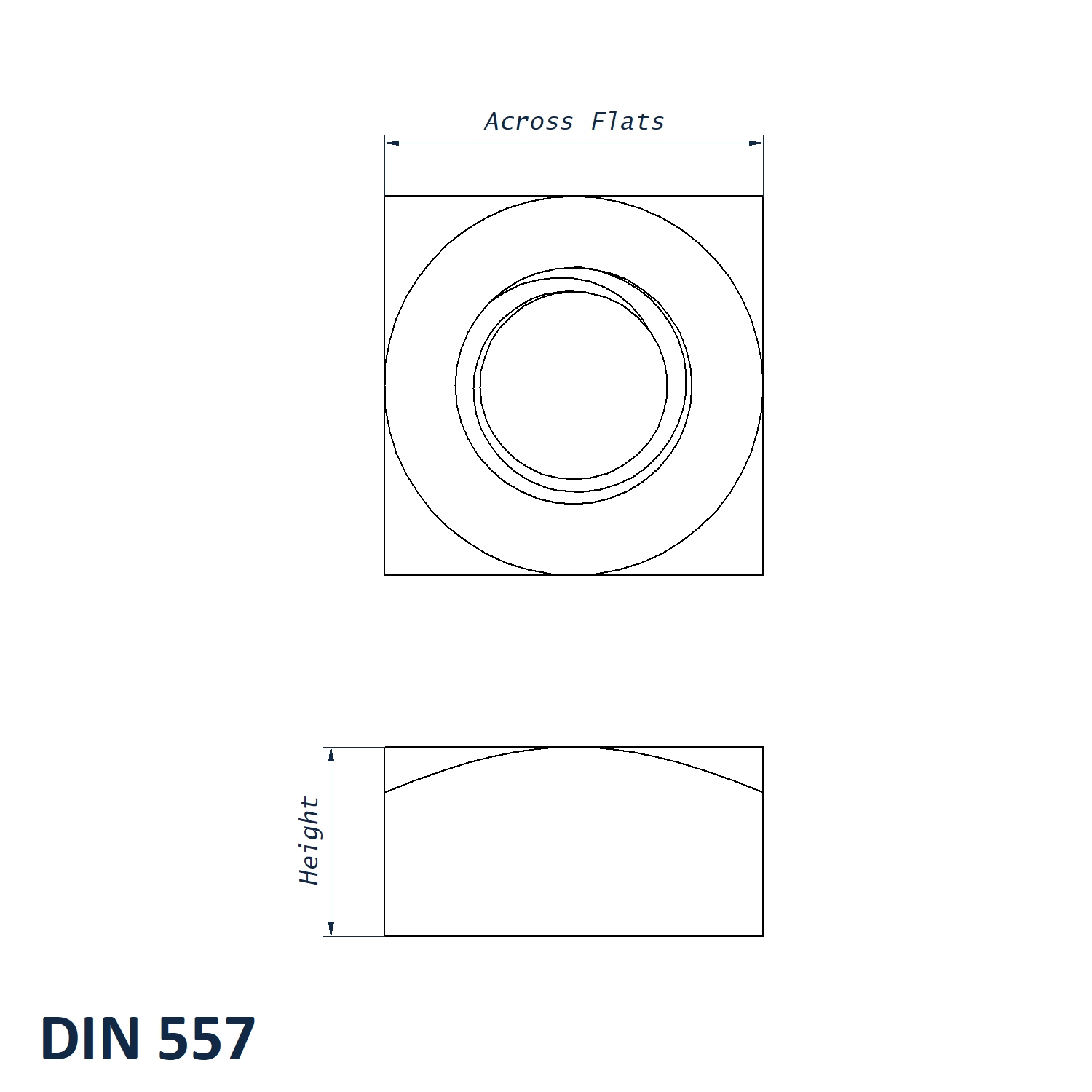

M16 DIN 557 Chamfered Square Nut Dimensions
- Thread Size: M16
- Thread Pitch: 2.00mm
- Across Flats: 24mm
- Height: 13mm
- Material: A4 Stainless Steel
- Standard: DIN 557
Key Benefits
- DIN 557 manufacture provides a recognised dimensional standard for this chamfered square-nut format.
- Chamfered top edge removes sharp corners around the upper face and provides a cleaner finish.
- M16 metric thread provides the specified fastening size.
- 24mm across-flats dimension provides the stated square body width.
Compare more sizes in our Chamfered Square Nuts DIN 557 range. For other square nut designs, browse our complete Square Nuts range to compare alternative standards and fixing styles. If you are unsure which size or grade suits your application, contact our team on 01233 713581.
| Code | Thread Size | Material | Height | Thread Pitch | Across Flats | Standard | Stock | |
|---|---|---|---|---|---|---|---|---|
| SQN557-M10-A2 | M10 | A2 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M10-A4 | M10 | A4 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A2 | M12 | A2 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A4 | M12 | A4 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A2 | M16 | A2 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A4 | M16 | A4 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A2 | M5 | A2 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A4 | M5 | A4 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A2 | M6 | A2 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A4 | M6 | A4 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A2 | M8 | A2 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A4 | M8 | A4 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
