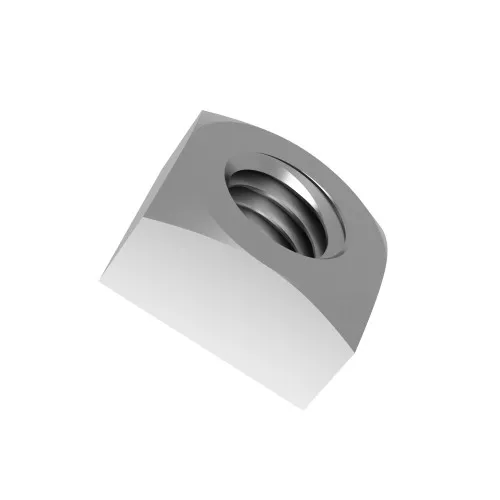

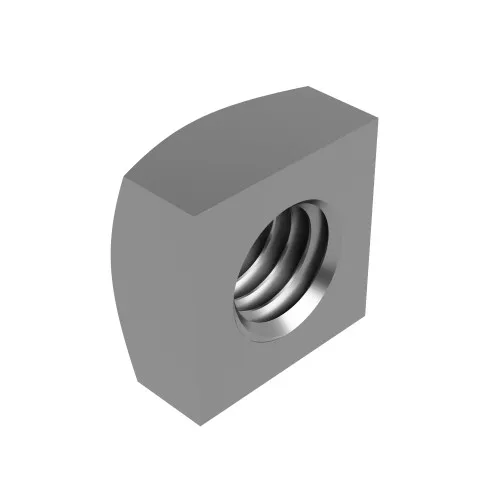

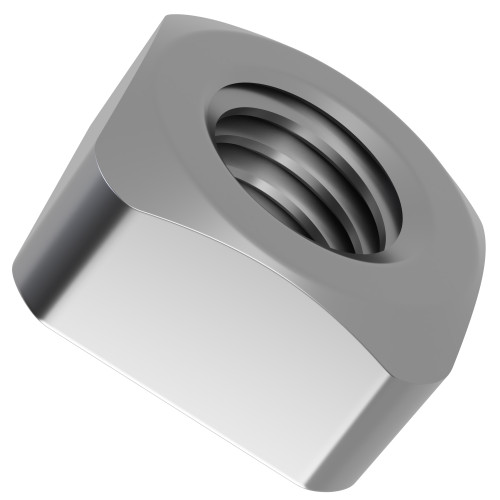

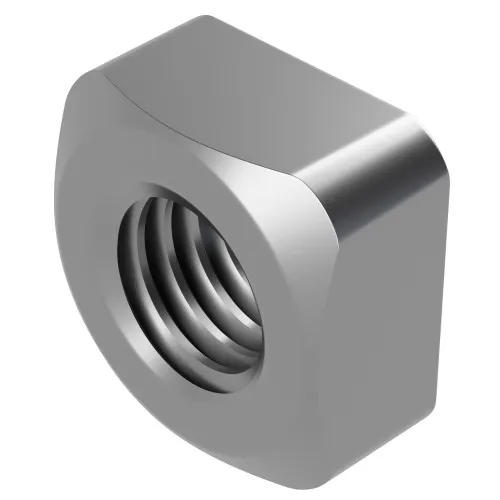

M12 Chamfered Square Nut (DIN 557) | A2 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.65 | £0.78 |
| 50 - 99 | £0.54 | £0.65 |
| 100 - 249 | £0.43 | £0.52 |
| 250 - 499 | £0.33 | £0.39 |
| 500 - 999 | £0.23 | £0.28 |
| 1000 + | £0.18 | £0.22 |
£0.78 / each
Product Specification
| Thread Size | M12 |
| Thread Pitch | 1.75mm |
| Material | A2 Stainless Steel |
| Across Flats | 19mm |
| Height | 10mm |
| Standard | DIN 557 |
Frequently Bought Together
- Material A1 Stainless Steel
- Diameter 5mm
- Length 20mm
- Standard ISO 2338A
- Tolerance Band m6
- Thread Size M12
- Material A2 Stainless Steel
- Head Diameter 21.00mm
- Length 20mm
- Drive H8
- Standard ISO 7380-1
- Pitch 1.75mm
- Head Height 6.60mm
- Head Style Button Head
- Material A2 Stainless Steel
- Thickness 2.50mm
- Internal Diameter 13.0mm
- Outside Diameter 24.0mm
- Standard DIN 125A
- Size M12
Total Price: £0.00
M12 Chamfered Square Nut | DIN 557 | A2 Stainless Steel
For general engineering and maintenance, this M12 square nut provides a robust alternative to a conventional hex nut. The square body offers large flats that are less prone to rounding while the 1.75mm thread pitch matches compatible metric bolts and screws. The A2 Stainless Steel grade provides good corrosion resistance for general engineering, machinery and fabrication.
What Are DIN 557 Chamfered Square Nuts?
Chamfered Square Nuts combine broad square flats with a rounded or bevelled top edge. The square profile provides positive tool engagement and a larger contact area than many hexagonal nuts while the DIN 557 format gives a thicker nut body for demanding assemblies.
Common Applications
- Visible Installations: Chamfered upper edges provide a cleaner finish where the nut remains exposed after assembly.
- Metal Fabrication: Provides a strong square fastening point for frames, brackets and structural metalwork.
- Mechanical Assemblies: Large square flats provide positive holding and tightening in general engineering applications.
- Maintenance and Repair: Provides a replacement square nut for equipment originally designed around DIN 557 dimensions.

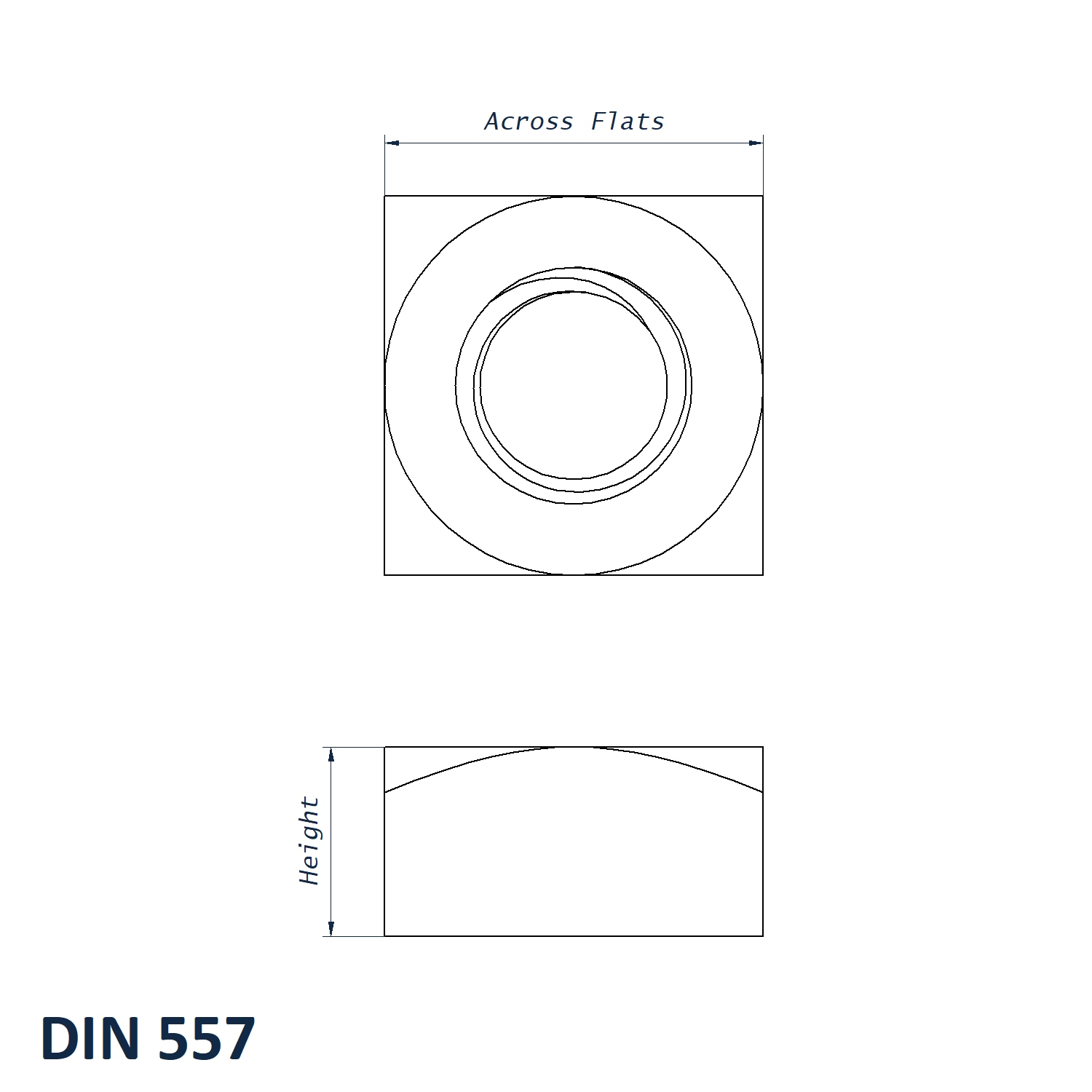

M12 DIN 557 Chamfered Square Nut Dimensions
- Thread Size: M12
- Thread Pitch: 1.75mm
- Across Flats: 19mm
- Height: 10mm
- Material: A2 Stainless Steel
- Standard: DIN 557
Key Benefits
- 19mm across-flats dimension provides the stated square body width.
- A2 Stainless Steel construction provides corrosion resistance for suitable engineering applications.
- Chamfered top edge removes sharp corners around the upper face and provides a cleaner finish.
- Thicker construction makes DIN 557 suitable where a more substantial square nut is preferred.
Browse the complete Stainless Steel Chamfered Square Nuts range for other metric sizes. You can also compare more Square Nuts, including thinner DIN 562 options and weld-on DIN 928 styles. We can help you choose the correct option on 01233 713581.
| Code | Thread Size | Material | Height | Thread Pitch | Across Flats | Standard | Stock | |
|---|---|---|---|---|---|---|---|---|
| SQN557-M10-A2 | M10 | A2 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M10-A4 | M10 | A4 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A2 | M12 | A2 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A4 | M12 | A4 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A2 | M16 | A2 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A4 | M16 | A4 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A2 | M5 | A2 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A4 | M5 | A4 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A2 | M6 | A2 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A4 | M6 | A4 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A2 | M8 | A2 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A4 | M8 | A4 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
