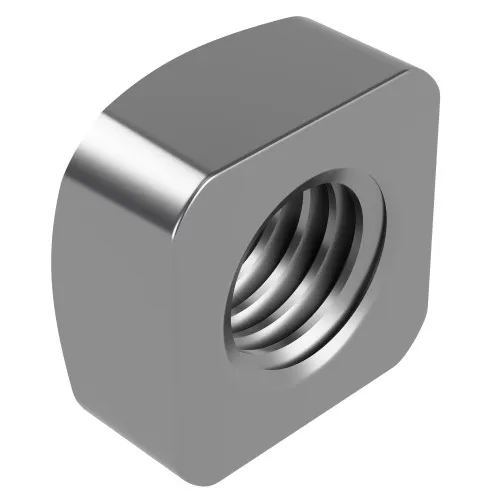

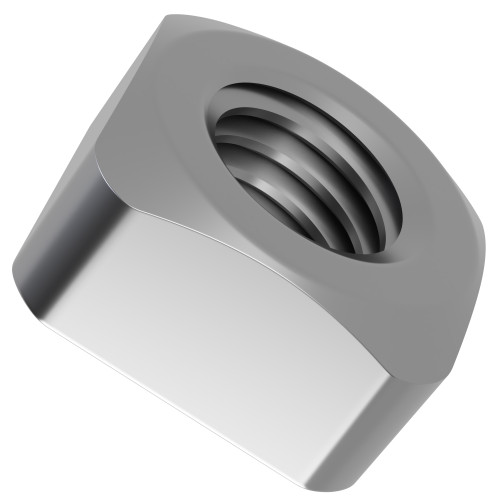

M5 Chamfered Square Nut (DIN 557) | A2 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.06 | £0.07 |
| 50 - 99 | £0.05 | £0.06 |
| 100 - 249 | £0.04 | £0.05 |
| 250 - 499 | £0.03 | £0.04 |
| 500 - 999 | £0.03 | £0.03 |
| 1000 + | £0.02 | £0.02 |
£0.07 / each
Product Specification
| Thread Size | M5 |
| Thread Pitch | 0.80mm |
| Material | A2 Stainless Steel |
| Across Flats | 8mm |
| Height | 4mm |
| Standard | DIN 557 |
Frequently Bought Together
- Material A1 Stainless Steel
- Diameter 5mm
- Length 20mm
- Standard ISO 2338A
- Tolerance Band m6
- Thread Size M5
- Material A2 Stainless Steel
- Head Diameter 9.50mm
- Length 20mm
- Drive H3
- Standard ISO 7380-1
- Pitch 0.80mm
- Head Height 2.75mm
- Head Style Button Head
- Material A2 Stainless Steel
- Thickness 1.00mm
- Internal Diameter 5.3mm
- Outside Diameter 10.0mm
- Standard DIN 125A
- Size M5
Total Price: £0.00

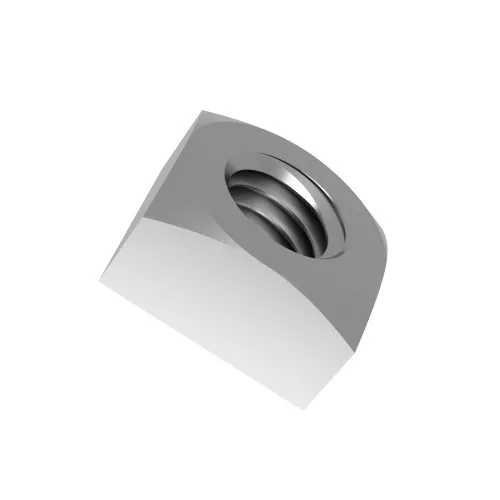

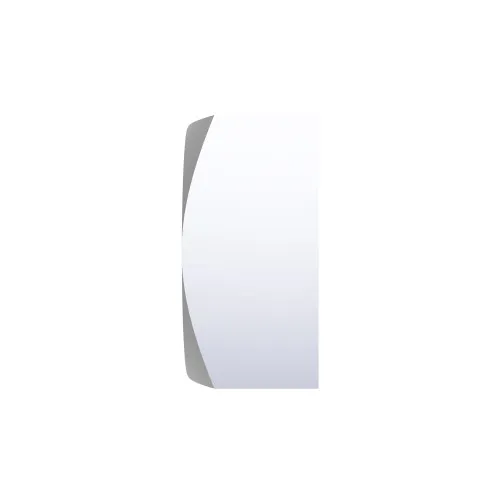

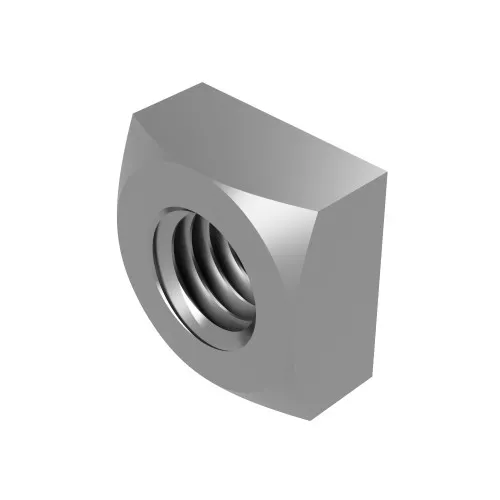

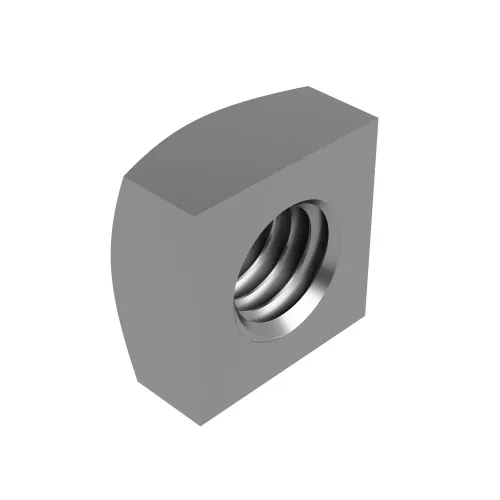

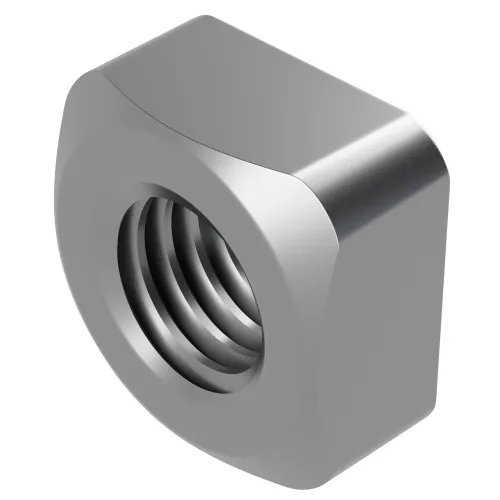

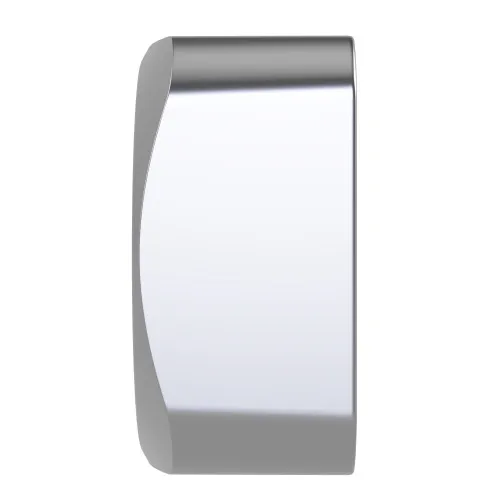

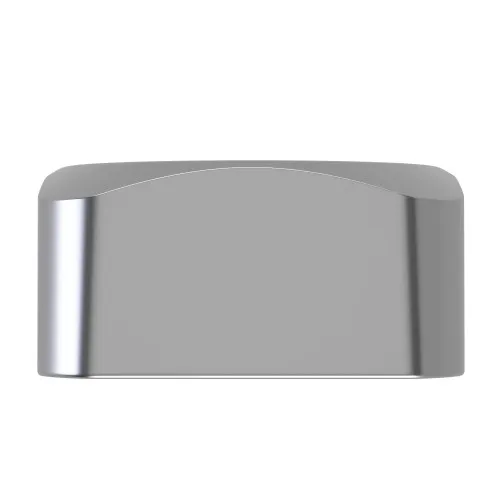

M5 Chamfered Square Nut | DIN 557 | A2 Stainless Steel
This M5 stainless steel square nut is manufactured to DIN 557 from A2 Stainless Steel for secure fastening with compatible bolts and threaded components. The chamfered upper face removes the sharp top edge while the square body provides broad flats for positive tool engagement and stable seating. The A2 Stainless Steel grade provides good corrosion resistance for general engineering, machinery and fabrication.
What Are DIN 557 Chamfered Square Nuts?
Square Machine Nuts to DIN 557 provide a strong four-sided fastening point for machinery, fabrication and structural assemblies. Their large flats offer good tool contact while the chamfered face removes potentially sharp edges around the top of the nut.
Common Applications
- Machinery Assembly: Secures compatible bolts and threaded components in machinery, equipment and fabricated assemblies.
- Furniture Manufacturing: Can be used with compatible square nuts and bolts in timber, metal and mixed-material furniture assemblies.
- Framed Structures: Supports secure bolted joints in suitable fabricated frames and structural components.
- Outdoor Equipment: Stainless steel construction suits compatible external assemblies where corrosion resistance is important.

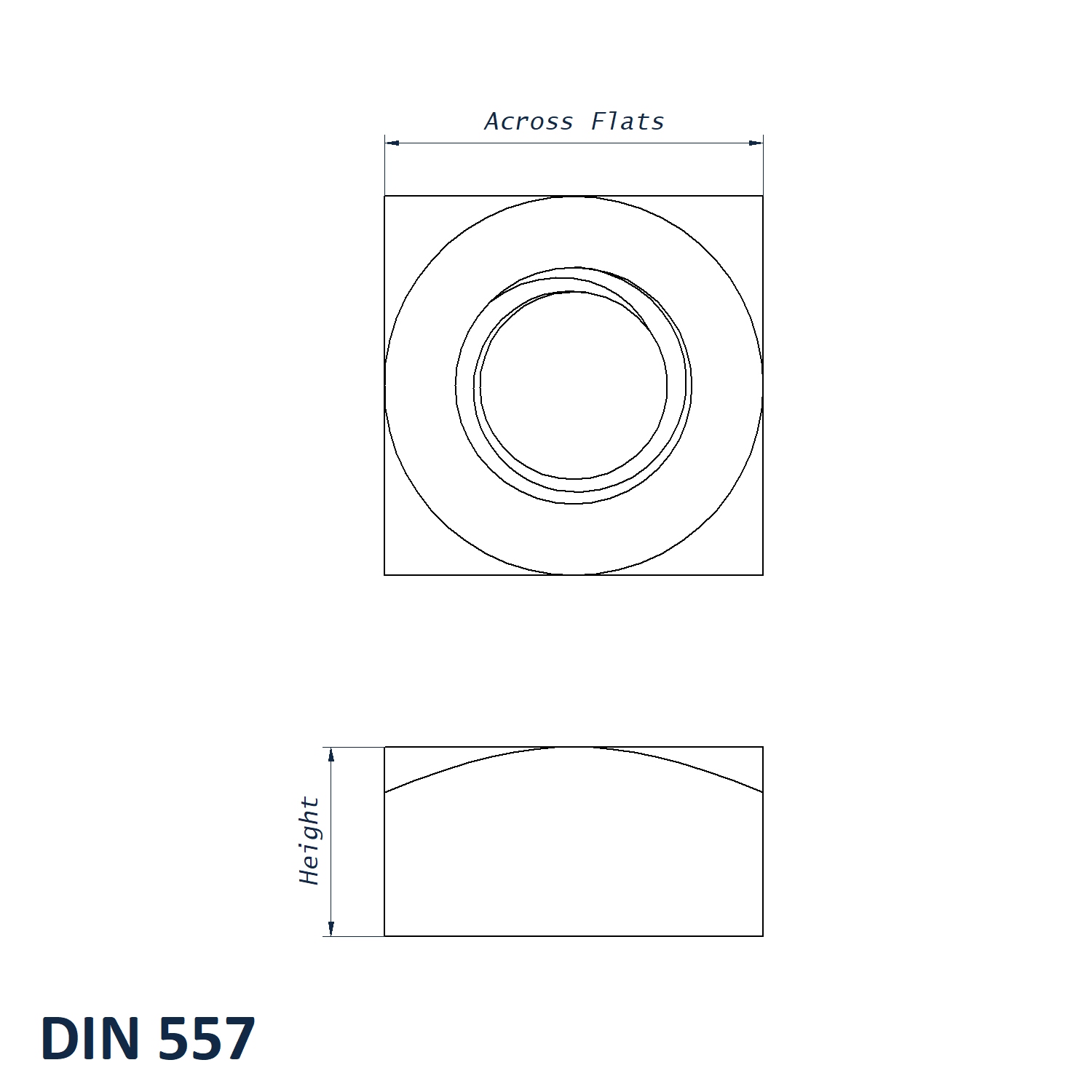

M5 DIN 557 Chamfered Square Nut Dimensions
- Thread Size: M5
- Thread Pitch: 0.80mm
- Across Flats: 8mm
- Height: 4mm
- Material: A2 Stainless Steel
- Standard: DIN 557
Key Benefits
- Four large flats provide positive tool engagement and help reduce rounding during tightening.
- Square profile provides a broad bearing area against the mating component.
- 0.80mm thread pitch matches compatible metric bolts and threaded components.
- 4mm height provides the thicker DIN 557 nut profile.
Browse the complete Stainless Steel Chamfered Square Nuts range for other metric sizes. You can also compare more Square Nuts, including thinner DIN 562 options and weld-on DIN 928 styles. We can help you choose the correct option on 01233 713581.
| Code | Thread Size | Material | Height | Thread Pitch | Across Flats | Standard | Stock | |
|---|---|---|---|---|---|---|---|---|
| SQN557-M10-A2 | M10 | A2 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M10-A4 | M10 | A4 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A2 | M12 | A2 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A4 | M12 | A4 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A2 | M16 | A2 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A4 | M16 | A4 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A2 | M5 | A2 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A4 | M5 | A4 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A2 | M6 | A2 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A4 | M6 | A4 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A2 | M8 | A2 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A4 | M8 | A4 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
