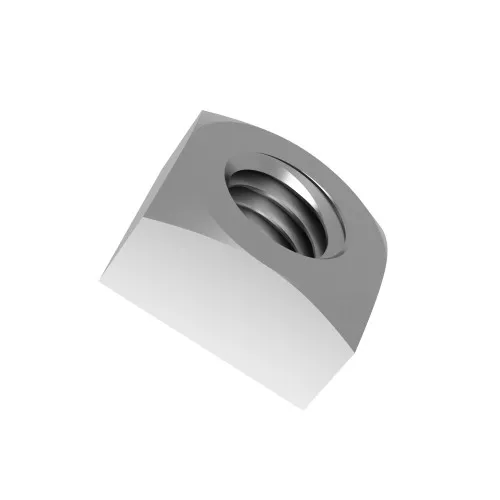

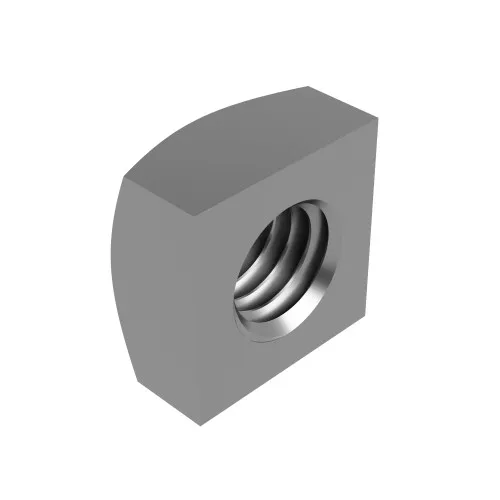

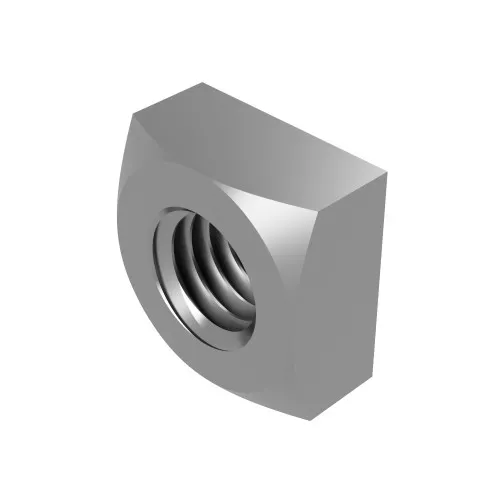

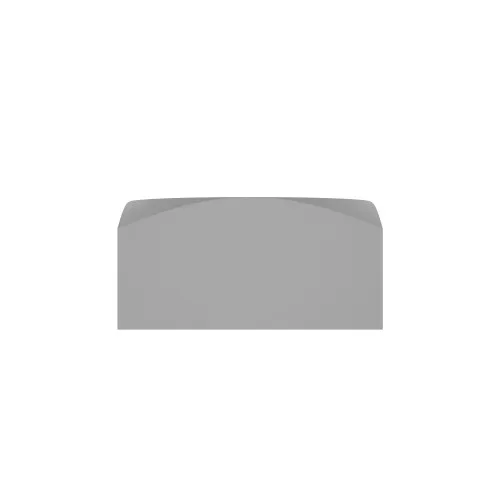

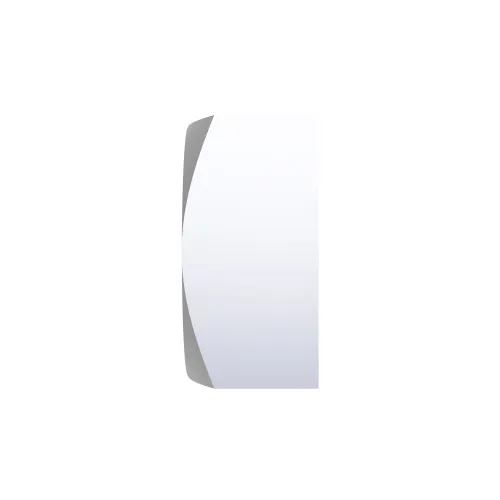

M8 Chamfered Square Nut (DIN 557) | A2 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.16 | £0.19 |
| 50 - 99 | £0.13 | £0.16 |
| 100 - 249 | £0.11 | £0.13 |
| 250 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.06 | £0.07 |
| 1000 + | £0.04 | £0.05 |
£0.19 / each
Product Specification
| Thread Size | M8 |
| Thread Pitch | 1.25mm |
| Material | A2 Stainless Steel |
| Across Flats | 13mm |
| Height | 6mm |
| Standard | DIN 557 |
Frequently Bought Together
- Material A1 Stainless Steel
- Diameter 5mm
- Length 20mm
- Standard ISO 2338A
- Tolerance Band m6
- Thread Size M8
- Material A2 Stainless Steel
- Head Diameter 14.00mm
- Length 20mm
- Drive H5
- Standard ISO 7380-1
- Pitch 1.25mm
- Head Height 4.40mm
- Head Style Button Head
- Material A2 Stainless Steel
- Thickness 1.60mm
- Internal Diameter 8.4mm
- Outside Diameter 16.0mm
- Standard DIN 125A
- Size M8
Total Price: £0.00

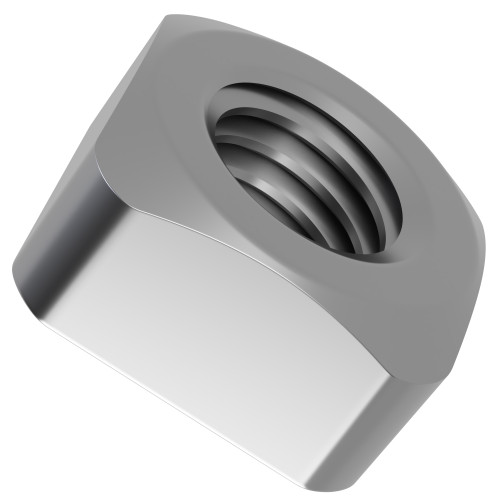

M8 Chamfered Square Nut | DIN 557 | A2 Stainless Steel
This M8 four-sided square nut suits workshop fixtures and mechanical assemblies where a square-profile nut is preferred for tool engagement, positioning or resistance to turning. Manufactured to DIN 557, the nut measures 13mm across flats with a 6mm overall height. The A2 Stainless Steel grade provides good corrosion resistance for general engineering, machinery and fabrication.
What Are DIN 557 Chamfered Square Nuts?
Chamfered Square Nuts combine broad square flats with a rounded or bevelled top edge. The square profile provides positive tool engagement and a larger contact area than many hexagonal nuts while the DIN 557 format gives a thicker nut body for demanding assemblies.
Common Applications
- Furniture Manufacturing: Can be used with compatible square nuts and bolts in timber, metal and mixed-material furniture assemblies.
- Mechanical Assemblies: Large square flats provide positive holding and tightening in general engineering applications.
- Outdoor Equipment: Stainless steel construction suits compatible external assemblies where corrosion resistance is important.
- Visible Installations: Chamfered upper edges provide a cleaner finish where the nut remains exposed after assembly.

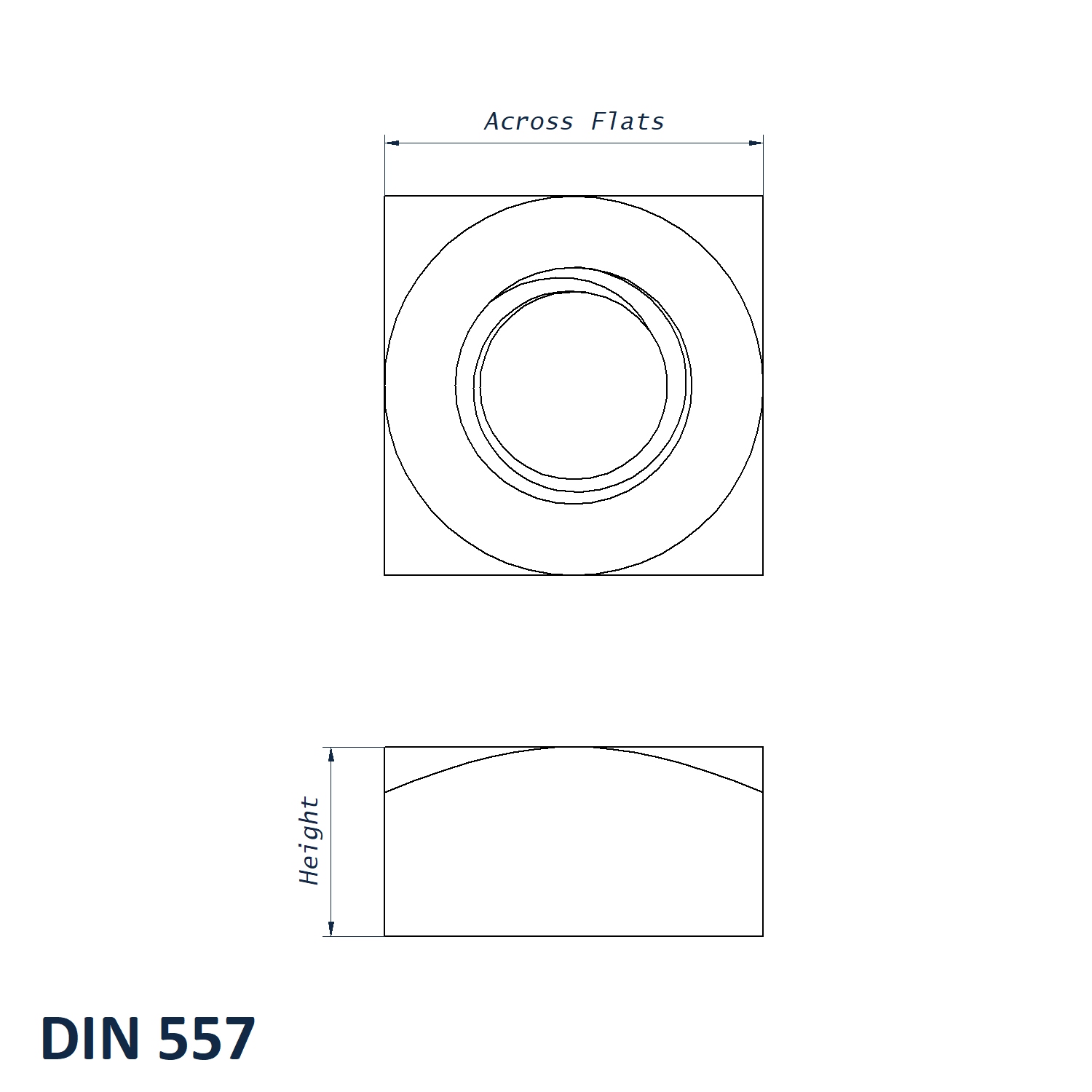

M8 DIN 557 Chamfered Square Nut Dimensions
- Thread Size: M8
- Thread Pitch: 1.25mm
- Across Flats: 13mm
- Height: 6mm
- Material: A2 Stainless Steel
- Standard: DIN 557
Key Benefits
- M8 metric thread provides the specified fastening size.
- 13mm across-flats dimension provides the stated square body width.
- DIN 557 manufacture provides a recognised dimensional standard for this chamfered square-nut format.
- Chamfered top edge removes sharp corners around the upper face and provides a cleaner finish.
Browse the complete Stainless Steel Chamfered Square Nuts range for other metric sizes. You can also compare more Square Nuts, including thinner DIN 562 options and weld-on DIN 928 styles. We can help you choose the correct option on 01233 713581.
| Code | Thread Size | Material | Height | Thread Pitch | Across Flats | Standard | Stock | |
|---|---|---|---|---|---|---|---|---|
| SQN557-M10-A2 | M10 | A2 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M10-A4 | M10 | A4 Stainless Steel | 8mm | 1.50mm | 17mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A2 | M12 | A2 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M12-A4 | M12 | A4 Stainless Steel | 10mm | 1.75mm | 19mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A2 | M16 | A2 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M16-A4 | M16 | A4 Stainless Steel | 13mm | 2.00mm | 24mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A2 | M5 | A2 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M5-A4 | M5 | A4 Stainless Steel | 4mm | 0.80mm | 8mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A2 | M6 | A2 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M6-A4 | M6 | A4 Stainless Steel | 5mm | 1.00mm | 10mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A2 | M8 | A2 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
| SQN557-M8-A4 | M8 | A4 Stainless Steel | 6mm | 1.25mm | 13mm | DIN 557 |
Checking...
|
|
