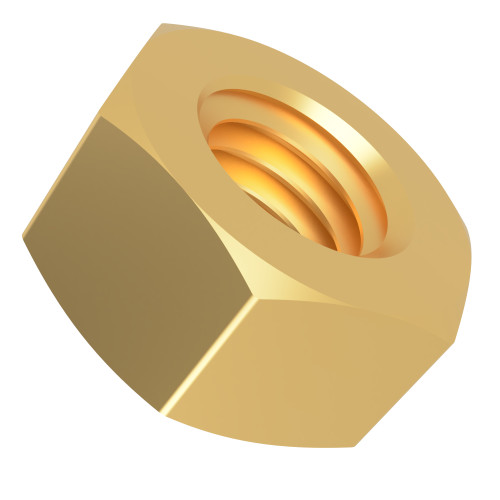

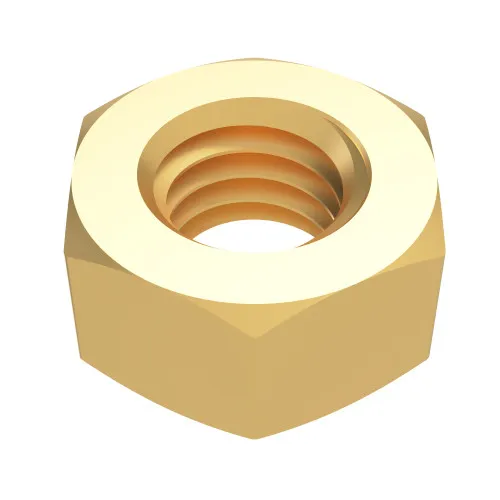

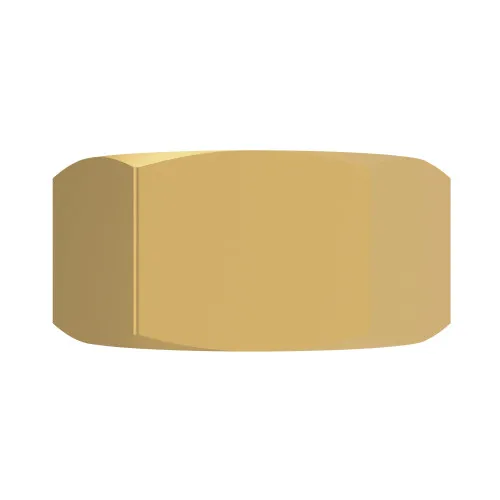

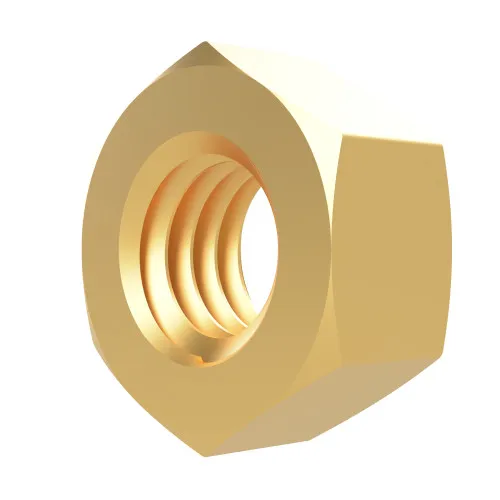

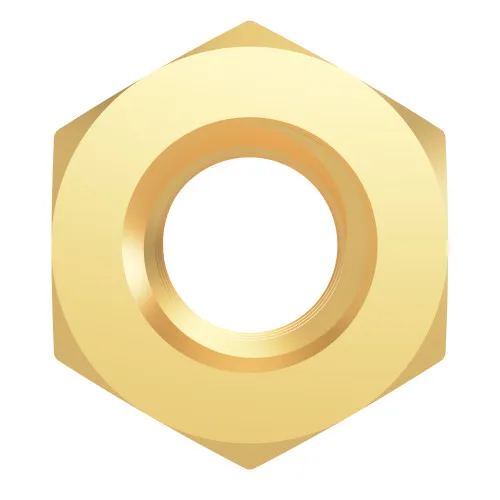

M3 Hex Nut (DIN 934) | Brass

Product code: HN934-M3-BRA
View All Specifications
M3 Hex Nut (DIN 934) | Brass
M3 Hex Nut (DIN 934) | Brass
M3 Hex Nut (DIN 934) | Brass
M3 Hex Nut (DIN 934) | Brass
M3 Hex Nut (DIN 934) | Brass
M3 Hex Nut (DIN 934) | Brass
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.23 £0.28
10 - 49 £0.15 £0.18
50 - 99 £0.12 £0.14
100 - 999 £0.07 £0.09
1000 + £0.04 £0.05

£0.28 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Thread Pitch 0.50mm
Material Brass
Across Flats 5.5mm
Height 2.40mm
Standard DIN 934

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 Full Hex Nut (DIN 934) | Brass

Designed for M3 threaded fixings, this DIN 934 hexagonal nut uses a brass body and a six-sided profile for spanner or socket installation. The 2.40mm nut height can be checked against the available thread engagement and assembly clearance.

What Are Full Hex Nuts?

When a screw or stud needs a separate fastening element, a full hex nut provides internal threads and spanner flats. Ensure thread diameter and pitch correspond before assembly. Other metric hex nuts offer different materials and dimensions for related fastening assemblies. Compatible metric machine screws provide the external thread while stainless steel washers can help distribute clamping force where appropriate. The specified M3 metal nut can be used in applications suited to its material grade.

Common Applications

  • Machinery Assembly: Fastening compatible M3 bolts through mechanical subassemblies where the specified Brass is suitable.
  • Instrument Fittings: Securing compatible brass or other appropriately selected threaded parts in fittings and assembly work.
  • Equipment Maintenance: Replacing an existing M3 nut on a compatible threaded rod or screw while checking 5.5mm spanner clearance.
  • General Engineering: Providing a removable threaded connection for fixture supports with a nut of the specified grade.

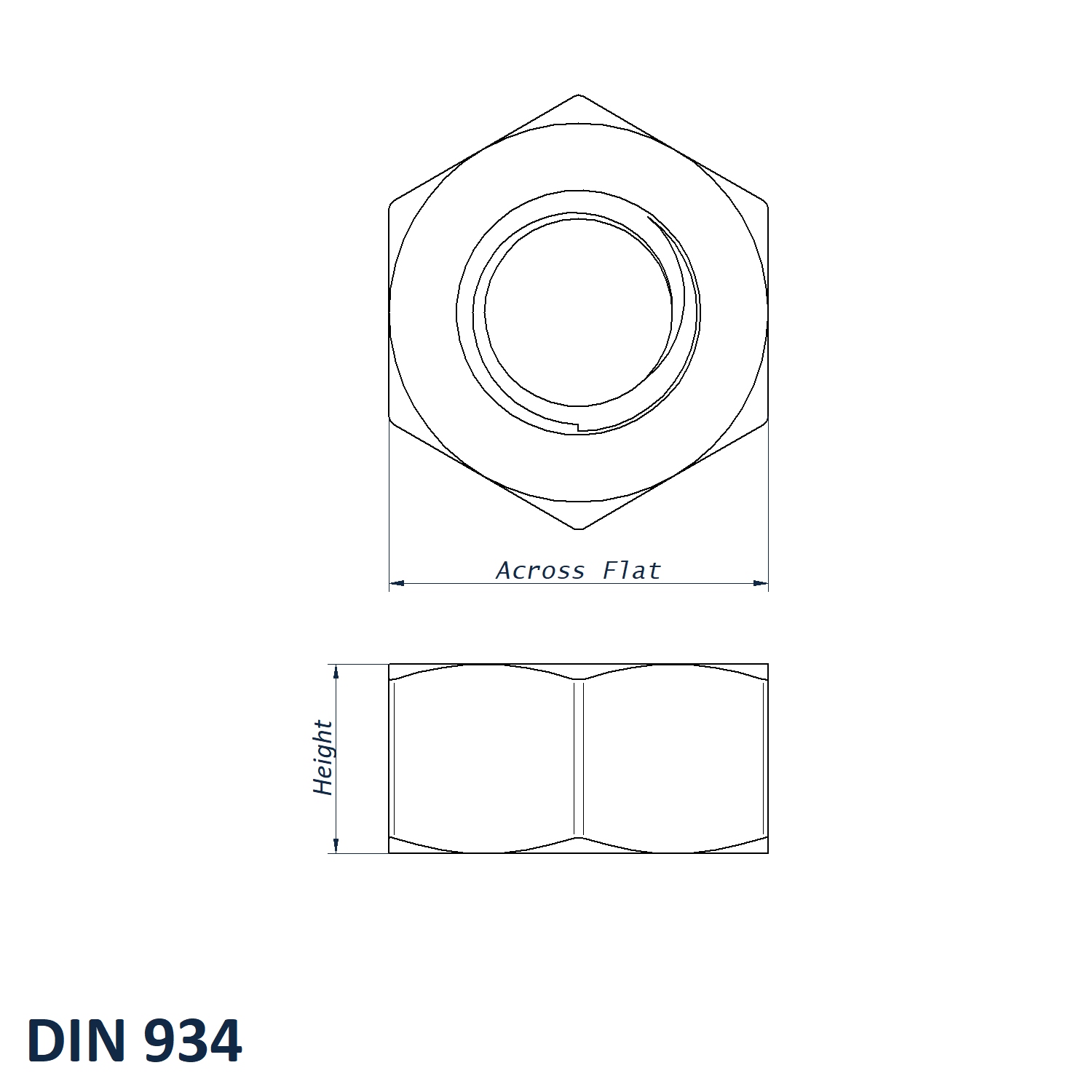

M3 Full Hex Nut Dimensions

  • Thread Size: M3
  • Thread Pitch: 0.50mm
  • Material: Brass
  • Across Flats: 5.5mm
  • Height: 2.40mm
  • Standard: DIN 934

Key Benefits

  • Allows threaded components to be assembled and removed using appropriate tools.
  • Six external flats provide contact surfaces for a suitable spanner or socket.
  • 5.5mm across flats helps determine tool fit and surrounding clearance.
  • The DIN 934 designation identifies the specified hex nut standard.

Different metric full hex nuts can accommodate other fastener diameters and material requirements. If you need help selecting the correct size, call us on 01233 713581.
