Ergonomic Clamping Handle - HW367
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.77 | £4.53 |
| 10 - 24 | £3.07 | £3.68 |
| 25 - 49 | £2.83 | £3.39 |
| 50 - 99 | £2.45 | £2.94 |
| 100 - 499 | £1.98 | £2.38 |
| 500 + | £1.70 | £2.04 |
£4.53 / each
Product Specification
| Thread Size | M12 |
| Thread Type | Female |
| Handle Length | 83mm |
| Height | 47mm |
| Shank Diameter | 19mm |
| Handle Material | Nylon |
| Thread Material | BZP |
| Handle Colour | Black |
| Button Colour | Orange |
Frequently Bought Together
300mm Black Reusable Cable Ties (88mm Max Bundle) - 4.8mm Wide - 22kg Tensile Strength | 100pk
- Colour Black
- Width 4.8mm
- Max Bundle Diameter 88mm
- Length 300mm
- Minimum Tensile Strength 22kg
- Thread Size M12 x 30mm
- Thread Material Steel
- Height 47mm
- Shank Diameter 19mm
- Thread Type Male
- Handle Material Nylon
- Handle Length 83mm
- Handle Colour Orange
- Button Colour Black
- Material A2 Stainless Steel
- Handle Height 25.7mm
- Shoulder Diameter 14.2mm
- Shoulder Height 17.8mm
- Pin Diameter 10mm
- Grip Length 60mm
- Handle Diameter 25.4mm
- Pull Ring Diameter 15mm
- Exposed Length 9mm
- Knob Diameter 7.4mm
- Extended Ball Diameter 11.9mm
Total Price: £0.00

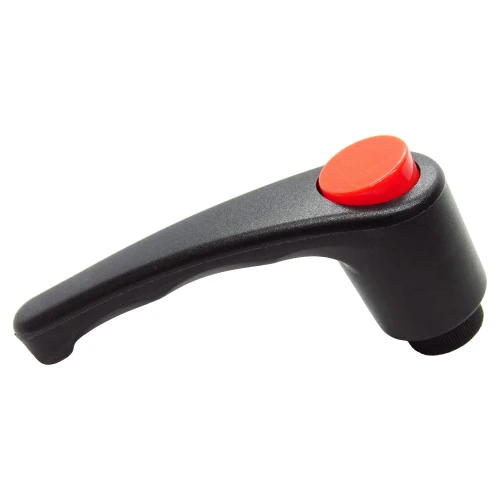

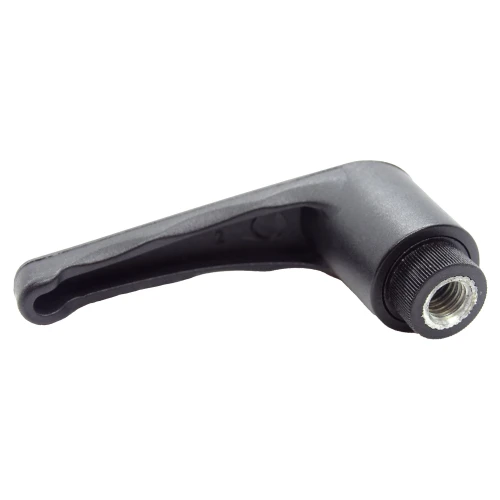

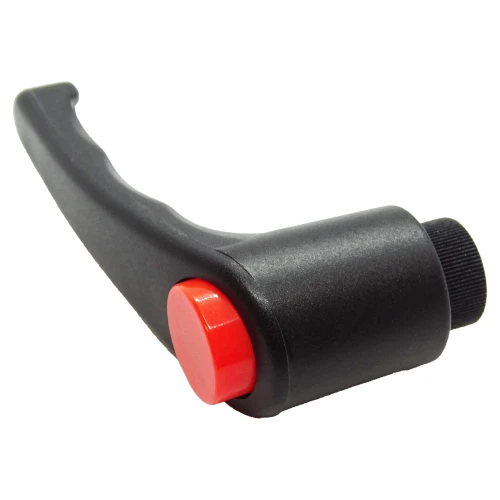

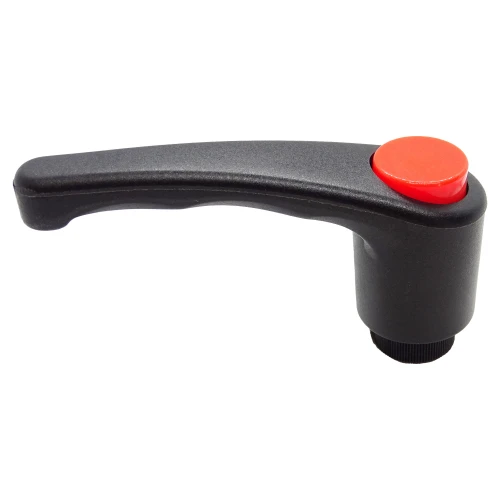

M12 Female Ergonomic Clamping Handle | 83mm Handle | Black/Orange Nylon | BZP Thread
For industrial guards, stops and positioning systems, this M12 female ergonomic clamping handle combines an internal threaded connection with a 83mm ergonomic lever. The ratchet action is useful where the handle needs to be tightened then repositioned for clearance around nearby equipment. The BZP threaded component provides a zinc-plated steel fixing for general indoor and suitably protected engineering applications.
What Are Ergonomic Clamping Handles?
Ratchet Clamping Handles provide manual tightening and adjustment without requiring a separate spanner for each movement. The Nylon lever provides a comfortable operating surface while the threaded section engages with the matching component.
Different applications may suit other clamping levers, including alternative handle shapes, materials and male or female thread options.
Common Applications
- Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
- Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
- Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
- Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

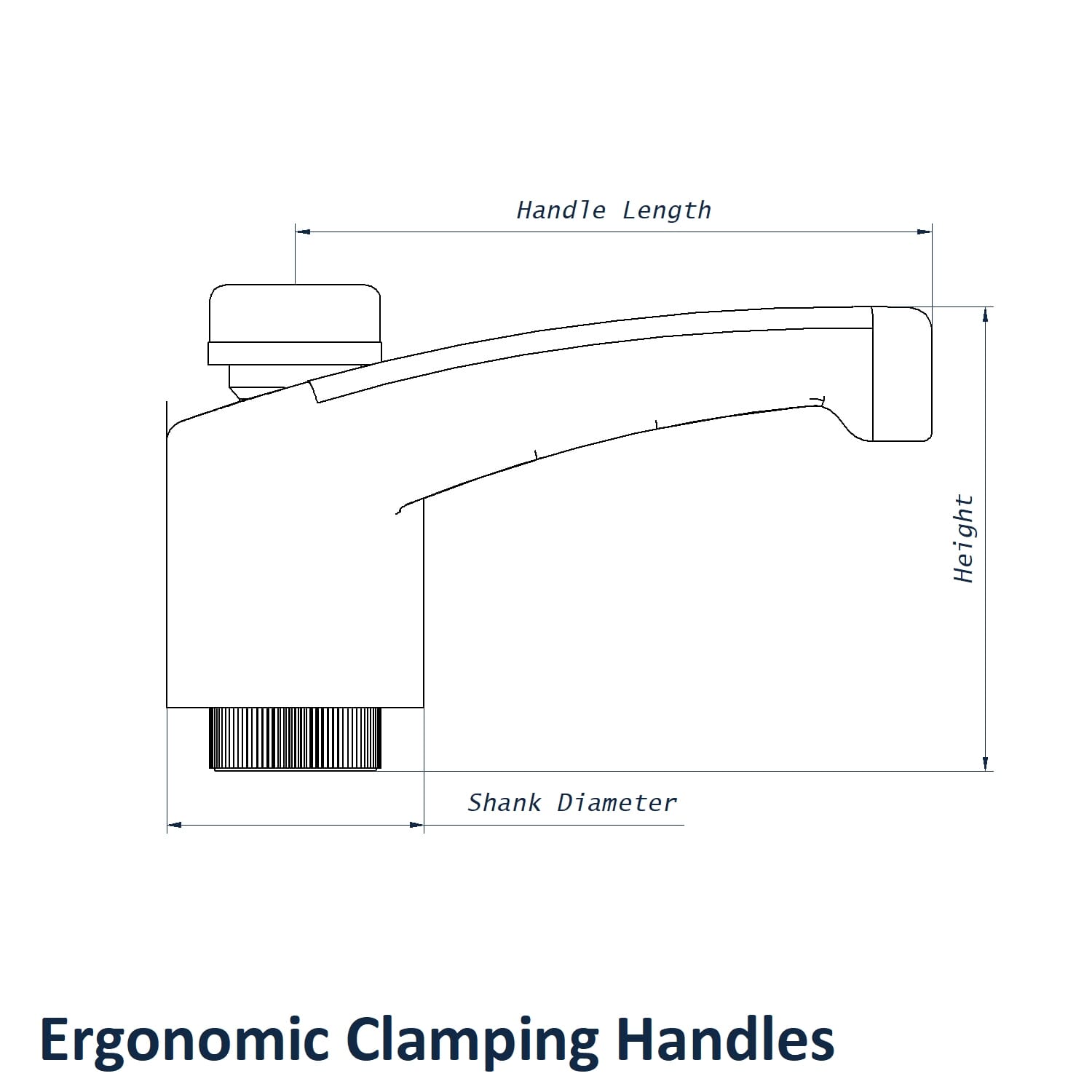

M12 Female Ergonomic Clamping Handle Dimensions
- Thread Size: M12
- Thread Type: Female
- Handle Length: 83mm
- Height: 47mm
- Shank Diameter: 19mm
- Handle Colour: Black
- Button Colour: Orange
- Handle Material: Nylon
- Thread Material: BZP
Key Benefits
- 19mm shank diameter provides the stated central boss dimension.
- BZP threaded component provides the stated fixing material.
- Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
- 83mm handle length provides the stated lever size for hand tightening and adjustment.
See more female ratchet clamping handles for industrial clamping and adjustment applications. For product-selection support, speak with our team on 01233 713581.
| Code | Thread Size | Thread Material | Height | Shank Diameter | Thread Type | Handle Material | Handle Length | Handle Colour | Button Colour | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HW356 | M8 | A2 Stainless Steel | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW357 | M8 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Orange | Black |
Checking...
|
|
| HW358 | M8 | BZP | 38mm | 15mm | Female | Nylon | 65mm | Black | Orange |
Checking...
|
|
| HW359 | M8 | A2 Stainless Steel | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW360 | M8 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Orange | Black |
Checking...
|
|
| HW361 | M8 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW362 | M10 | A2 Stainless Steel | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW363 | M10 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Orange | Black |
Checking...
|
|
| HW364 | M10 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW365 | M12 | A2 Stainless Steel | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
| HW366 | M12 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Orange | Black |
Checking...
|
|
| HW367 | M12 | BZP | 47mm | 19mm | Female | Nylon | 83mm | Black | Orange |
Checking...
|
|
