M5 x 10mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.52 | £0.62 |
| 10 - 24 | £0.42 | £0.50 |
| 25 - 49 | £0.31 | £0.37 |
| 50 - 99 | £0.26 | £0.31 |
| 100 - 499 | £0.23 | £0.28 |
| 500 - 999 | £0.21 | £0.25 |
| 1000 + | £0.16 | £0.19 |
Product Specification
| Thread Size | M5 |
| Thread Length | 10mm |
| Pitch | 0.8mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 5.4mm |
| Flange Diameter | 11.8mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 10mm Flanged Hex Head Bolt (DIN 6921) | A4-70 Stainless Steel
This M5 x 10mm DIN 6921 flanged hex head bolt is built for mounting guides, sensor brackets and framework on packaging machinery. The A4-70 Stainless Steel body, 0.8mm pitch and 11.8mm flange diameter make it suitable for outdoor equipment, marine-adjacent assemblies and stainless fabrications.
A flanged head gives the fixing a larger contact area and can reduce assembly time where a loose washer is not required by the design. With 0.8mm pitch and 8mm across flats, this bolt is suited to buyers who need clear technical matching for procurement or maintenance work.
Common Applications
- Packaging Machinery: mounting guides, sensor brackets and framework on packaging machinery.
- Assembly Lines: keeping fastening work efficient with standard hex tooling.
- Bracket Fixing: offers a neat fixing point for equipment that needs regular adjustment.
- Equipment Repairs: matching existing flange bolt dimensions during replacement.

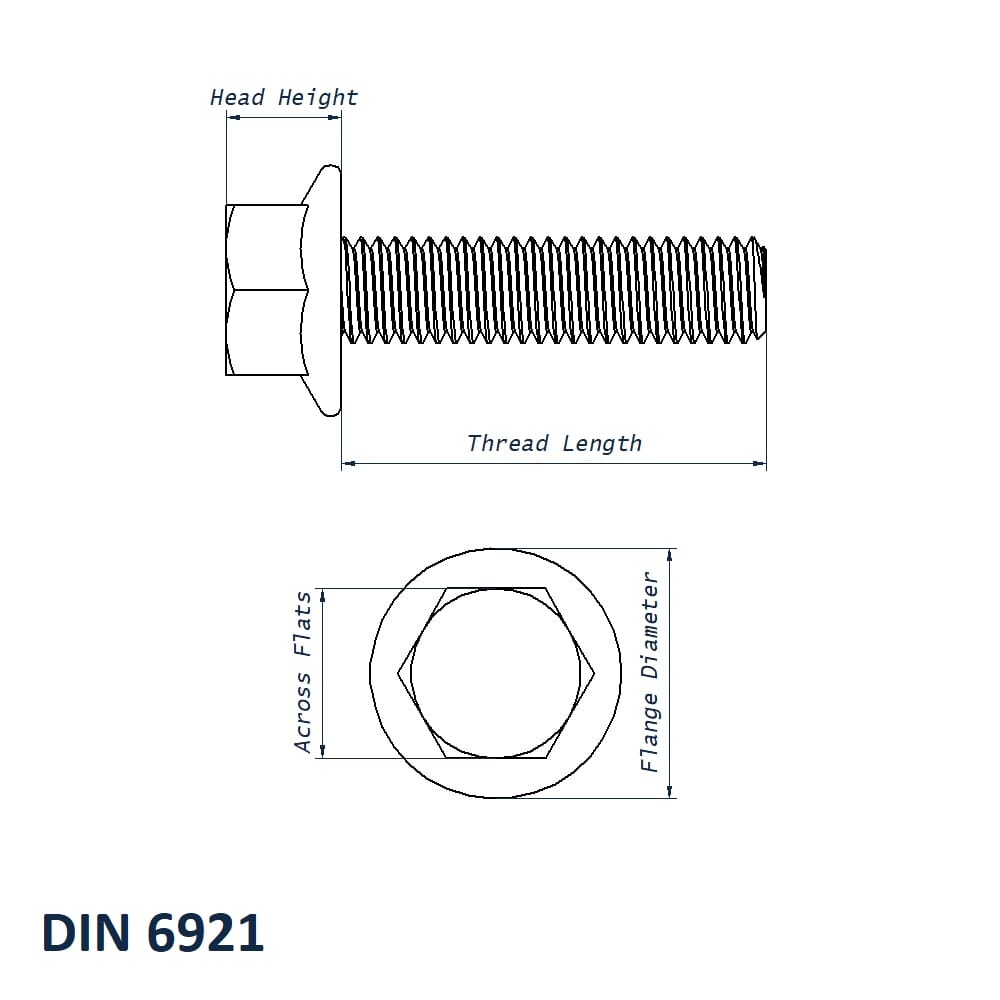

M5 x 10mm Flanged Hex Head Bolt Dimensions
- Thread Size: M5
- Thread Length: 10mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 5.4mm
- Flange Diameter: 11.8mm
- Material: A4-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Installation Advice
Select the material grade to suit the environment; A4 stainless is better for harsher exposure while BZP steel is best kept to dry or sheltered use. Tighten using the correct socket or spanner size and follow the required torque setting for the assembly.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
