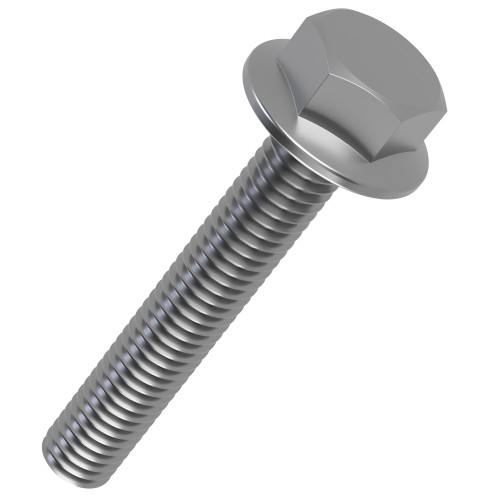

M5 x 12mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.33 | £0.40 |
| 10 - 24 | £0.27 | £0.32 |
| 25 - 49 | £0.20 | £0.24 |
| 50 - 99 | £0.17 | £0.20 |
| 100 - 499 | £0.15 | £0.18 |
| 500 - 999 | £0.13 | £0.16 |
| 1000 + | £0.10 | £0.12 |
Product Specification
| Thread Size | M5 |
| Thread Length | 12mm |
| Pitch | 0.8mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 5.4mm |
| Flange Diameter | 11.8mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 12mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
This M5 x 12mm flanged hex head bolt in A2-70 Stainless Steel is chosen for building workshop jigs, clamps and prototype fixtures. Manufactured to DIN 6921, it uses a 11.8mm flange diameter and 8mm across flats to give a practical hex driven fixing for workshop jigs.
The built-in washer face helps protect the surrounding surface, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The A2-70 Stainless Steel finish should be matched to the working environment before installation.
Common Applications
- Workshop Jigs: building workshop jigs, clamps and prototype fixtures.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: gives installers a stronger bearing face when tightening onto slotted parts.
- Trade Maintenance: supporting quick specification from thread size and length.

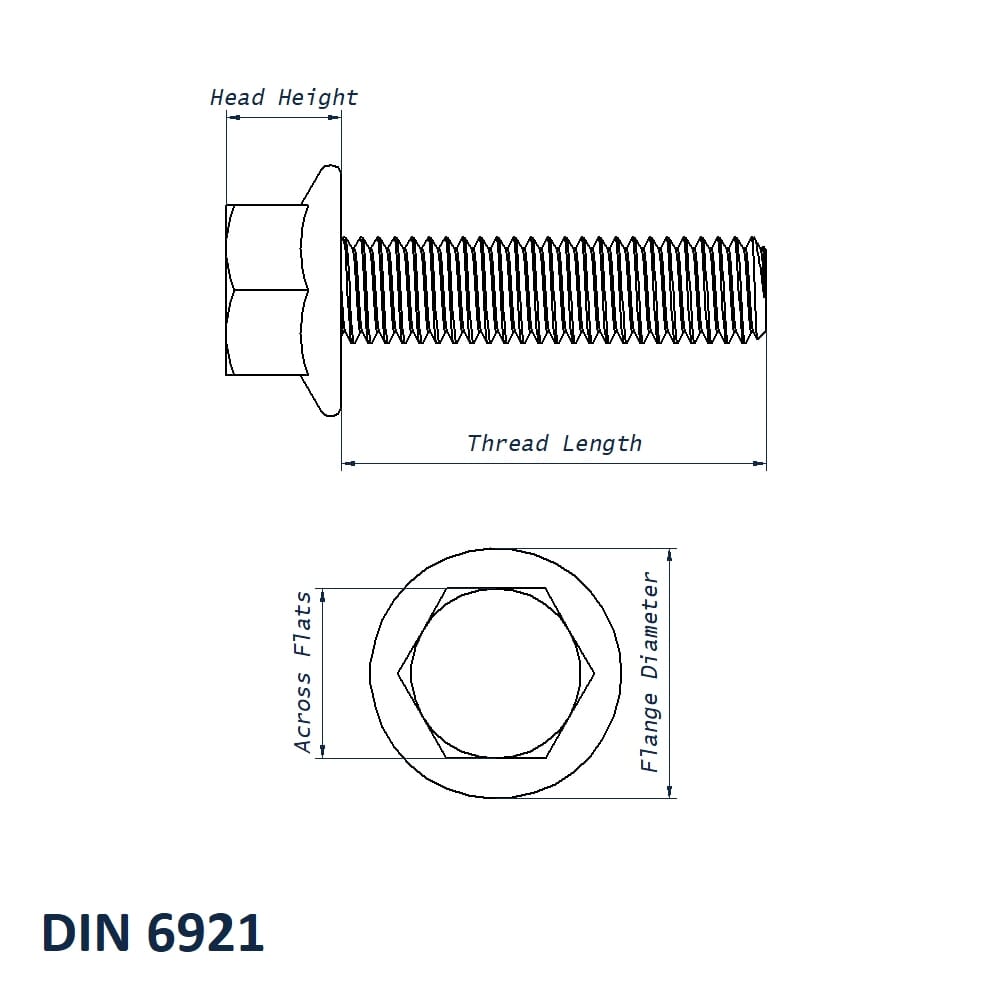

M5 x 12mm Flanged Hex Head Bolt Dimensions
- Thread Size: M5
- Thread Length: 12mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 5.4mm
- Flange Diameter: 11.8mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Buying Guidance
Confirm the flange diameter if the fixing surface is narrow, slotted or close to an edge. For matched fastening assemblies, also check the washer and nut material so the joint performs consistently in service.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
