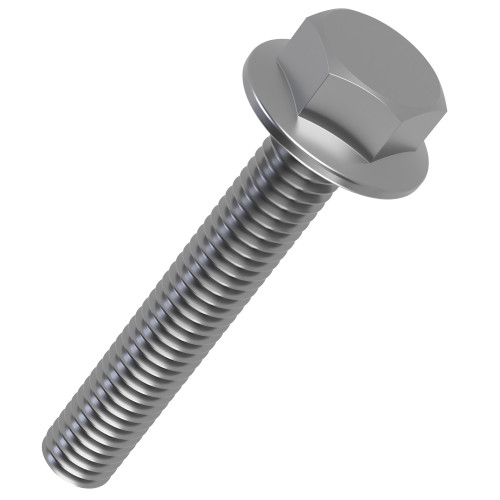

M5 x 16mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.38 | £0.45 |
| 10 - 24 | £0.30 | £0.36 |
| 25 - 49 | £0.23 | £0.27 |
| 50 - 99 | £0.18 | £0.22 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 + | £0.11 | £0.13 |
Product Specification
| Thread Size | M5 |
| Thread Length | 16mm |
| Pitch | 0.8mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 5.4mm |
| Flange Diameter | 11.8mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 16mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
For agricultural equipment, this M5 x 16mm flanged hex head bolt gives a tidy DIN 6921 fixing with a broad 11.8mm flange under the head. The A2-70 Stainless Steel construction offers strong stainless performance for general engineering and clean internal applications.
The integrated flange acts like a built-in washer face, helping to spread clamp load and reduce surface marking on brackets, plates or fabricated parts. The A2-70 stainless steel material gives 70 grade tensile performance while the DIN 6921 specification keeps the fastener compatible with standard metric assemblies.
Common Applications
- Agricultural Equipment: securing panels and guards on agricultural machinery.
- Machinery Builds: provides a durable fastening option for high movement mechanical assemblies.
- Maintenance Work: replacing worn fixings during planned servicing.
- Fabrication: creating repeatable DIN 6921 joints across metal assemblies.
M5 x 16mm Flanged Hex Head Bolt Dimensions
- Thread Size: M5
- Thread Length: 16mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 5.4mm
- Flange Diameter: 11.8mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Installation Advice
Choose stainless steel where corrosion resistance is more important than the lowest unit cost. Tighten using the correct socket or spanner size and follow the required torque setting for the assembly.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
